Category: Products

ONE J6412 – Entry-level PC for industry

The ONE J6412 is a mini PC from our entry-level series, the ONE series, which is equipped with a passively cooled Intel Celeron J6412 processor, 8GB RAM and a 128GB eMMC SSD. Thanks to the COM RS232 interface and passive cooling, it is particularly suitable for industrial control applications. With integrated WiFi and compact dimensions of 30 x 116 x 107 mm, it also offers four USB 3.2 ports, a DisplayPort 1.2, HDMI 2.0, Gigabit LAN and two audio ports.

Key data:

• CPU: Intel® Celeron J6412, 4x 2 GHz
• RAM: 8 GB DDR4
• Ambient conditions: -0°C to +40°C at 10-90% non-condensing humidity

Discover the ONE J6412



RUGGED Q470E – Robustness meets versatility

Our RUGGED Q470E is ideal for classic industrial applications as well as for Industry 4.0 and automation. With dimensions of 242 x 240 x 85 mm, the housing offers numerous interfaces that are important for industry, including 4 COM ports, 8 USB ports (4x 3.0 and 4x 3.1 Gen 2) and 8 Gigabit LAN ports. The PC also has two SIM card slots and two audio connections. In addition to the Q470E, other PCs in our RUGGED series shine with their refinements.

Key data:

• CPU: Intel® Core® i5-10500TE, 6x 2.3 GHz (up to 3.7 GHz)
• Integrated wall bracket
• 8x Gigabit LAN
• Wide Range Power Input 9 – 60V

Discover the RUGGED Q470E



BRICK J3455E – fanless and robust

The BRICK J3455E is a passively cooled industrial PC in a robust metal housing measuring just 155 x 200 x 55 mm. This, and the extended temperature range of -10°C to +55°C, makes it ideal for use in demanding environments. It offers 6 COM ports, 6x USB, 2 LAN ports, as well as DisplayPort and HDMI for connecting monitors and other devices.

Key data:

• CPU: Intel® Celeron J3455E, 4 x 1.5 GHz up to 2.3 GHz
• Serial interfaces: 4x COM RS-232, 2x COM RS-232/422/485
• Wall bracket included, DIN rail bracket optional

Discover the BRICK J3455E



BRICK i3 7100U – all-rounder for industrial applications

The BRICK i3 7100U is the more powerful of our two BRICK models with its Intel® Core i3 7100U CPU, it supports up to 16 GB DDR4 RAM and 4K resolution on two screens. With its powerful performance, it has a low power consumption of just 15 watts and its robust metal housing makes it ideal for harsh environments. It also boasts an extended temperature range of -10° to +55°C. Connection options include 6 USB ports, 6x COM and two LAN interfaces, as well as optional WLAN. The BRICK is the right solution for various industrial applications – whether machine control, data measurement or control cabinet.

Key data:

• CPU: Intel® Core i3 7100U, 2 x 2.40 GHz
• 4x USB 3.2, 2x USB 2.0
• Independent image output on 2 screens

Discover the BRICK i3 7100U



Discover the entire product range of spo-comm Mini-PCs

Would you like to find out more about our Mini PCs? Do not hesitate to contact us!

Fanless industrial control computer

The ONE J6412 combines the eponymous Intel® Celeron® J6412 processor with 8GB RAM and a 128GB eMMC SSD. In contrast to the two other ONE systems H610 and i5, the ONE J6412 is passively cooled and can therefore – and because of its COM RS232 interface – be used as a low-cost computer for industrial control.

Integrated WiFi and small dimensions

The ONE J6412 comes with a fanless housing measuring just 30 x 116 x 107 mm (H x W x D). In addition to the COM port already mentioned, the Mini-PC has four USB 3.2 ports, one DisplayPort 1.2 and one HDMI 2.0. A Gigabit LAN and two audio ports can also be found on the housing.

Like all spo-comm Mini-PCs, the ONE J6412 can also be equipped with an optional operating system. WiFi is already integrated here, as is a VESA mount.

Highlights and technical data at a glance:

•     CPU: Intel® Celeron J6412 (4x 2 GHz, max. 2.6 GHz)
•     GPU: Intel® UHD graphics
•     RAM: 8 GB DDR4
•     SSD: 128 GB eMMC
•     Max. Resolution: 4096×2304@60Hz (4K) on 2 screens
•     Dimensions (H x W x D): 30 mm x 116 mm x 107 mm
•     Passive cooling
•     Ambient conditions: -0°C to +40°C at 10-90% non-condensing humidity

Connectors:

•     4x USB 3.2
•     1x DisplayPort 1.2
•     1x HDMI 2.0
•     1x Gigabit LAN
•     1x COM RS232
•     2x audio port (MIC-IN, LINE-OUT)

Configure your ONE J6412

Compact multi-monitor PC

The heart of the ONE i5 is the Intel® Core™ i5-1235U CPU, which is paired with 16GB RAM and a 512GB NVMe SSD. The compact housing (24 mm x 240 mm x 174 mm) offers three HDMI 2.0 ports and one DisplayPort 1.4, which enable content to be played in a resolution of 7680×4320@60Hz (8K). This makes the ONE i5 the perfect PC for multi-monitor applications.

HDMI-In for streaming and other connections

Thanks to the HDMI-in port, the system is also ideal wherever incoming video signals are processed, for example for all streamers and creative people.

The ONE i5 has a variety of ports, including one Gigabit and one 2.5 Gbps LAN port, as well as six USB 2.0, two USB 3.2 and one USB 3.1 Type C port. There are also two audio ports, a Kensington lock and a SIM card slot on the casing. As usual with the spo-comm Mini-PCs, the ONE i5 can be optionally equipped with an operating system and WiFi.

Highlights and technical data at a glance:

•     CPU: Intel® Core™ i5-1235U (2x Performance Cores 1.3 GHz, max. 4.4 GHz and 8x Efficient Cores 0.9 GHz, max. 3.3 GHz)
•     GPU: Intel® UHD graphics
•     RAM: 16 GB DDR5
•     SSD: 512 GB M.2 NVMe
•     Max. Resolution: 7680 x 4320 @ 60Hz (8K)
•     Up to 4 independent screens
•     Dimensions (H x W x D): 24 mm x 240 mm x 174 mm
•     Active cooling
•     Ambient conditions: -0°C to +40°C at 10-90% non-condensing humidity

Connectors:

•     6x USB 2.0
•     2x USB 3.2 Gen 2×1
•     1x USB 3.1 Gen 2×1 Type C
•     1x DisplayPort 1.4
•     3x HDMI 2.0
•     1x HDMI-In
•     1x Gigabit LAN
•     1x 2.5 Gbps LAN
•     2x audio port (MIC-IN, LINE-OUT)
•     1x Kensington Lock
•     1x SIM card slot
•     WiFi optional

Configure your ONE i5

2x DisplayPort for 4K digital signage

The CORE 3 is perfect for use as a digital signage player in environments where space is at a premium. At the heart of the housing, measuring just 36mm x 147mm x 165mm (H x W x D), is a powerful Intel® Core® i3-N305 processor with 8 efficiency cores with max. speed. 3.8 GHz. This is supported by up to 32 GB of DDR5 RAM and up to 2 TB of M.2 NVMe SSD, as well as the integrated Intel® UHD graphics unit. Thanks to the 2 DisplayPort 1.4a ports (optionally an additional one via USB C), content can be displayed in a resolution of 4K @ 60 Hz on 3 screens simultaneously.

Optional COM port, 2x LAN and extended temperature range

But the new system is not only suitable for DS applications. Our CORE 3 also feels right at home in industrial environments, such as industrial control applications. This is ensured by the extended temperature range of 0°C to +60°C, two LAN ports (1x 2.5 Gbps) and a COM RS232/422/485 connection.

Thin client and a total of 6x USB

The super-compact mini PC offers various connections for different applications. In addition to two audio ports (1x MIC-IN and 1x LINE-OUT) and a USB 3.2 Gen1 on the front panel of the CORE 3, there are four more USB ports (2x 3.2 Gen2, 2x 3.2 Gen1) on the back. As usual with spo-comm PCs, the CORE 3 can also be optionally equipped with Windows 11 Professional, Windows 10 IoT and Ubuntu. There is also the option for WiFi. For this reason, the CORE can also be used as a thin client.

Highlights and technical data at a glance:

•     CPU: Intel® Core® i3-N305 (8x Efficiency Core max. 3.8 GHz)
•     GPU: Intel® UHD graphics
•     RAM: up to 32 GB DDR5
•     SSD: up to 2TB M.2 NVMe
•     Max. Resolution: 4K @ 60Hz on 3 screens
•     Dimensions (H x W x D): 36mm x 147mm x 165mm
•     Ambient conditions: -0°C to +60°C at 10-90% non-condensing humidity

Connectors:

•     2x USB 3.2 Gen 2, 3x USB 3.2, 1x USB 3.2 Gen1 Type-C
•     2x DisplayPort 1.4a, 1x optional via USB Type C
•     1x Line-Out, 1x Mic-In
•     1x Gigabit LAN
•     1x 2.5 Gbps LAN
•     1x COM RS232/422/485
•     WiFi optional

Configure your CORE 3

It happened at a time in the spring of 2022…

… when Alex, one of our production employees, contacts CEO Michael Sporrer with a request. Both Alex and three of our other employees work as team leaders for the “High Octane Motorsports” club and were looking for sponsors for their latest project. The pitch of the project aroused inspiration and curiosity in the ranks of the company. Finally, Michael decided to sponsor a KUMO VI for the Octanes and the journey began.

More about the Octanes



The KUMO VI is on its way

Arriving at the Octanes in Erlangen, our KUMO embarks on a special journey. In the 22/23 season race car, our digital signage PC is responsible for supporting autonomous driving.

The KUMO is installed in the chassis behind the driver’s seat. A few changes had to be made so that it could be installed in this position and also make the best possible use of its performance. As the regulations require all calculations to take place in the vehicle, a new housing was produced for the KUMO VI, which must be waterproof and at the same time ensure good cooling. Among other things, the entire vehicle is subjected to a so-called “rain test”, which ensures that the sensitive innards in the vehicle remain dry even when used in pouring rain. The PC must also be secured in such a way that it remains in place despite the acceleration and centrifugal forces.



Ready, Set, Go – rollout in May 2023

At the beginning of May last year, the time had come – the rollout of the racing car was completed. Our trainees Patricia and Maxim had the honor of attending the event and watching the presentation of the FAUmax Pi. During the presentation, many exciting facts and sub-projects of the car were explained, as well as difficulties during production.

Finally, there was the opportunity to take a closer look at the FAUmax Pi, take pictures and, above all, ask questions. Here, our trainees had everything explained to them in detail by the team members who also work at spo-comm.



How will the journey continue?

The Octanes were at three events with their “Pi” in 2023 and, despite a few setbacks, were able to win some awards for their car. The Octanes were able to score points with creative refinements in the technical acceptance tests and some strengths were demonstrated. Driving did not go as planned at the beginning and there were a few obstacles along the way, but the team was able to develop their vehicle well over the course of the season.

As our employees are still active in the club and are interested in Formula Student, we remain in close contact and are always up to date with the latest news about the Octanes and our KUMO VI.  We have already been informed that our PC will also be used again in the new racing car for the 23/24 season. We are very excited to see what will change and how the journey will continue.

We would like to thank Alex for the great cooperation with the Octanes, which has always worked flawlessly, and we are looking forward to the Octanes’ upcoming season.



Discover our KUMO VI

Industrial-grade PC with customizable CPU

Both Panel PCs are equipped with an Intel® Celeron® 6305E CPU as standard, which can optionally be replaced by a more powerful Intel® Core™ i3-1115G4E processor. The CPU is supported by up to 32GB DDR4 RAM and an NVMe M.2 SSD with a capacity of up to 2TB supported. Thanks to the temperature range of 0°C to +50°C, a display with IP65 certification and a robust, passively cooled metal housing, the SQUARE 18 and SQUARE 21 undoubtedly deserve to be called industrial PCs.

2x DisplayPort for 8K resolution and LCD display

The highlight of the SQUARE models is the eponymous 10-point multi-touch LCD display. The 18.5″ version has a resolution of 1366 x 768 (WXGA) and the 21.5″ version has a resolution of 1920 x 1080 (FullHD). Thanks to the integrated Intel® UHD graphics unit and two DisplayPort 1.4 connections, two screens can be controlled, allowing content to be displayed in a resolution of 7680 x 4320 @ 60Hz – i.e. 8K.

Optional equipment and connections for the point of sale (PoS)

As is usual with our industrial PCs, the SQUARE 18 and 21 can also be optionally equipped with Windows 11 Professional and Windows 10 IoT. There is also the option of WiFi.

The Panel PCs have a variety of connections, including one Gigabit and one 2.5 Gbps LAN port, as well as four USB 3.2 Gen 2×1 ports and two COM RS232/422/485 ports. The latter enable the connection of external peripheral devices and thus also use at the point of sale.

Highlights and technical data at a glance:

•     CPU: Intel® Celeron® 6305E / Intel® Core™ i3-1115G4E
•     GPU: Intel® UHD graphics
•     RAM: up to 32 GB DDR4
•     SSD: up to 2TB M.2 NVMe
•     Max. Resolution: 7680 x 4320 @ 60Hz (8K) on 2 screens
•     SQUARE 18 Dimensions (H x W x D): 286.3mm x 465.2mm x 67.5mm
•     SQUARE 18: 18.5″ 10-point multi-touch LCD display, resolution 1366 x 768
•     SQUARE 21 Dimensions (H x W x D): 315.5 mm x 520.5 mm x 67.9 mm
•     SQUARE 21: 21.5″ 10-point multi-touch LCD display, resolution 1920 x 1080
•     IP65 (front) certified
•     Ambient conditions: -0°C to +50°C at 10-90% non-condensing humidity



Connectors:

•     4x USB 3.2 Gen 2×1
•     2x DisplayPort 1.4
•     1x Gigabit LAN
•     1x 2.5 Gbps LAN
•     2x COM RS232 / 422 / 485
•     WiFi optional

Configure your SQUARE 18

Configure your SQUARE 21

Tablet PCs – what’s special?

Tablet PCs are particularly characterized by their flexibility, as they can be used in a wide range of applications. From industry and retail to logistics, to keep an eye on stock levels at all times. Tablet PCs are also ideal for outdoor applications. For example, for documentation on a construction site, in agriculture to record field information or in the field service to retrieve customer information or similar. The tablets are not only powerful application devices, but can also be flexibly configured with accessories such as a docking station for power supply, data transfer, desktop expansion or multimedia use. The replacement battery is perfect for guaranteeing continuous use even when away from home, for example. An integrated barcode scanner is ideal for recording serial numbers in stock.

The spo-comm product portfolio has also included a tablet, the RUGGED Tab 10, for a few weeks now.

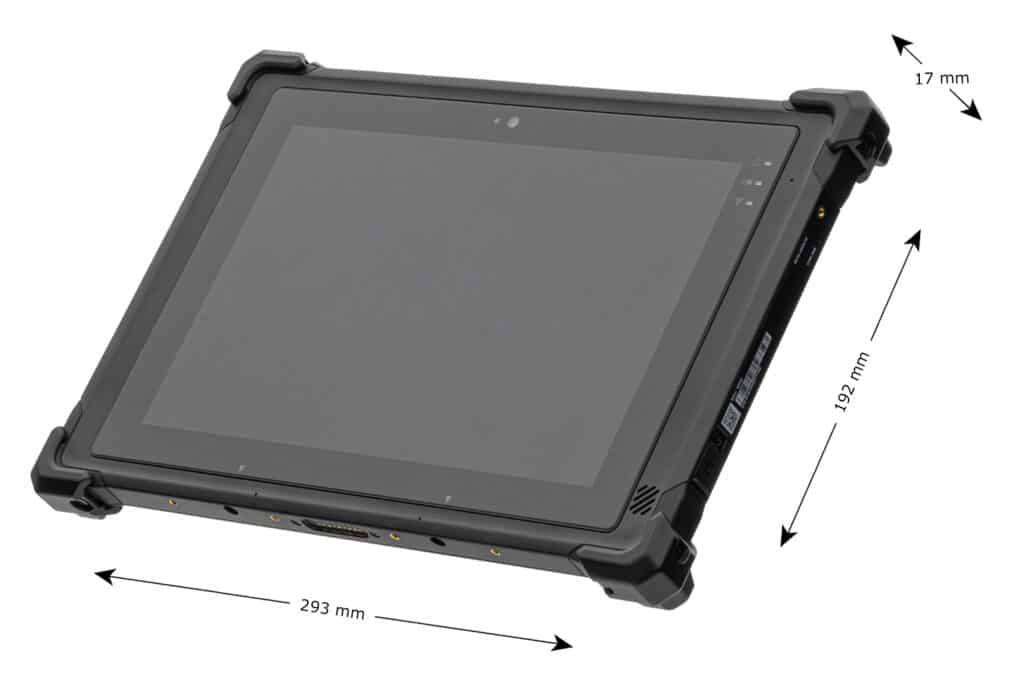

Tablet PCs from spo-comm – the RUGGED Tab 10

We have expanded and enriched our product portfolio with the new RUGGED Tab 10 tablet PC. The tablet is equipped with an Intel® Celeron® N5100 processor, 8GB RAM and an onboard 128 GB eMMC SSD and offers Intel® UHD Graphics for optimal graphics. The tablet is offered with Windows 10 IoT Enterprise 2021 LTSC Entry or Windows 11 Professional 64-bit. It is also equipped with various accessories, such as a backup battery, a 2D barcode scanner, a vehicle holder and much more.



Further key data:

• Extended temperature range: -20°C up to +60°C
• 1x USB 3.0, 1x USB 3.1, 1x Gigabit LAN
• IP 65
• MIL-STD-810G certification
• Dimensions: 270 x 23 x 189 mm



Have we aroused your interest?



Discover the RUGGED Tab 10

Industrial tablet with extended temperature range

With an integrated Intel® Celeron® N5100 processor with up to 2.8 GHz and up to 8GB RAM, as well as a 128GB SSD, the tablet is already well equipped. Thanks to the possible ambient conditions of -20°C to +60°C, the RUGGED Tab performs perfectly. Thanks to its fanless housing with dimensions of 270 x 23 x 189 mm and IP65, as well as MIL-STD-810G certification, it is also perfectly suited for production halls where dust or moisture are the order of the day.

8MP camera and connectivity

Our new addition is equipped with a selection of the most important connections. In addition to a USB 3.0 and a USB 3.1 interface, the tablet also has an HDMI 1.4a port with a possible resolution of 3840 x 2160 @ 30Hz – i.e. 4K. The display size of 10.1″ explains the name of our RUGGED Tab, which has a resolution of 1920×1200 pixels. It also boasts a SIM card slot, a Gigabit LAN interface, a line-in connection and a microSD card slot. The tablet has a front camera with 5MP and a rear camera with 8MP.

Docking station, vehicle mount and barcode scanner

Depending on the area of application, the RUGGED Tab 10 is perfectly equipped with the comparatively large selection of accessories. If the tablet is in use for a longer period of time and not near the charging station, an additional backup battery with a maximum runtime of 6 hours can be purchased here. An optional 2D barcode scanner is available for the retail or logistics sector. In addition to the docking station, which can also be purchased as an accessory, a vehicle mount is also available if the industrial tablet is being used on construction sites or in a forklift truck, for example.

Optional operating system and WiFi

The RUGGED Tab 10 can optionally be equipped with Windows 11 Professional or Windows 10 IoT. WiFi is already integrated.


Highlights and technical data at a glance:

• CPU: Intel® Celeron® N5100, 4x 1.1 GHz (up to 2.8 GHz)
• GPU: Intel® UHD graphics
• RAM: 8 GB DDR4
• SSD: 128 GB
• Max. Resolution: 3840 x 2160 @ 30Hz (4K)
• Dimensions (W x D x H): 275 x 23 x 189 mm
• 10.1″ IPS screen, resolution 1920×1200
• IP65 and MIL-STD-810G certified
• Battery life: 6 hours at 50% volume, 200 lumens brightness, and 1080P HD video by default
• Ambient conditions: -20°C up to +60°C at 10-90% non-condensing humidity



Connectors:

• 1x USB 3.0
• 1x USB 3.1
• 1x HDMI 1.4a
• 1x Gigabit LAN
• 1x audio connection (line-in)
• 1x SIM card slot
• 1x microSD
• Integrated WiFi and LTE



Configure your RUGGED TAB 10

Power-saving industrial PC with 10 watt TDP

The BOX J6412 is equipped with a powerful Intel® Celeron® J6412 processor with up to 2.6 GHz on 4 cores. With support for up to 32GB RAM and an NVMe SSD of up to 2TB, even demanding applications can be mastered. Despite its high performance, the Mini-PC is extremely energy-efficient and has a TDP of just 10 watts. Thanks to the fanless housing and a temperature range of 0°C to +50°C, the system can also be used in dusty, damp or hot environments, such as production halls or in industry in general.

4K digital signage player

The Intel® Celeron® CPU comes with an integrated Intel® UHD graphics unit, which also enables digital signage applications. The two HDMI 2.0 ports on the back of the housing allow content to be played on up to two screens simultaneously. Naturally in a resolution of 4096×2160 @ 60Hz (4K).

Small housing, large variety of connections

The main criterion for being allowed to call yourself a “BOX” is to have very small dimensions. With dimensions of just 118 x 109 x 44 mm (W x D x H) – which corresponds to a volume of just 0.9 liters – the BOX J6412 certainly meets this requirement.  Nevertheless, the housing has enough space for the most important interfaces. The power button, the audio connection (line-out), the COM RS232 and two of the four USB 3.2 Gen 2×1 ports are located on the front. The other two USB 3.2 ports, two Gigabit LAN ports and the two HDMI 2.0 ports are located on the back panel. Switching from the predecessor J4125 to the latest model is also child’s play thanks to exactly the same dimensions.

Optional operating system and WiFi

The BOX J6412 has not only been upgraded in terms of CPU, but also in terms of the optional operating systems: On the one hand, the system can be equipped with Windows 11. Windows 10 IoT and Linux Ubuntu version 22.04.2 can also be installed. The option to expand the system with WiFi is also available here. There are 2 antenna connections on the housing for this purpose. A wall bracket is already included.

Highlights and technical data at a glance:

•     CPU: Intel® Celeron® J6412, 4x 2 GHz (up to 2.6 GHz)
•     GPU: Intel® UHD graphics
•     RAM: up to 32 GB DDR4
•     1x SSD: up to 2 TB NVMe
•     Max. Resolution: 4096×2160 @ 60Hz (4K) on 2 screens
•     Dimensions (W x D x H): 118 x 109 x 44 mm, including wall bracket
•     Ambient conditions: 0°C to +50°C at 10-90% non-condensing humidity

Connectors:

•     4x USB 3.2 Gen 2×1
•     2x HDMI 2.0
•     1x COM RS232
•     2x Gigabit LAN
•     1x audio connection (LINE-OUT)
•     WiFi optional

Configure the BOX J6412

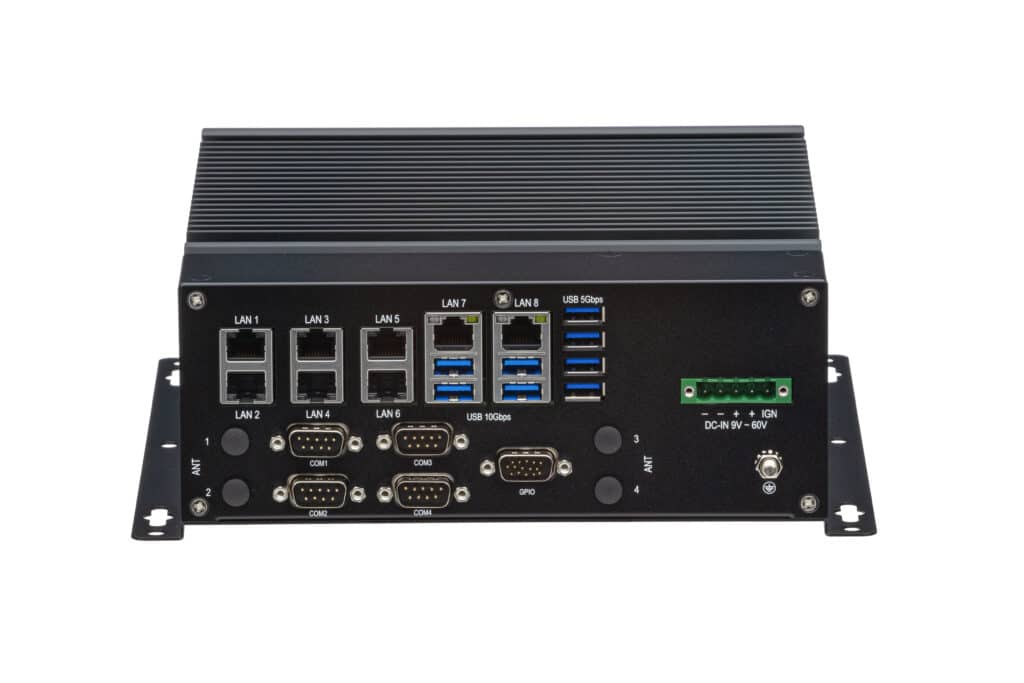

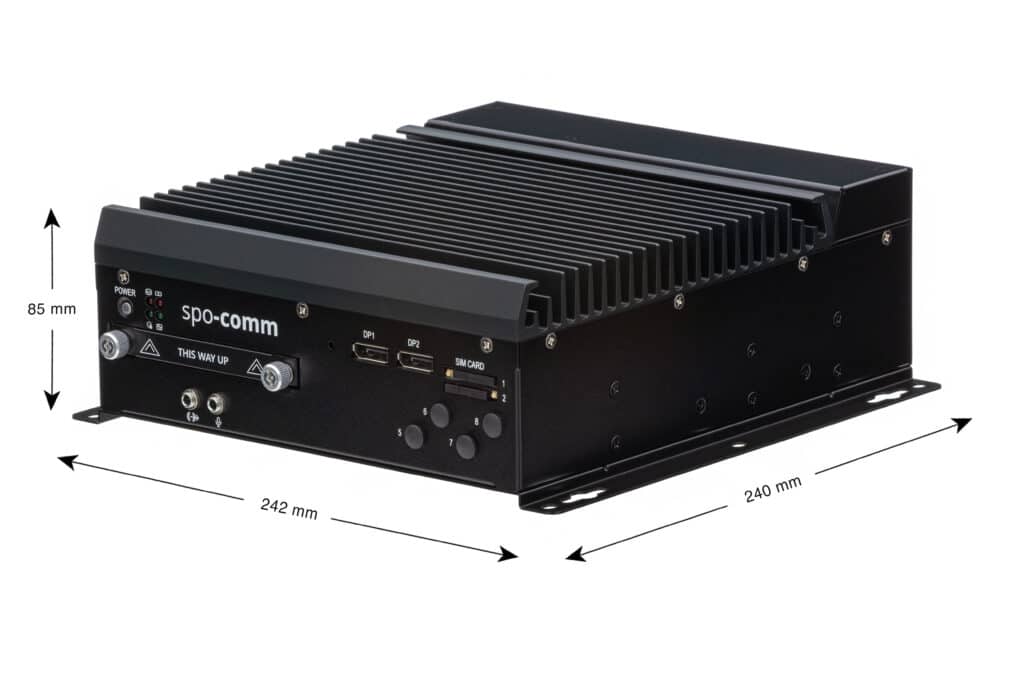

Outdoor digital signage and surveillance

In addition to an integrated Intel® Core® i5-10500TE CPU with up to 3.7 GHz on 6 cores, the RUGGED Q470E can be equipped with up to 64GB RAM and up to 2TB mass storage. The CPU also includes the Intel® UHD 630 graphics unit and two DisplayPort 1.2. This allows content to be played on two screens simultaneously in 4K resolution. Thanks to the extended temperature range of -40°C to +70°C, even under adverse outdoor conditions. The optional PoE module also enables applications in the surveillance sector.

Vehicle PC thanks to Wide Range Power Input

Our RUGGED models are characterized above all by one thing: their robustness. This includes fanless cooling, which enables the system to function perfectly and smoothly even in dusty or damp conditions. The RUGGED Q470E also has a wide range power input from 9V to 60V and an optional battery pack. It is also tested in accordance with the military standard MIL-STD-810G and can therefore withstand 15G for 11ms. All these features give this PC the title of a perfect vehicle PC.

4x COM, 8x USB and 8x Gigabit LAN

The RUGGED Q470E is ideal for classic industrial applications as well as for Industry 4.0 and automation. The housing with its impressive dimensions of 242 x 240 x 85 mm (W x D x H) contains a number of interfaces that are important for the industry. In addition to 4 COM ports (RS 232/422/485) and a total of 8 USB ports (4x 3.0 and 4x 3.1 Gen 2), the PC also has 8 Gigabit LAN ports. There are also two SIM card slots and two audio connections.

Optional operating system, WiFi and PoE

It’s not just the operating system that can be selected for this spo-comm Mini-PC. Here you have the choice between Windows 11 Pro, Windows 10 in the IoT version and Linux Ubuntu. Optionally, you can also add WLAN, a 4G or 5G module and, of course, the 8x PoE extension. A wall bracket is already included.

Highlights and technical data at a glance:

•     CPU: Intel® Core® i5-10500TE, 6x 2.3 GHz (up to 3.7 GHz)
•     Max. Resolution: 4096 x 2340 @ 60Hz (4K) on 2 screens
•     Dimensions (W x D x H): 242 x 240 x 85 mm
•     Integrated wall bracket
•     Ambient conditions: -40°C to +70°C at 10-90% non-condensing humidity

Connectors:

•     4x USB 3.0, 4x USB 3.1 Gen 2
•     2x DisplayPort 1.2
•     4x COM RS232/422/485
•     8x Gigabit LAN
•     2x audio connection (MIC-IN and LINE-OUT)
•     2x SIM card slot
•     Wide Range Power Input 9V – 60V
•     WiFi optional

Configure the RUGGED Q470E
