Despite its active cooling, the tablet has an extended temperature range of -20ยฐC to +60ยฐC and is dust and waterproof to IP65. The integrated bridge battery ensures that the time is bridged when the battery is changed and uninterrupted work is possible.
The RUGGED Tab 10 i5 Entry is already equipped with Wi-Fi and can be upgraded with either Windows 11 Pro or Windows 10 IoT. The display has a size of 10.1″ with a resolution of 1920×1200 pixels.

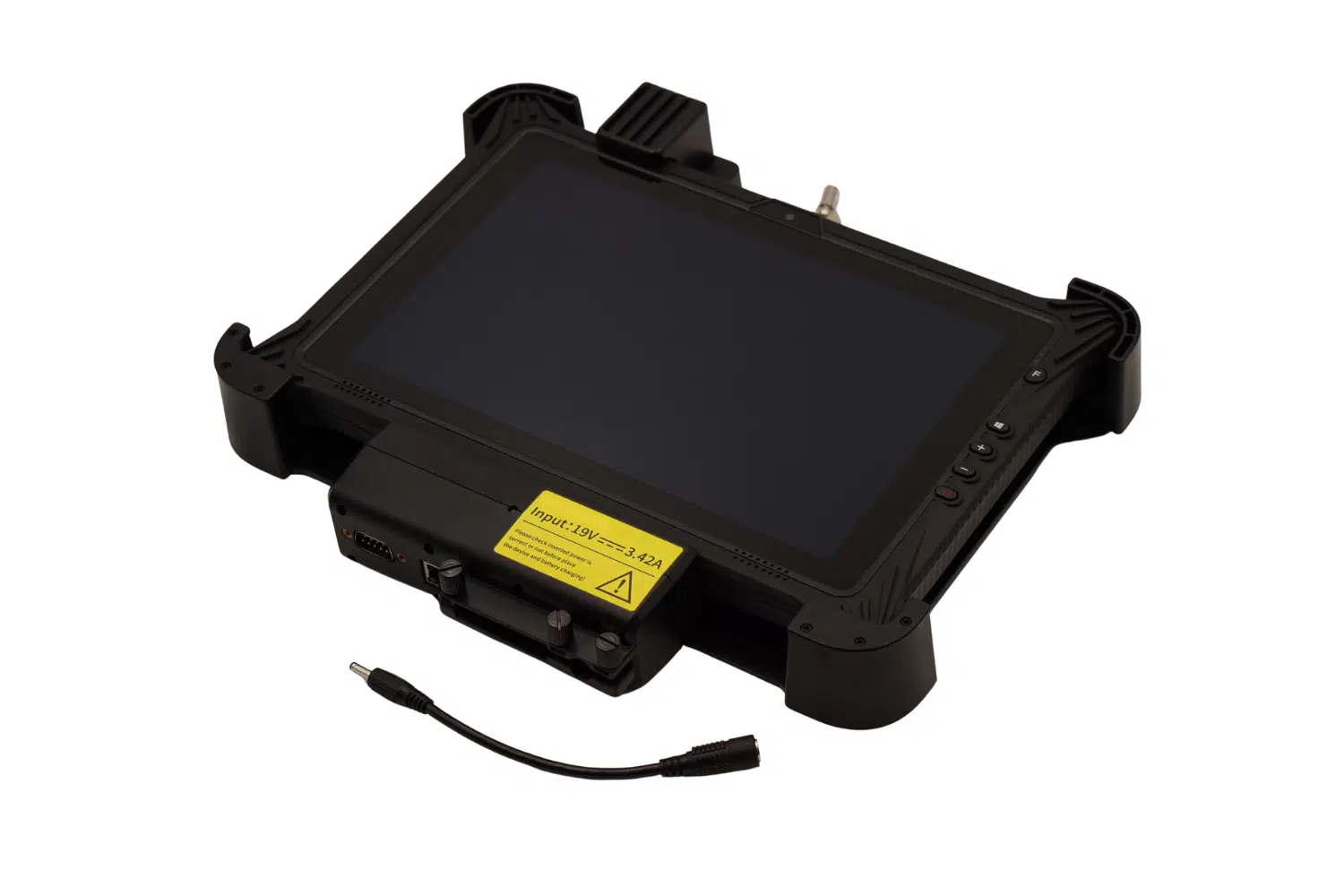

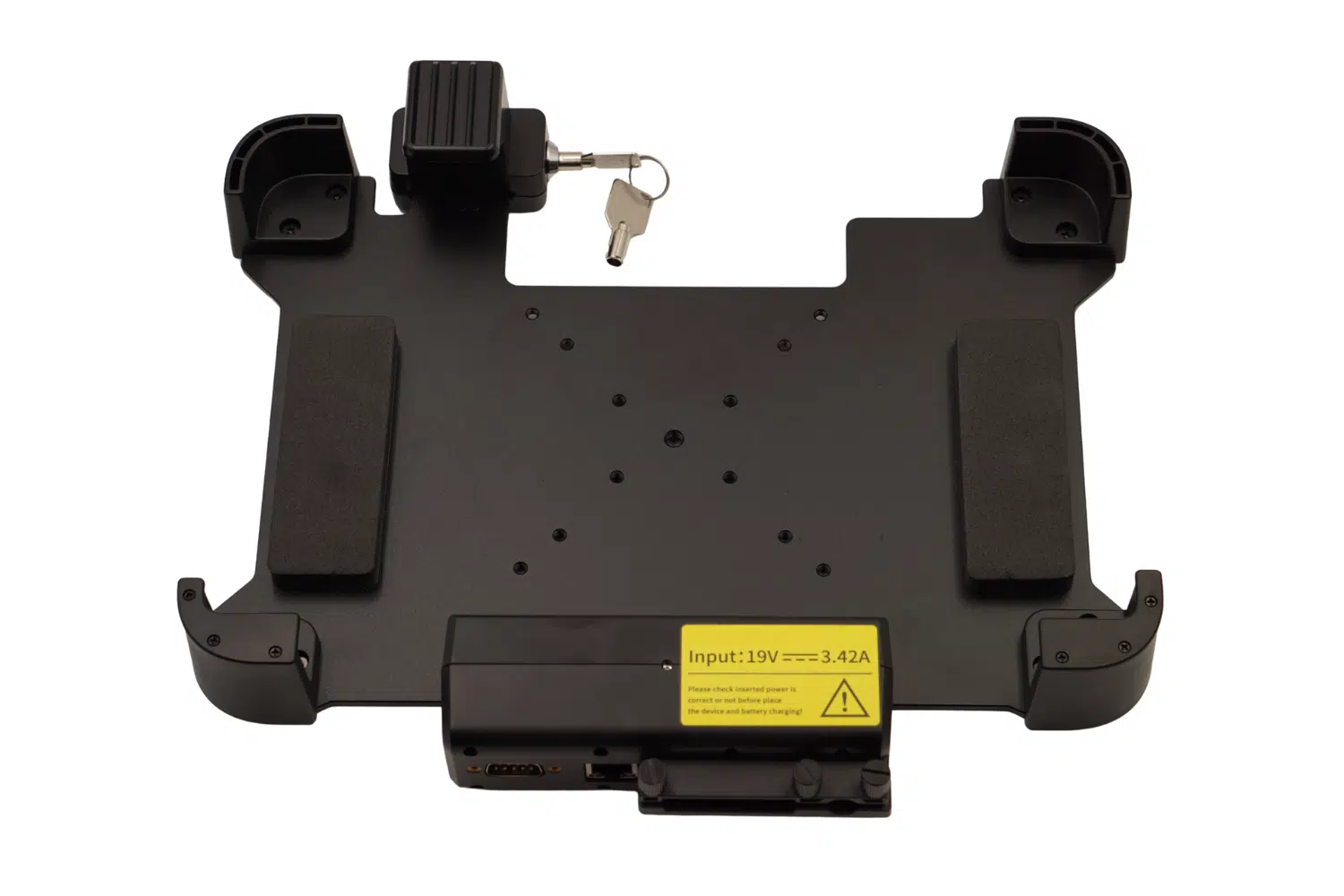

A RUGGED tablet offers a wide range of applications in a wide variety of areas. In vehicles, it can be supplied with power directly via 12/24 V and, thanks to a practical vehicle mount and passive cooling, is ideal for use in excavators or other construction machinery. In logistics, the robust handheld device with QR code scanner and user-friendly touchscreen facilitates the efficient handling of tasks such as storage and retrieval or stocktaking. The tablet is also impressive in outdoor use, for example on the golf course: it enables remote monitoring and mobile management so that resources such as course usage or vehicle movements can be optimized in real time. In civil engineering, the RUGGED tablet makes it possible to monitor project progress directly on site and efficiently organize both the project process and information management.
System | |
---|---|
CPU | Intelยฎ Coreโข i5-1235U |
GPU | Intelยฎ UHD Graphics |
RAM | Onboard 16GB DDR4 Low Power |
SSD / HDD | Onboard 128 GB SATA m.2 SSD |
ย
I/Os | |
---|---|
Front | 1 x PowerButton |
Back | 1 x USB 3.2 Gen 1×1
1 x LINE-Out 1 x microSD-Card Slot 1 x SIM-Card Slot 1 x mini HDMI 2.1a |
ย
Extensions | |
---|---|
WiFi | Intelยฎ WiFi 6 AX200 |
Bluetooth | Bluetooth 5.1 |
4G module | MEIG SLM750 |
GPS module | uBlox NEO-7M-0-000 |
ย
Environment / Mass | |
---|---|
Dimensions (W x D x H) | 196 mm x 289 mm x 27 mm |
Ambient conditions (operation) | -20ยฐC to +60ยฐC |
Cooling | active |
Idle power consumption in W | 15 |
ย
Display | |
---|---|
Size (inch) | 10.1 |
Resolution | 1920 x 1200 (WUXGA) // 16:10 |
Viewing angle (L,R,H,L) | 85ยฐ / 85ยฐ / 85ยฐ / 85ยฐ |
Brightness (cd/mยฒ) | 700 |
Panel type / Backlight | IPS / LCD |
Further information | 10-point multi-touch |
ย
Miscellaneous | |
---|---|
Operating system | Windows 10 / 11 |
Battery capacity | 5000 mAh / 7.6V |
PSU | 19V / 3.42A |
Standards & Certificates | CE
IP65 Waterproof and Dustproof Anti-Static Vibration & 1.22m drop resistant MIL-STD-810G certified |
Class A warning | The device is intended for use in industrial environments. Operation of this device may cause radio interference in residential areas. |
Warning for 802.11a use | If you want to use the WLAN module according to 802.11a in the 5 GHz range: Use in the 5150 MHz – 5350 MHz frequency range is only permitted indoors! |
The RUGGED Tab 10 i5 with its many accessory options is the perfect companion for demanding software and applications. The system thus completes the spo-comm industrial tablet range in the high-end se...
