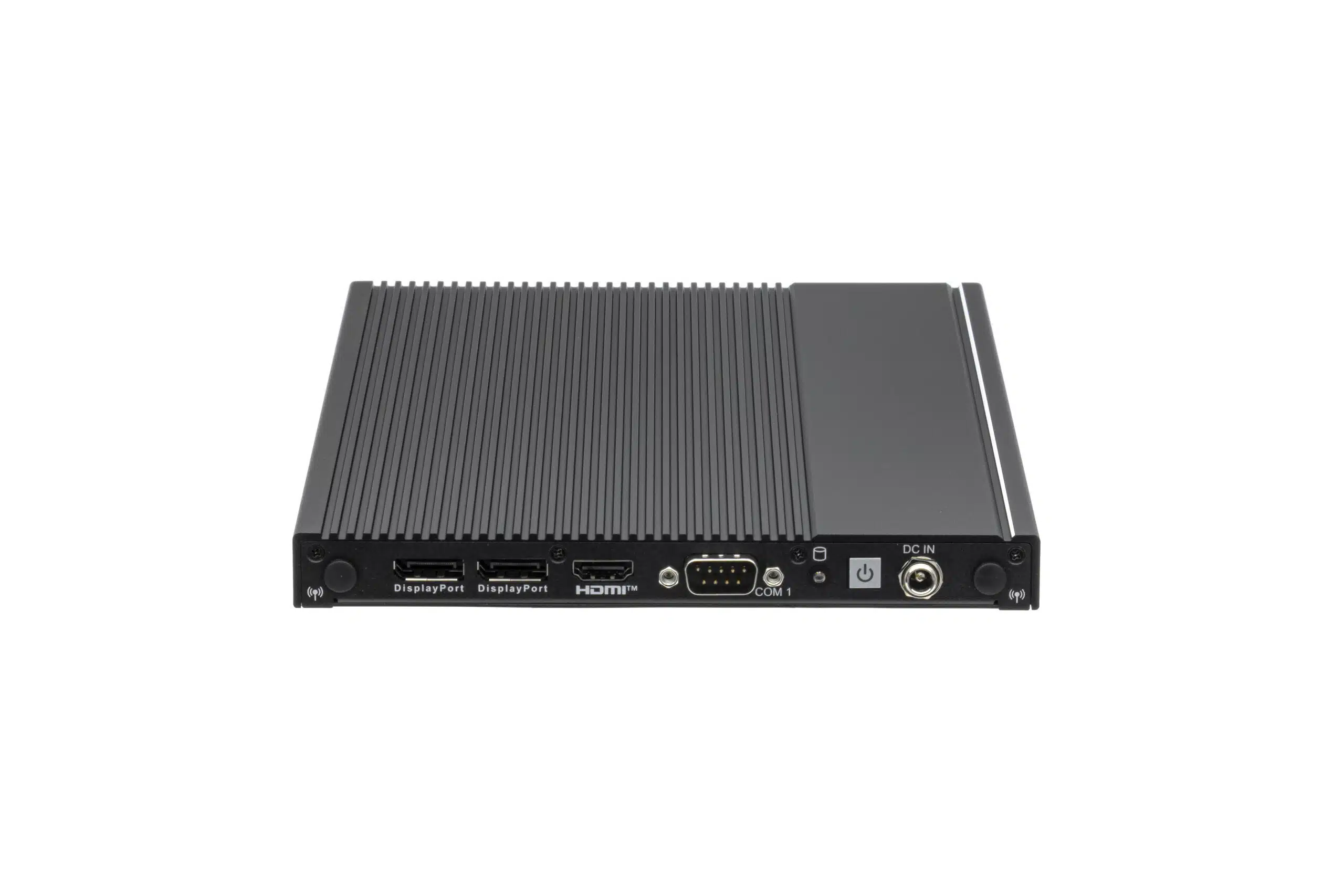

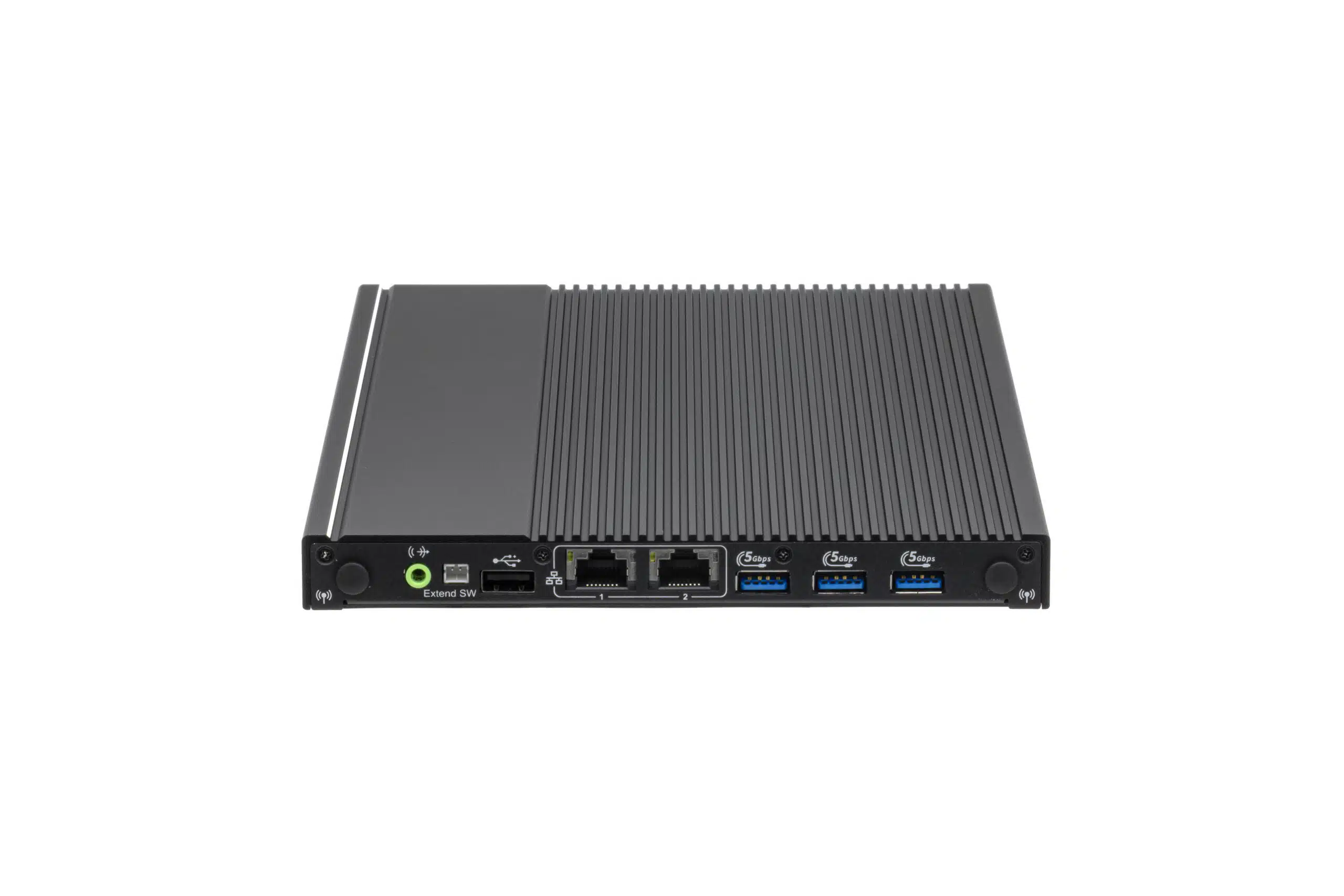

WINDBOX II NX - Ultra-flat industrial PC

Compact industrial PC for multi-monitoring and edge applications

  • Intel® N150 processor, 4 cores with up to 3.6 GHz
  • Triple display support for up to 3x 4K displays
  • 2x 2.5 GbE LAN for fast network connection
  • Ultra-flat, fanless design (only 19 mm high)
Configure now
Download data sheet
WINDBOX II NX fanless embedded system for reliable industrial applications and continuous operation.
Robust WINDBOX II NX industrial box PC for stable performance in demanding technical applications.
WINDBOX II NX Embedded PC for highly reliable applications in control and data processing systems.
Compact WINDBOX II NX industrial computer for edge computing and flexible integration into technical systems.
WINDBOX II NX industrial system with passive cooling for low-maintenance and noiseless continuous operation.
TDP

Low power consumption

12 Watt TDP

Industrie-PC

Industrial PC

Ultra-flat and robust

luefterlos

Fanless PC

Passively cooled and noiseless

Configure your system

Select the components for your individual requirements

Your configuration

Request a test position
  • Auf Lager
  • 1-3 working days

Highlights at a glance

  • Processor

Intel® N150 CPU (up to 4x 3.6 GHz)
For energy-efficient 24/7 operation (6W TDP)
Powerful for edge computing and industry
Ideal for digital signage, IoT and embedded

  • Memory

1x SO-DDR5 RAM (max. 16 GB)
1x M.2 SATA SSD and
1x 2.5″ SATA3 SSD/HDD

4G module only with 2.5″ SATA SSD

  • Network

2x 2.5 GbE LAN (RJ45)
Optional 4G module
Optional WiFi & Bluetooth

  • Graphics & Display

Integrated Intel® Graphics
Up to 4K @ 60Hz video resolution
Triple display support (1x HDMI 2.0, 2x DP 1.4)
Ideal for digital signage and kiosk systems

  • Connections

1x USB 2.0, 3x USB 3.2 Gen 1×1 port
1x COM RS232/422/485 for industrial communication

2x 2.5 Gbps LAN interfaces

Further I/O: SIM slot, line-out

  • Industry standard

Robust fanless industrial housing
Shock and vibration resistant in accordance with IEC 60068-2
Extended temperature range: -10°C to +50°C

Operation via 19V power supply unit (DC-In)

  • Special features

Extremely flat design (255 x 180 x 19 mm)

Robust for continuous use in harsh environments

VESA and wall mounting for flexible installation

Download data sheet

Frequently asked questions

For which areas of application is the WINDBOX II NX suitable?

The WINDBOX II NX is ideal for digital signage, industrial control, kiosk systems and edge computing. Its compact design and powerful connectivity make it highly versatile.


How many displays can be operated simultaneously?

Up to three displays can be operated simultaneously (2x DisplayPort + 1x HDMI 2.0) – perfect for multi-monitor applications.


Is the industrial PC suitable for continuous operation?

Yes, the fanless design, the watchdog timer and the robust housing make the system ideal for 24/7 use in industrial environments.


What expansion options are there?

5G/LTE, WiFi and Bluetooth can be integrated via M.2 slots. A 2.5″ SATA slot is also available for storage expansions.


Discuss project now

Are you planning an industrial, automation or AI project and looking for a reliable industrial PC? Let’s work together to find the optimal solution for your requirements.
Receive offer
Download data sheet
  • Free advice
  • Individual solutions
  • Quick answer

You might also be interested in

Discover more Industrial PC solutions for various applications

QUADRO P1000

QUADRO P1000

  • Intel® Core™ i5-7300U, 2 x 2.6 GHz
  • Digital signage PC
  • 4 independent screens (HDMI)
  • 3x USB, 1x COM, 2x LAN
Learn more
WINDBOX III Ultra

WINDBOX III Ultra

  • Intel® Core™ i5-1335UE
  • Fanless all-rounder PC
  • Up to 4 independent displays
  • 5x USB, 2x COM, 2x LAN
Learn more
BOX J6412

BOX J6412

  • Intel® Celeron® J6412, 4x 2 GHz
  • Industrial PC & Digital Signage
  • Ultra-compact design
  • 2x LAN, 4x USB 3.2, 2x HDMI 2.0
Learn more

Ultra-flat industrial PC for digital signage, edge computing and automation

The WINDBOX II NX is an ultra-compact and fanless industrial PC that has been specially developed for demanding applications in the fields of digital signage, industrial automation, kiosk systems and edge computing. Equipped with an Intel® N150 processor, the system impresses with its high energy efficiency and reliable performance in 24/7 continuous operation. The housing, which is only 19 mm flat, enables particularly space-saving integration – for example behind displays or in compact industrial environments.
12 WATT POWER CONSUMPTION IDLE
FANLESS
INDUSTRY PC
With triple display support (2x DisplayPort 1.4 + 1x HDMI 2.0), up to three independent displays can be operated in 4K resolution – ideal for modern digital signage installations or control rooms. At the same time, the WINDBOX II NX offers important industrial features such as RS232/422/485 COM port, watchdog timer and a shock and vibration-resistant design. Modern connectivity is provided…
