WINDBOX III Core - Flat all-rounder PC with Intel U processor

High-performance fanless industrial PC for edge computing & multi-display

  • Intel® Core™ 5 processor of the Raptor Lake-P Refresh generation
  • Up to 96 GB DDR5 RAM for demanding applications
  • Quad display support for up to 4 independent screens
  • Fanless industrial design with dual 2.5 GbE LAN
Configure now
Download data sheet

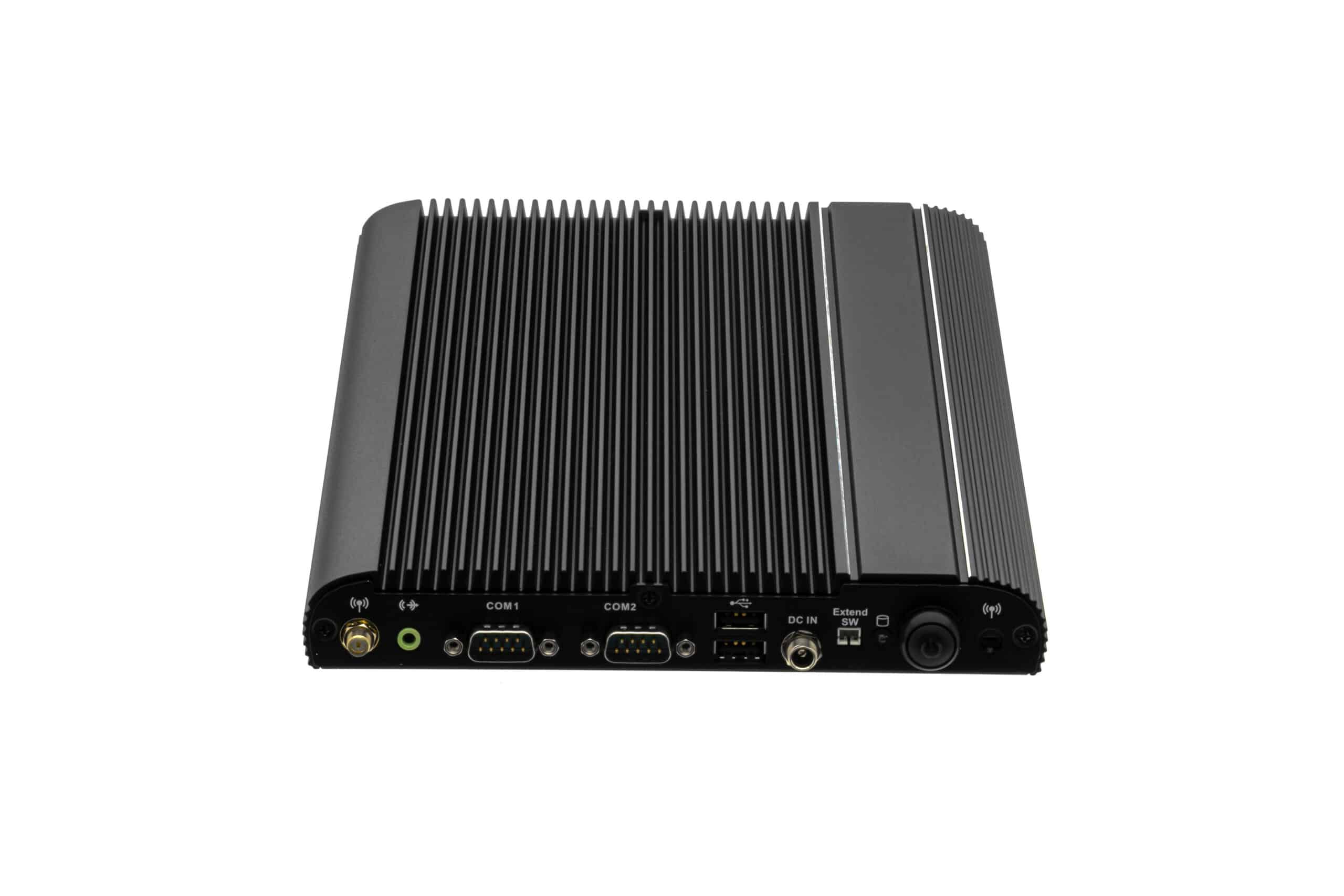

WINDBOX III Core
WINDBOX III Core - Image 2
WINDBOX III Core - Image 3
WINDBOX III Core - Image 4
WINDBOX III Core - Image 5
temperatur

Wide range temperature

-10°C up to +50°C

Industrie-PC

Industrial PC

Ultra-flat and robust

luefterlos

Fanless PC

Passively cooled and noiseless

Configure your system

Select the components for your individual requirements

Your configuration

  • In stock
  • 1-3 working days

Highlights at a glance

  • Processor

Intel® Core™ 5 120U (Raptor Lake-P Refresh)
Up to 5.0 GHz turbo clock
Energy-efficient 15-watt platform
Optimized for edge computing and AIoT

  • Memory

Up to 96 GB DDR5 memory
2x DDR5 SO-DIMM slots
M.2 NVMe PCIe Gen4 SSD support
Additional 2.5″ SSD storage space

  • Network

2x Intel® 2.5 Gigabit Ethernet
High bandwidth for edge applications
Network segmentation via dual LAN
Optional mobile expansion via M.2 B-Key with SIM holder

  • Graphics & Display

Integrated Intel® Graphics
Support for up to 4 displays simultaneously
2x HDMI 2.0
DisplayPort output via USB-C with up to 8K resolution

  • Connections

4x USB 3.2 Gen2, 6x USB 2.0
2x serial COM ports (RS-232/422/485)
Audio output and dual LAN

  • Industry standard

Completely fanless design
Shock and vibration resistant in accordance with IEC 60068-2
Operating temperature from -10 °C to +50 °C
TPM 2.0 for increased system security

  • Special features

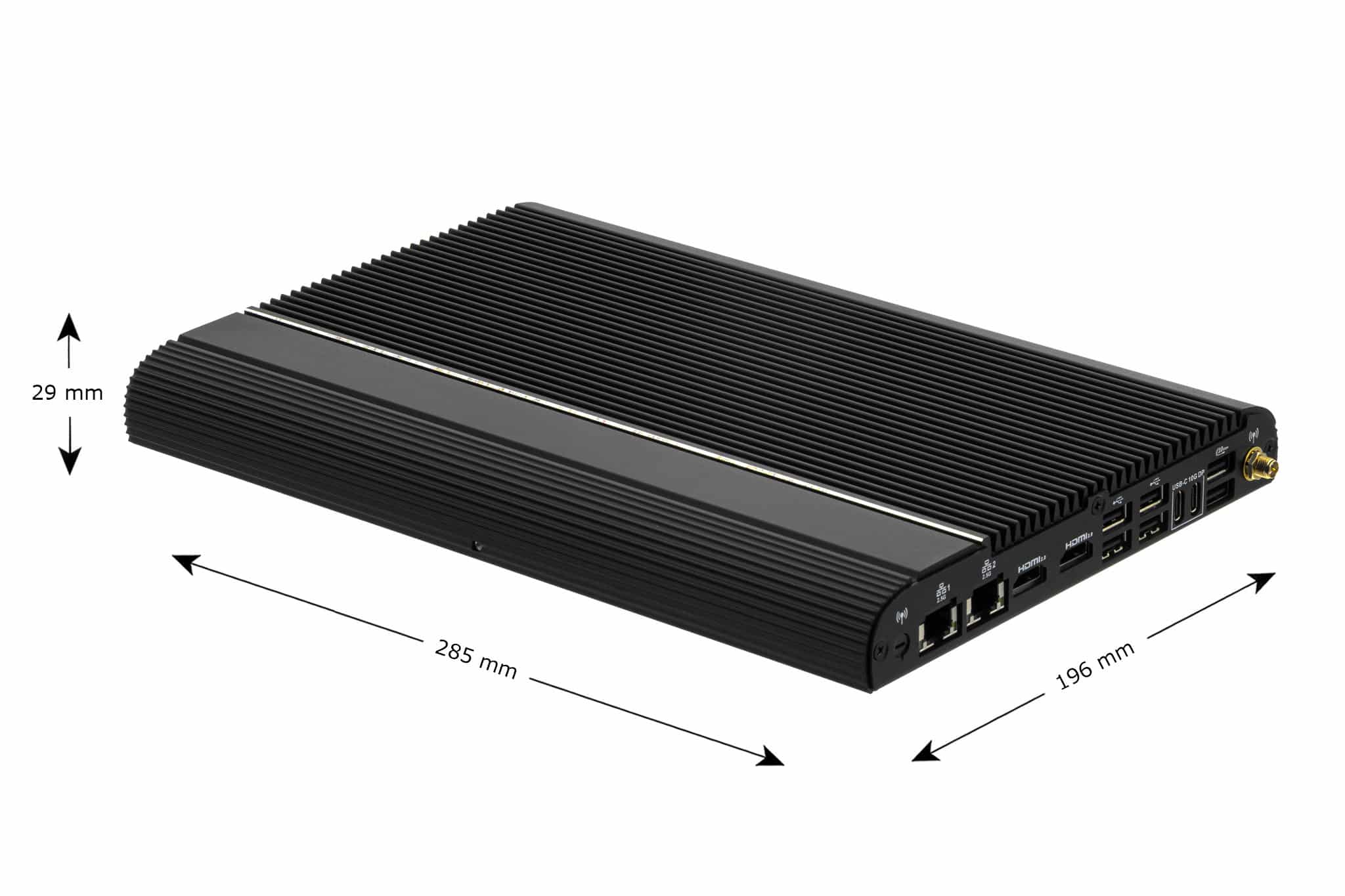

Extremely flat design (30 mm)

Supports embedded and digital signage solutions

Robust for continuous use in harsh environments

Download data sheet

Frequently asked questions

For which applications is the WINDBOX III Core suitable?

The WINDBOX III Core was specially developed for demanding industrial and edge applications. Typical areas of use include digital signage with multiple displays, AIOSK and self-service systems, machine control, industrial data acquisition, smart city applications, edge computing and AIoT solutions.


How many displays can be operated simultaneously?

The system supports up to four independent displays via two HDMI ports and two DisplayPort outputs via USB-C. This allows multiple screens or video walls to be operated simultaneously with different content.


Is the WINDBOX III Core suitable for continuous operation?

Yes, the completely fanless design minimizes wear and maintenance. In addition, the system meets industrial requirements in terms of vibration and shock resistance, making it ideal for reliable 24/7 operation.


What expansion options does the WINDBOX III Core offer?

The WINDBOX III Core has three M.2 slots, a 2.5″ SSD slot, up to 96 GB DDR5 RAM and an M.2 B-key with SIM card holder for mobile phone connections. This allows the system to be flexibly adapted to individual project requirements.


Discuss project now

Are you planning an industrial, automation or AI project and looking for a reliable industrial PC? Let’s work together to find the optimal solution for your requirements.
Receive offer
Download data sheet
  • Free advice
  • Individual solutions
  • Quick answer

You might also be interested in

Discover more Industrial PC solutions for various applications

Neu
WINDBOX II NX

WINDBOX II NX

  • Intel® N150 CPU, up to 4x 3.6 GHz
  • Fanless all-rounder PC
  • Up to 3 independent displays
  • 4x USB, 1x COM, 2x LAN
Learn more
BOX J6412

BOX J6412

  • Intel® Celeron® J6412, 4x 2 GHz
  • Industrial PC & Digital Signage
  • Ultra-compact design
  • 2x LAN, 4x USB 3.2, 2x HDMI 2.0
Learn more
KUMO VI

KUMO VI

  • Intel® Core™ i5-11400H, 6x 2.7 GHz
  • Digital signage, virtual reality & AI
  • RTX 3060 GPU, 3840 CUDA cores
  • 5x USB, 2x HDMI, 2x DisplayPort
Learn more

Fanless industrial PC for edge computing, digital signage and automation

The WINDBOX III Core combines high computing power, modern connectivity and an ultra-compact, fanless design in a powerful industrial PC. Equipped with an Intel® Core™ 5 120U processor, the system supports demanding applications in the fields of edge computing, AI, digital signage, AIOSK systems and industrial automation. Thanks to up to 96 GB DDR5 memory, dual 2.5 GbE LAN and flexible expansion options, the WINDBOX III Core offers the necessary performance for data-intensive applications and reliable continuous operation.
-10°C UP TO +50°C
FANLESS
INDUSTRY PC
With support for up to four independent displays, numerous industrial interfaces and a robust, maintenance-free fanless design, the WINDBOX III Core is ideal for use in demanding environments. Whether as an edge computer in smart city projects, as a control computer in manufacturing or as a powerful platform for digital signage solutions – the WINDBOX III Core combines high reliability with…
