CORE 5 Ultra - Compact entry-level AI system

Edge AI power in mini format

  • Intel® Core™ Ultra 5 with NPU (11 TOPS)
  • Up to 4x 4K / 1x 8K displays
  • Dual LAN (1G + 5G) & Thunderbolt™ 4
  • 4x M.2 expansion slots (e.g. for AI accelerators)
Configure now
Download data sheet
Front of the CORE 5 Ultra
CORE 5 Ultra - Image 2

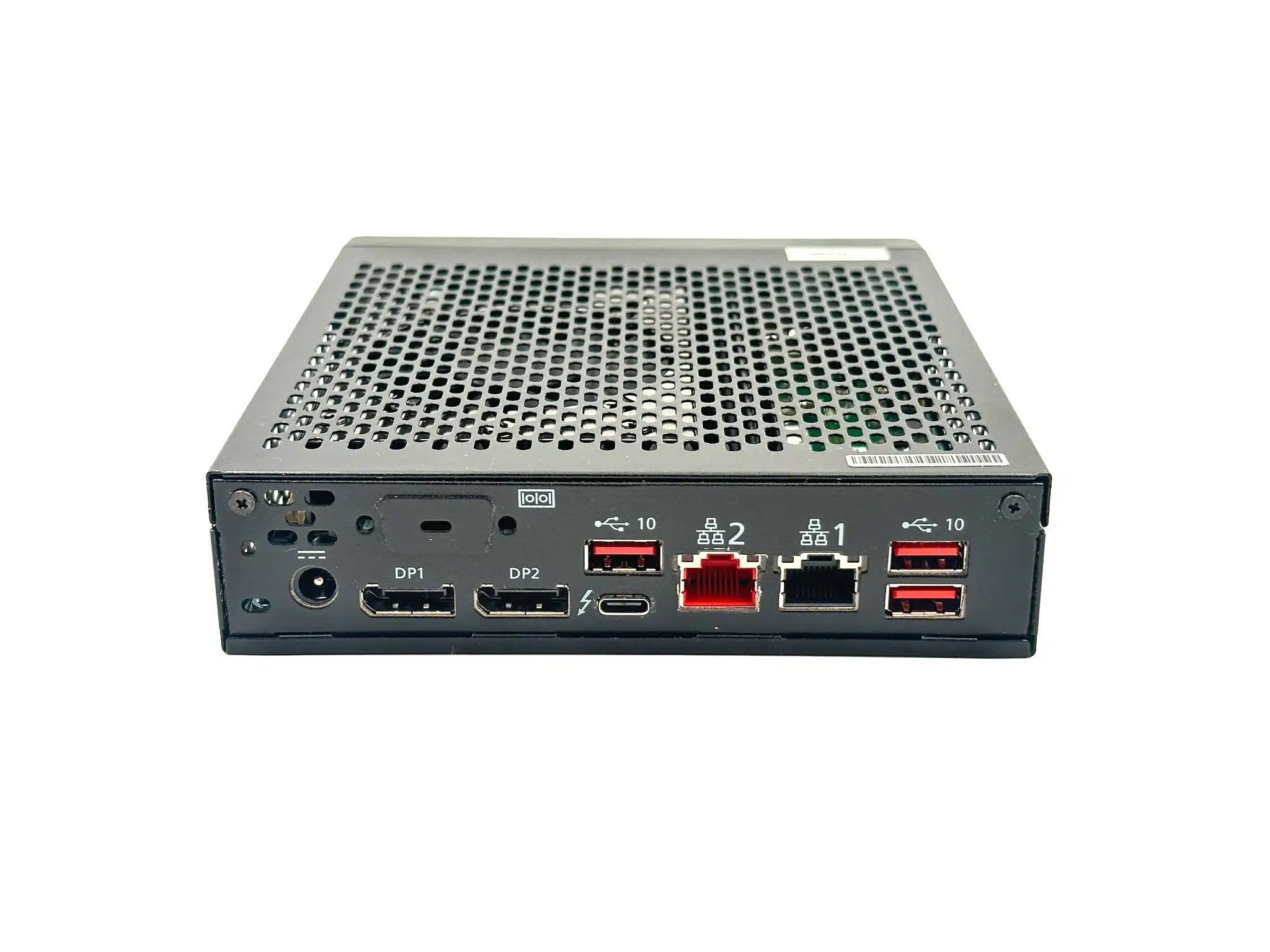

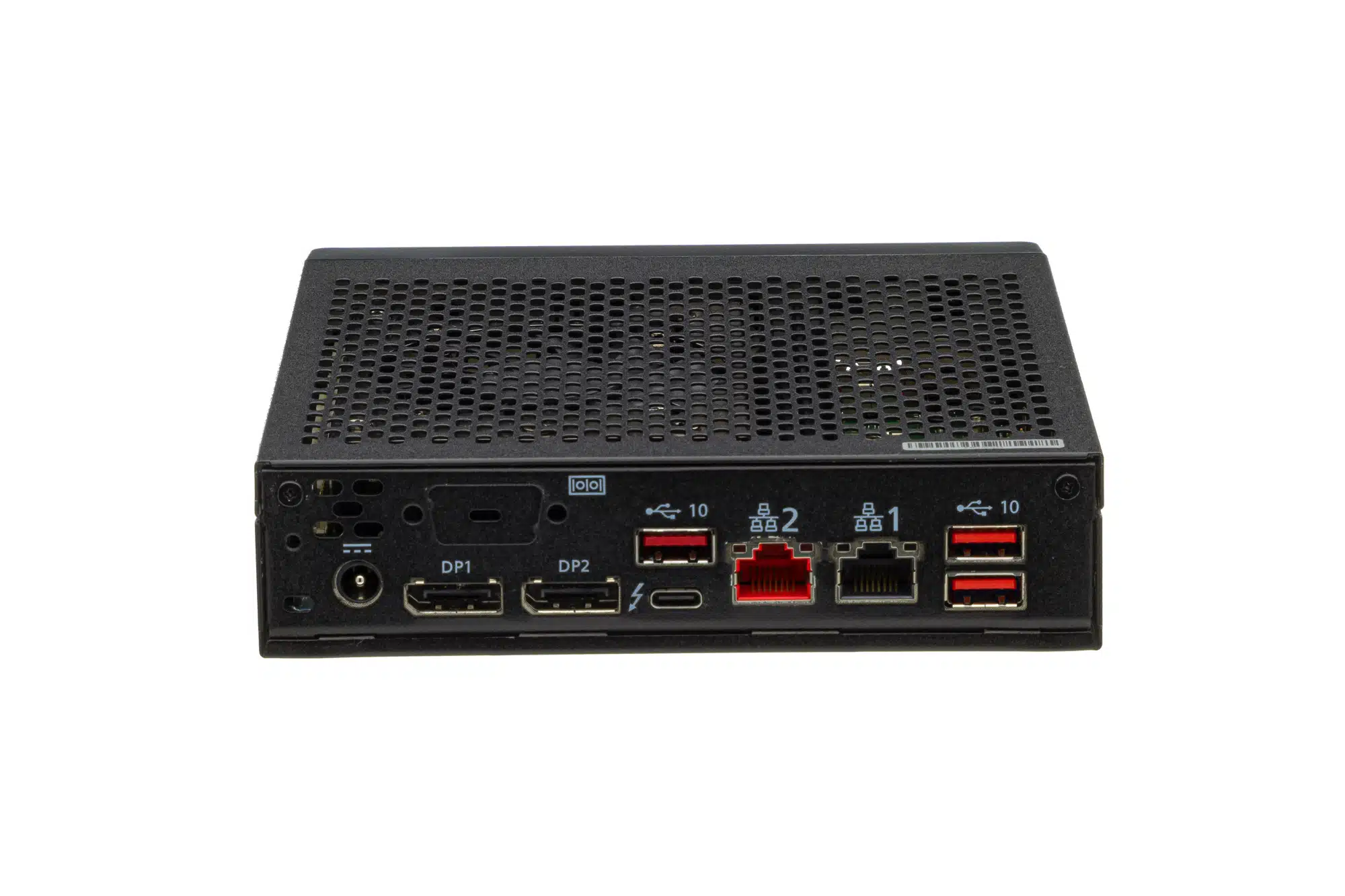

Rear of the CORE 5 Ultra
CORE 5 Ultra - Image 4

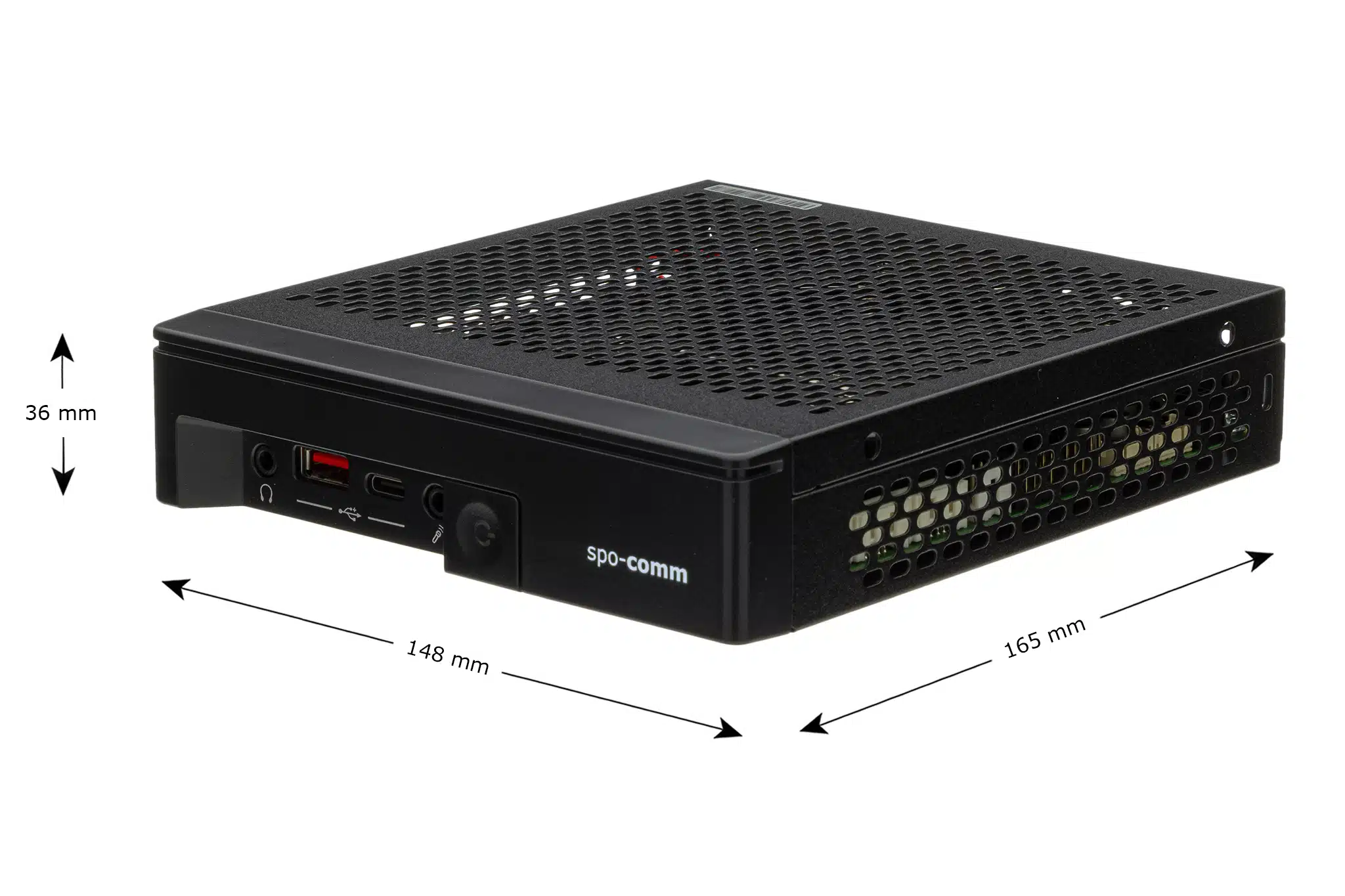

Dimensions of the CORE 5 Ultra
temperatur

Erw. Temperature range

-10°C to +40°C

4K

Screen resolution

4x 4K@60Hz

artificial-intelligence-icon

Artificial intelligence

Integrated NPU (11 TOPS)

Industrie-PC

Industrial applications

Configure your system

Select the components for your individual requirements

Your configuration

Make a price inquiry
Request a test position
  • Im Lieferrückstand
  • 8 weeks

Highlights at a glance

  • Processor

Intel® Core™ Ultra 5125U CPU

2x performance cores with up to 4.3GHz turbo clock

Integrated AI unit (NPU) with 11 TOPS

Efficient and suitable for 24/7 operation

  • Memory

2x SO-DDR5 (max. 96GB)

1x M.2 NVMe SSD (max. 2TB)

2x M.2 Slots for flexible storage solutions



  • Network

2x LAN (dual with 1GbE and 5GbE)

Optional WLAN, 4G / 5G via M.2

Parallel networks possible

Reliable network communication for IoT applications

  • Graphics & Display

Integrated Intel® Xe graphics

Max. Resolution up to 1x 8K@60Hz or 4x 4K@60Hz

Multi-monitor operation with up to 4 displays

Ideal for infotainment systems, kiosks and public displays

  • Connections

4x USB 3.2 (Gen 2×1)

1x COM RS232

2x DisplayPort 1.4a / 1x Thunderbolt / 1x USB-C Alt-Mode

Further I/O: Mic In, Line Out

  • Industry standard

Robust metal housing

Actively cooled system design

Temperature range from -10 to +40 °C

TPM 2.0, watchdog & recovery for high security

  • AI & expandability

Expandable with 2 AI accelerators (e.g. Hailo-8)

Edge AI processing directly on the device
Ideal for vision AI and automation
High computing power with low energy consumption

Download data sheet

Frequently asked questions

For which applications is the CORE 5 Ultra particularly suitable?

The mini PC is ideal for digital signage, kiosk systems, infotainment and industrial applications such as machine vision, automation and edge AI.


What AI performance does the CORE 5 Ultra offer?

The integrated NPU of the CORE 5 Ultra delivers up to 11 TOPS and can be expanded to significantly higher AI performance with additional modules (e.g. Hailo-8) – perfect for demanding AI workloads.


How flexible is the CORE 5 Ultra in terms of expansion?

With 4x M.2 slots memory, network modules or additional AI accelerators can be integrated. This makes the PC particularly future-proof.


Is the CORE 5 Ultra suitable for continuous operation?

Yes, the CORE 5 Ultra is designed for 24/7 use and works reliably at temperatures from -10 to +40 °C – ideal for industrial and public installations.


Discuss project now

Are you planning an industrial, automation or AI project and looking for a reliable industrial PC? Let’s work together to find the optimal solution for your requirements.
Receive offer
Download data sheet
  • Free advice
  • Individual solutions
  • Quick answer

You might also be interested in

Discover more Industrial PC solutions for various applications

QUADRO P1000

QUADRO P1000

  • Intel® Core™ i5-7300U, 2 x 2.6 GHz
  • Digital signage PC
  • 4 independent screens (HDMI)
  • 3x USB, 1x COM, 2x LAN
Learn more
WINDBOX III Ultra

WINDBOX III Ultra

  • Intel® Core™ i5-1335UE
  • Fanless all-rounder PC
  • Up to 4 independent displays
  • 5x USB, 2x COM, 2x LAN
Learn more
BOX J6412

BOX J6412

  • Intel® Celeron® J6412, 4x 2 GHz
  • Industrial PC & Digital Signage
  • Ultra-compact design
  • 2x LAN, 4x USB 3.2, 2x HDMI 2.0
Learn more

Industrial PC with AI acceleration for machine vision & control

The CORE 5 Ultra – our robust AI edge computer was specially developed for demanding applications in the edge computing industry. With an integrated NPU (11 TOPS), it is ideal for predictive maintenance AI, machine vision, process automation and industrial control. The industrial PC offers maximum flexibility for modular expansions: Integrate additional memory, LTE/5G modems, WLAN modules or expand the AI computing power with up to two additional AI accelerators. With the Hailo-8 module, you can achieve a total of up to 52 additional TOPS for high-performance edge AI applications. Suitable for industrial use in the harshest conditions: The CORE 5 Ultra is designed for use at temperatures from -10 to +40°C and works reliably in industrial environments – whether in production halls, vehicles or decentralized control units. The fanless, passive cooling design guarantees maintenance-free operation without moving parts.
-10°C UP TO +40°C
4 X 4K@60HZ
PC FOR ARTIFICIAL INTELLIGENCE
The CORE 5 Ultra was developed for demanding applications in the edge computing industry. With an integrated NPU (11 TOPS), it is ideal for predictive maintenance AI, machine vision, process automation and control. Equipped with dual LAN (1GbE + 5GbE), RS-232 COM port and 4x M.2, the industrial PC offers maximum flexibility for modular extensions such as memory, modems, WLAN or two additional AI…
