RUGGED Tab 10 i5 Pro - 10" high-end tablet

Robust industrial tablet for the highest demands

  • Powerful Intel® Core™ i5 processor
  • Robust MIL-STD-810G & IP65 design
  • Hot-swap battery (64 Wh) – battery change during operation
  • Full-HD WUXGA display
Configure now
Download data sheet

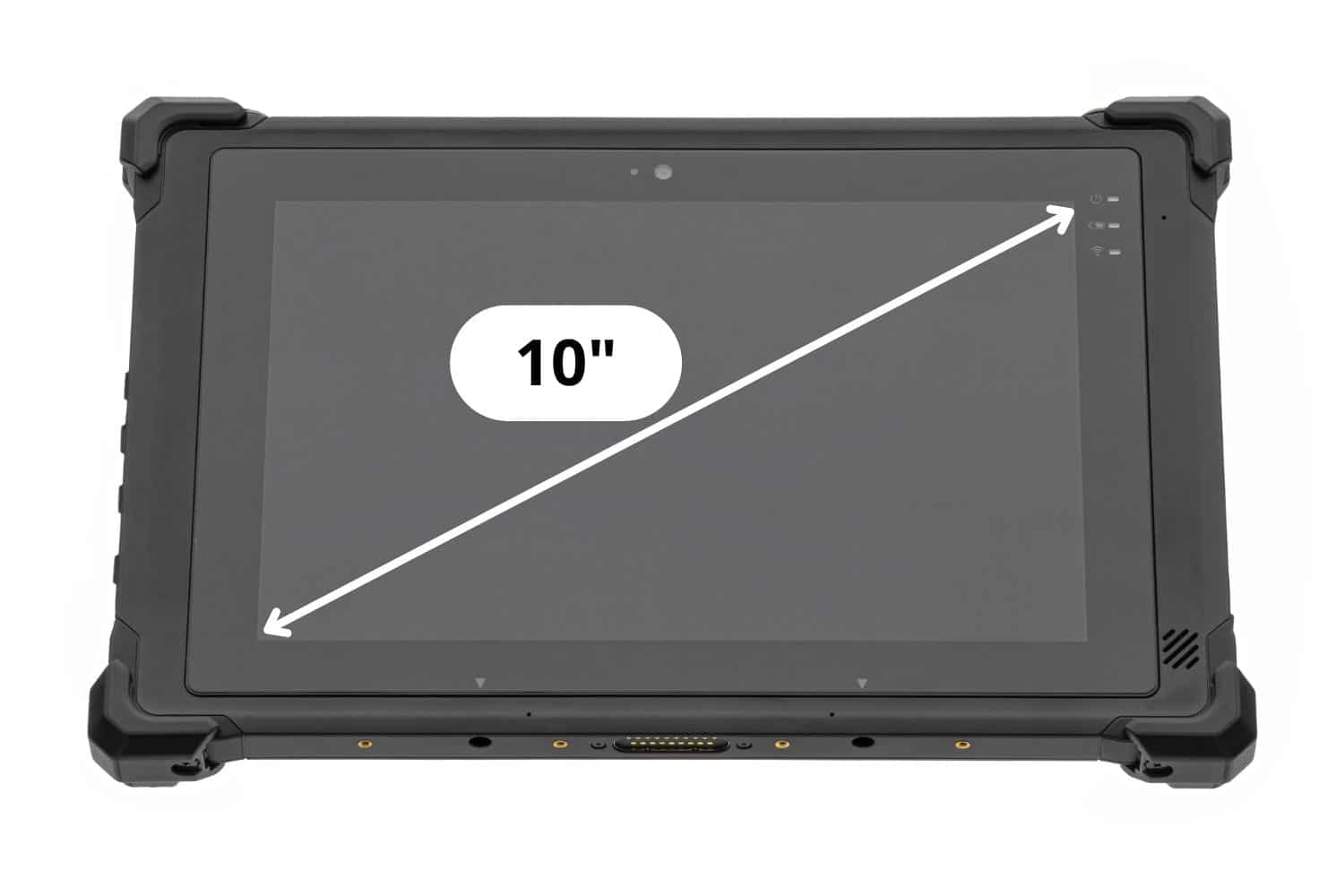

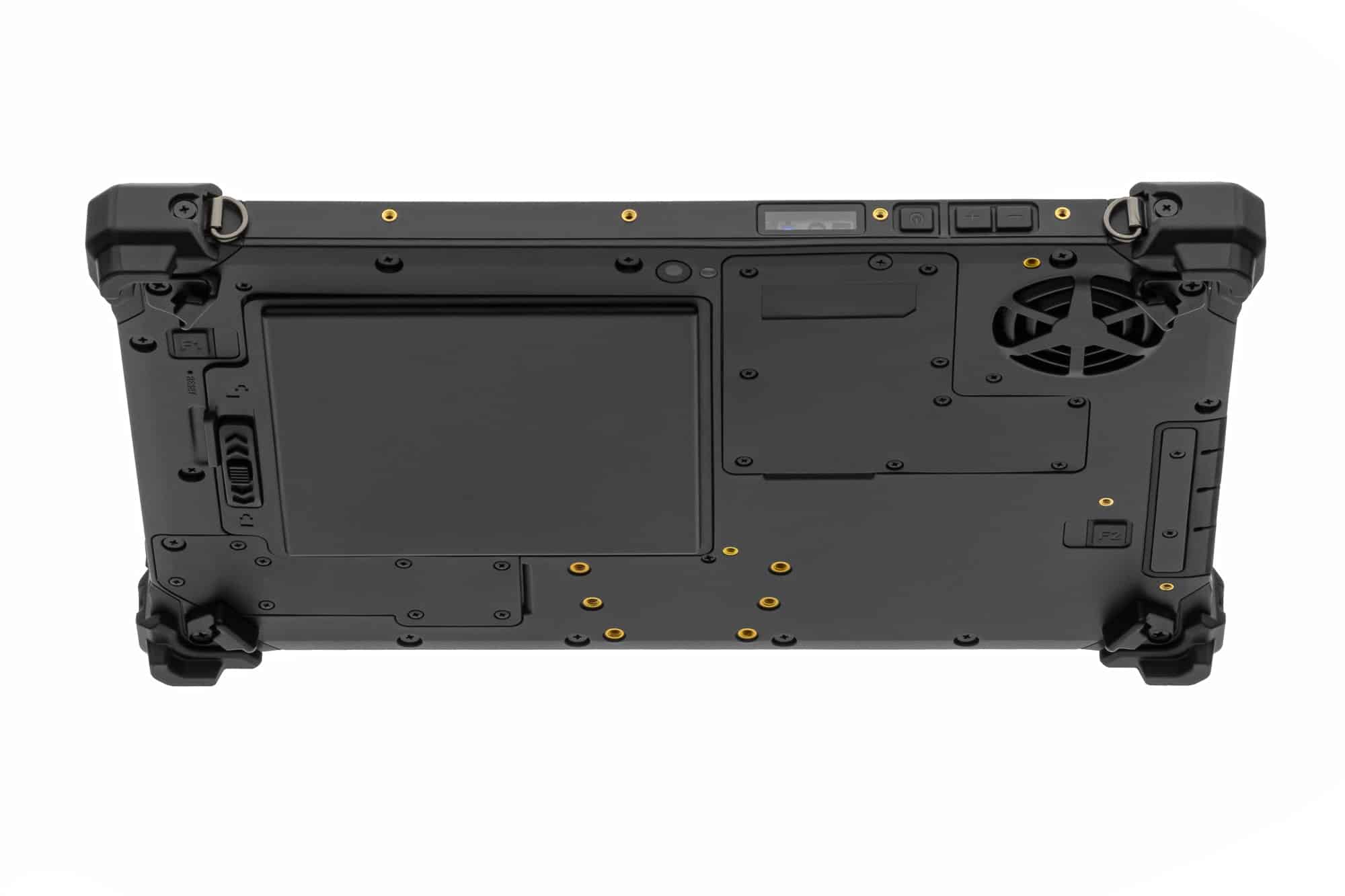

RUGGED Tab 10 i5 Pro
RUGGED Tab 10 i5 Pro - Image 2
RUGGED Tab 10 i5 Pro - Image 3
RUGGED Tab 10 i5 Pro - Image 4
RUGGED Tab 10 i5 Pro - Image 5

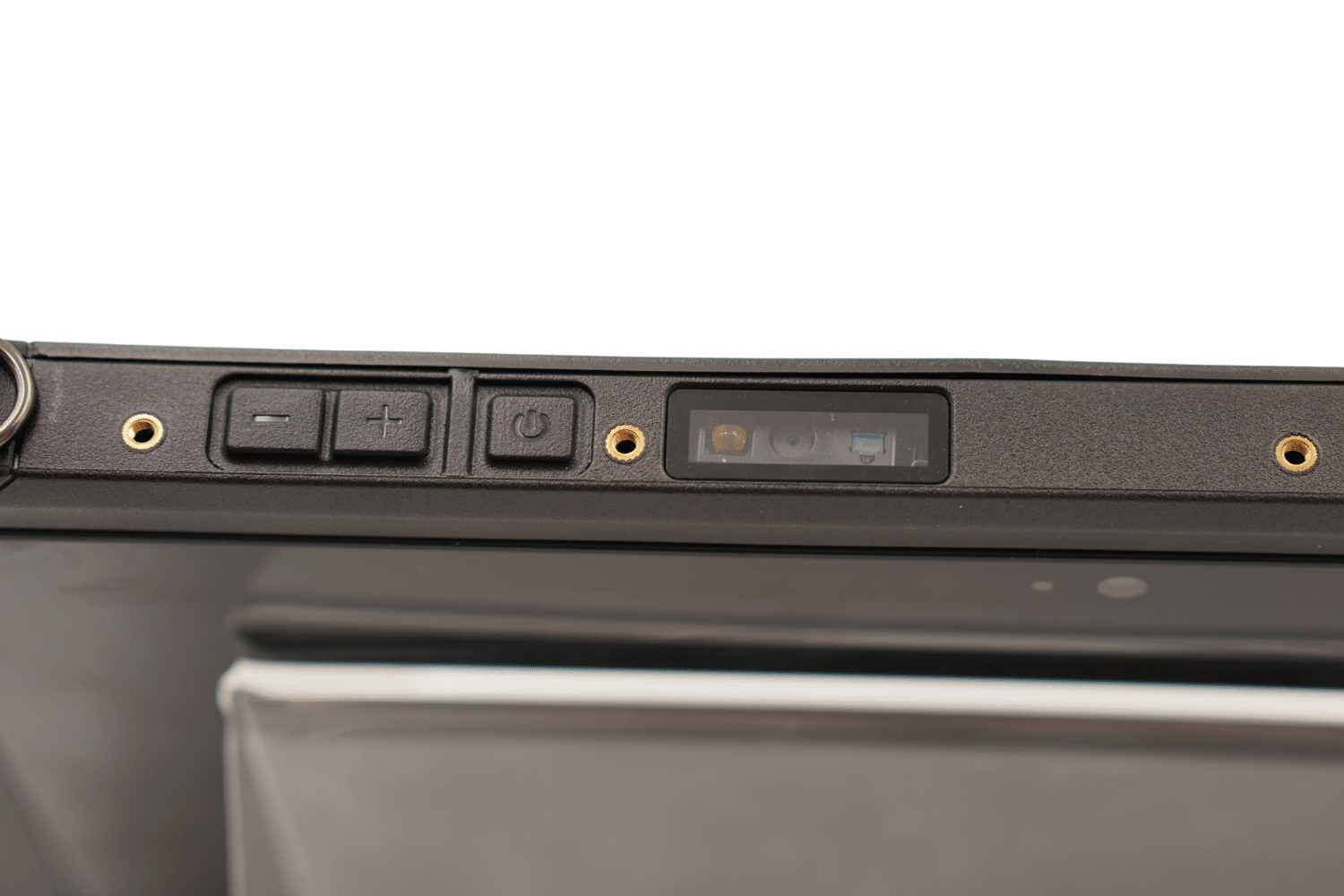

Barcode scanner installed_Accessories
RUGGED Tab 10 i5 Pro - Image 7

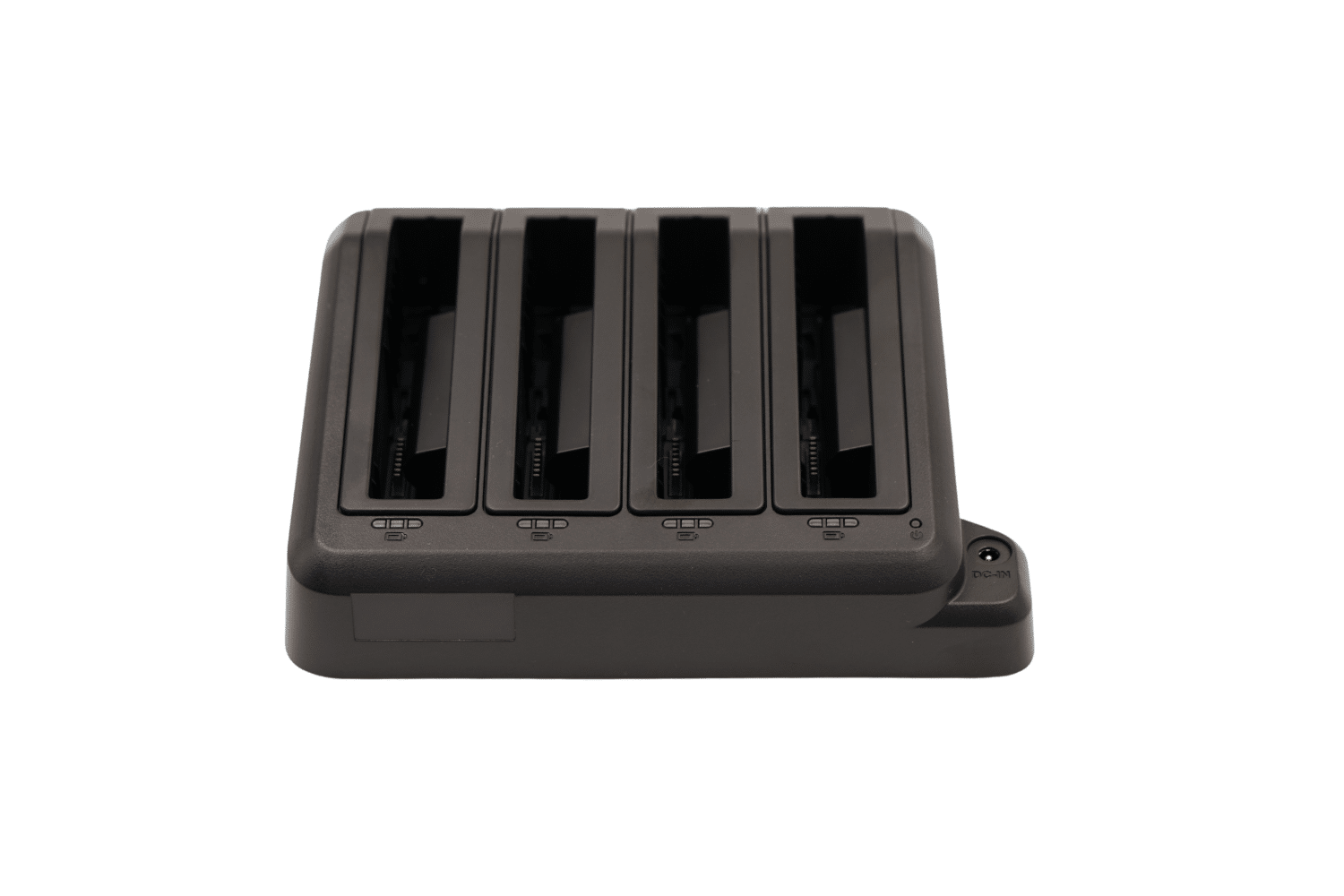

4-in-1 Charger Pro
RUGGED Tab 10 i5 Pro - Image 9
RUGGED Tab 10 i5 Pro - Image 10
RUGGED Tab 10 i5 Pro - Image 11
RUGGED Tab 10 i5 Pro - Image 12
temperatur

Erw. Temperature range

-10°C to +50°C

10-point-touch

Display

10-point touch

Tablet-PC

RUGGED Tablet PC

Aufloesung-1920x1200

Screen resolution

WUXGA display (1920×1200px)

Configure your system

Select the components for your individual requirements

Your configuration

Make a price inquiry
Request a test position
  • Im Lieferrückstand
  • 1-3 working days

Highlights at a glance

  • Processor

Intel® Core™ i5-1334U processor

10 cores with up to 4.6GHz turbo clock

Energy-efficient CPU with 15Watt TDP

Ideal for office and industrial apps

  • Memory

1x onboard DDR5 RAM (max. 16GB)

1x M.2 NVMe SSD (max. 256GB)

Perfect for multitasking

Expandable via microSD

  • Network

1x Gigabit LAN

Integrated 4G module

WLAN (Wi-Fi 6)

Bluetooth for device networking

  • Graphics & Display

10-inch display with 1920 x 1200px resolution

800 cd/m² brightness for indoor & outdoor use

10-point multi-touch for precise and intuitive operation

Ideal for industrial & mobile data capture



  • Connections

1x USB 3.2 (Gen2x1), 1x USB-C Alt-Mode

1x microSD slot

1x SIM slot

Kensington Lock

  • Industry standard

Impact-resistant housing in accordance with MIL-STD-810G

Actively cooled system design

Extended temperature range:-10°C to +50°C

Dust & water resistant (IP65)



  • Accessories & extensions

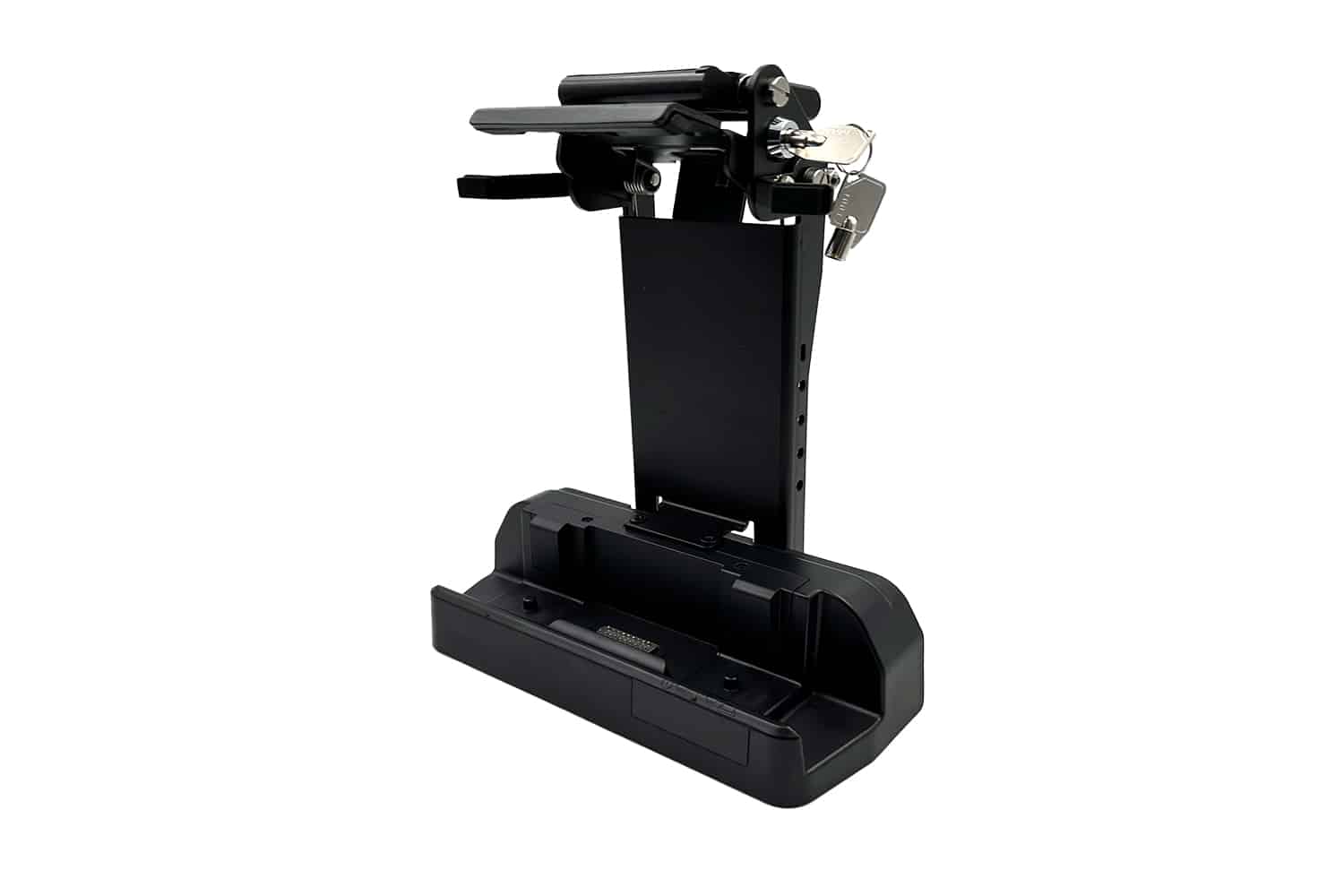

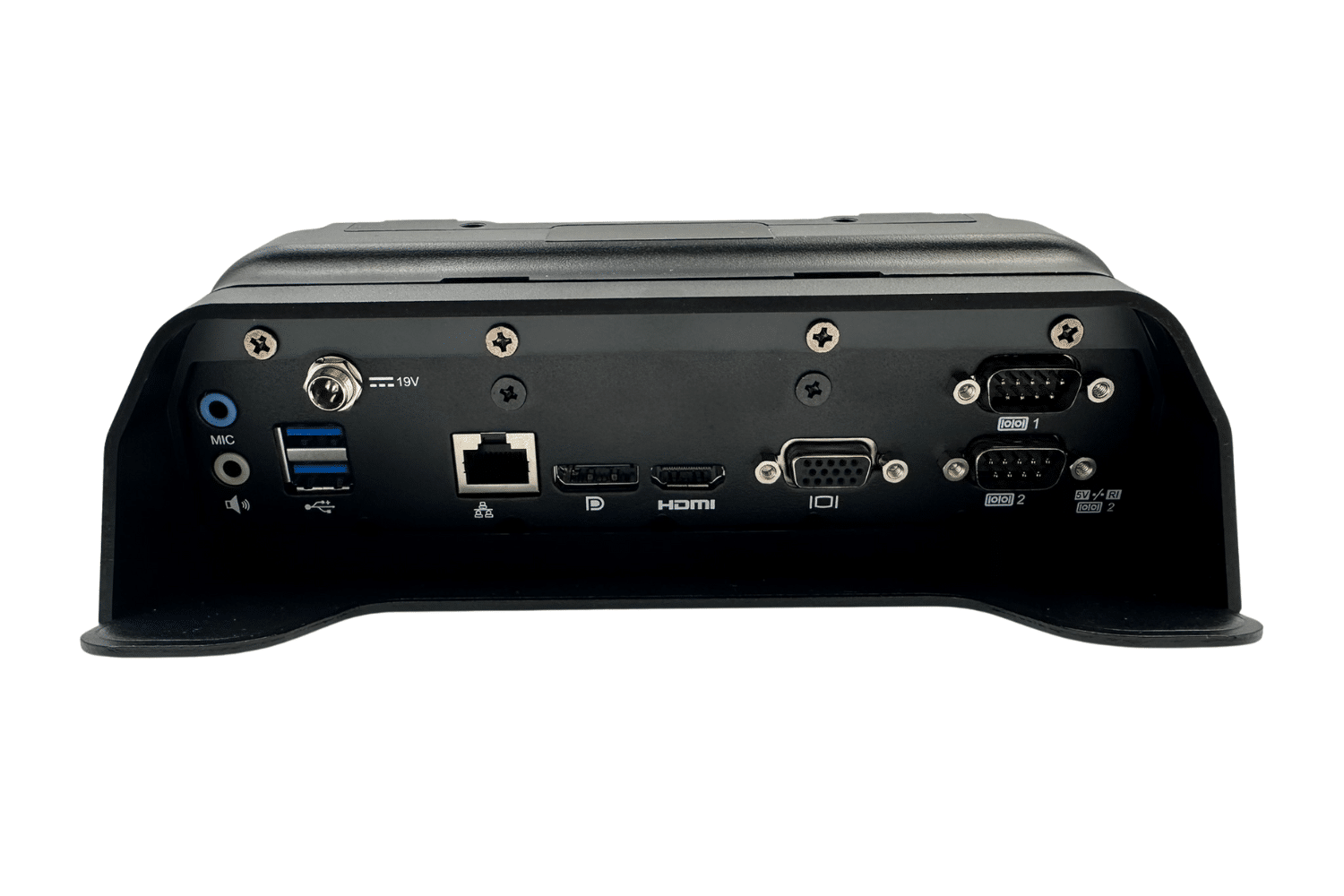

Optional docking station and vehicle dock

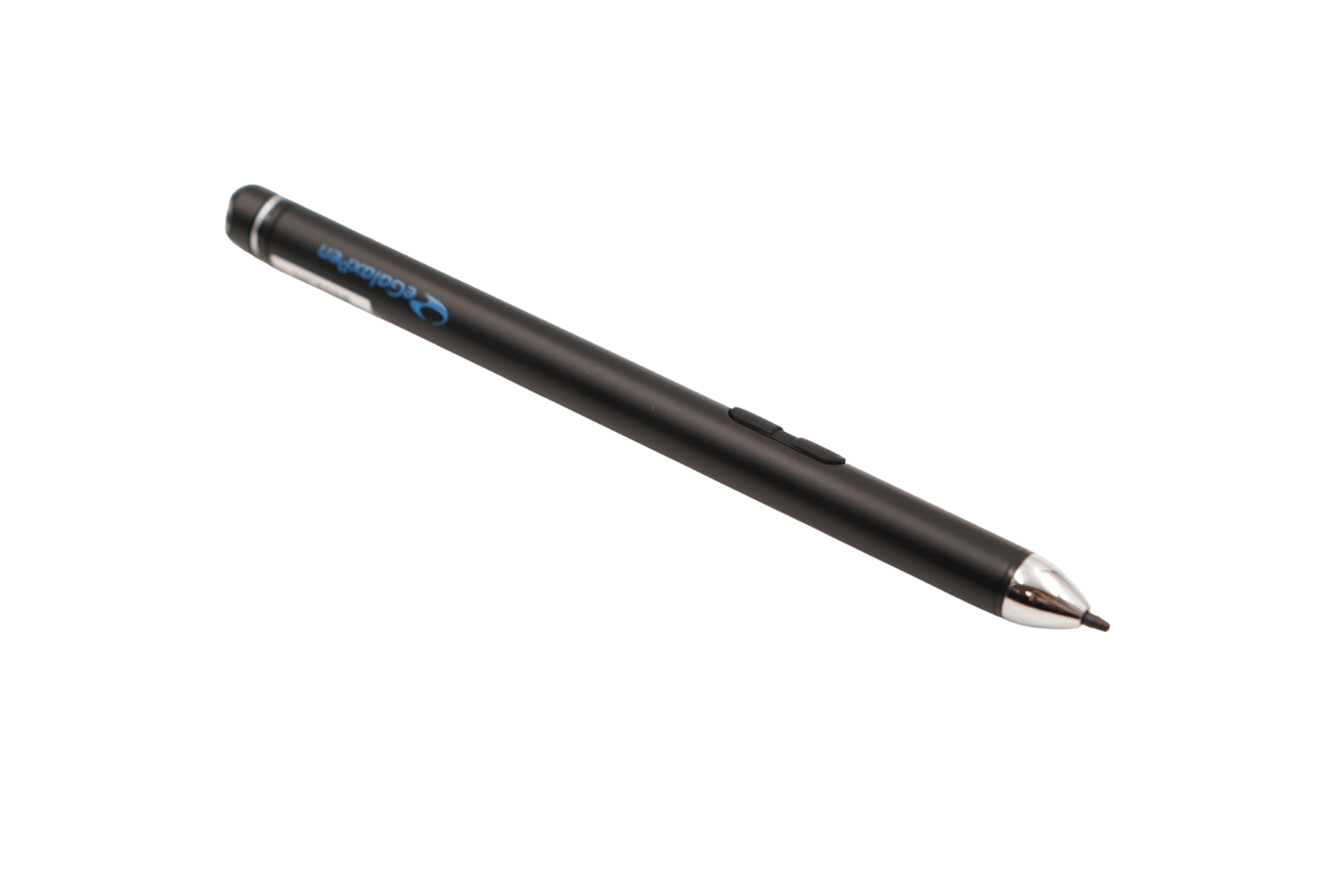

Optional digitizer pen, 2D barcode scanner for data capture

Spare battery with 7.68V / 4170MAh / 32Wh for quick battery replacement

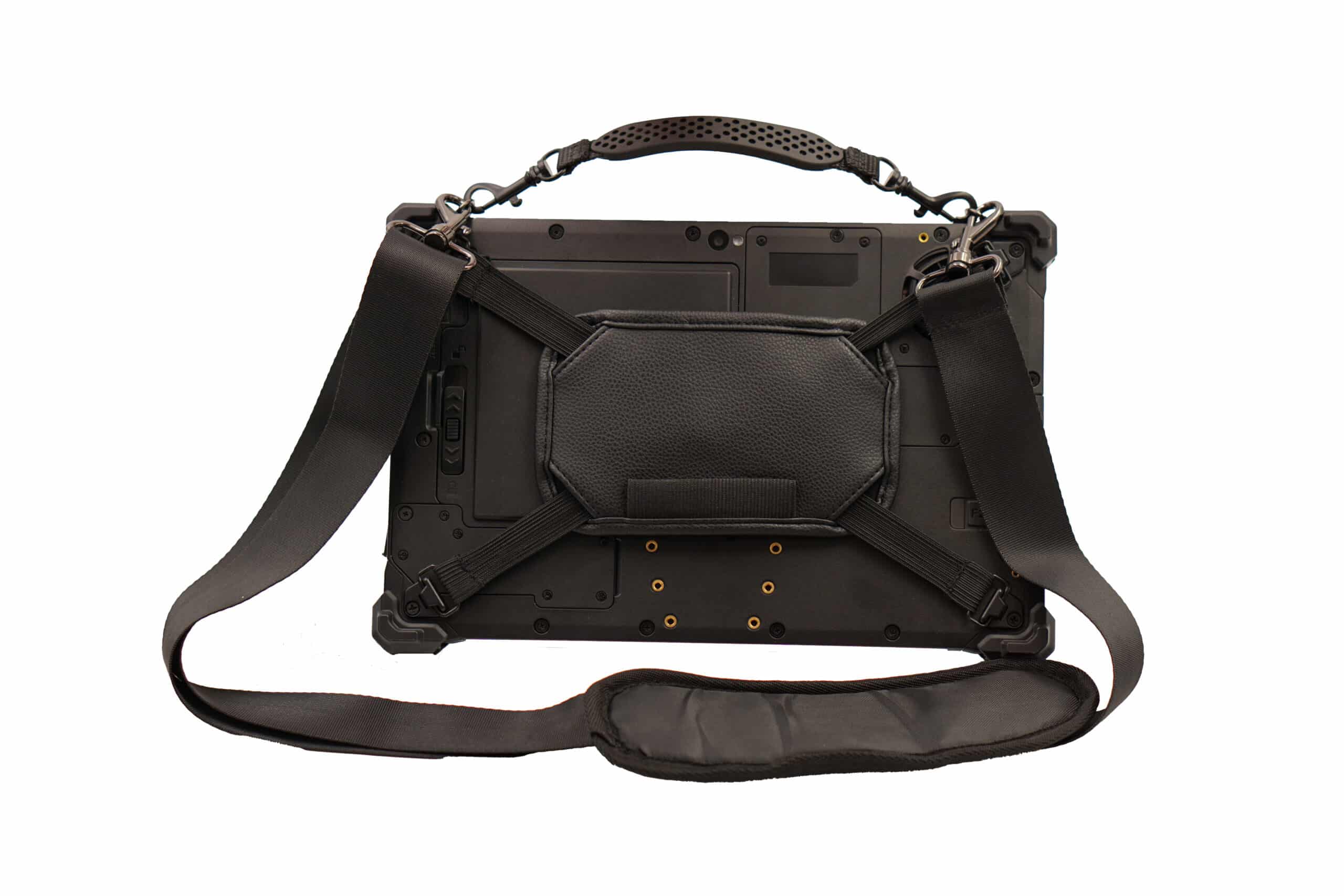

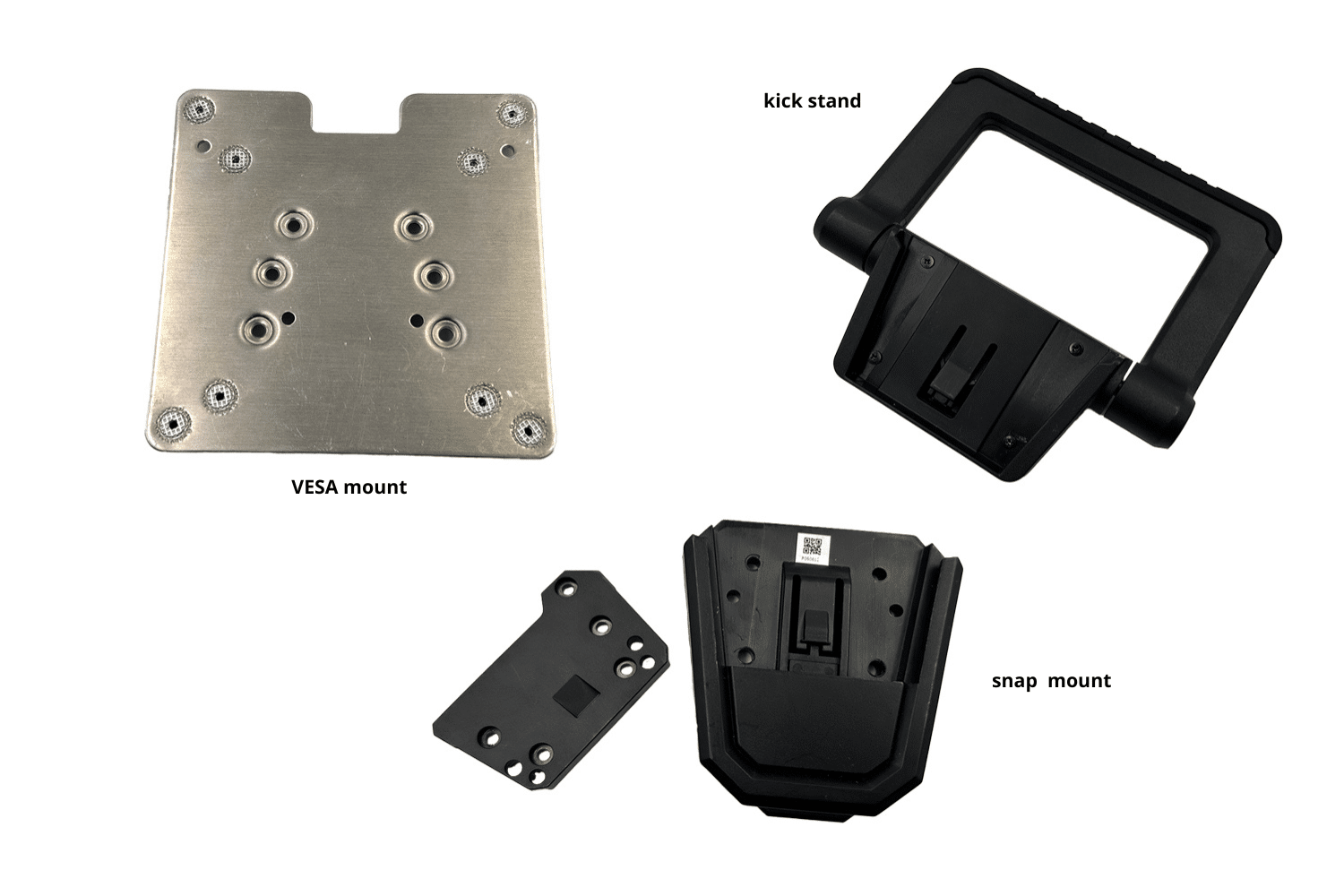

Additional accessories: carrying strap & SnapMount set, docking station, 4 in 1 battery charging station

Download data sheet

Frequently asked questions

For which areas of application is the RUGGED Tab 10 i5 Pro suitable?

The RUGGED Tab 10 i5 Pro has been specially designed for industrial applications and is ideal for construction sites, production facilities, warehousing, logistics and outdoor use. It can even withstand extreme temperatures, shocks, dust and splash water.


What battery options and runtimes does the device offer?

The RUGGED Tab 10 i5 Pro has a hot-swap battery with 64 Wh (8340 mAh), which can be replaced during operation. Depending on usage, the runtime is around 8-10 hours without interrupting the workflow.


What security functions are integrated in the RUGGED Tab 10 i5 Pro?

For secure working, the tablet features Windows® Hello authentication, optional 4G LTE encryption, TPM 2.0 support and a robust design in accordance with MIL-STD-810G and IP65, which also protects against physical threats such as impacts and liquids.


What are the differences to standard tablets or other RUGGED models?

Compared to conventional tablets, the RUGGED Tab 10 i5 Pro offers higher computing power, advanced industry standard, hot-swappable battery and additional connectivity options. Compared to other RUGGED models, it scores particularly well with the Intel® Core™ i5 processor, the WUXGA display and the robust design for extreme operating conditions.


Discuss project now

Are you planning an industrial, automation or AI project and looking for a reliable industrial PC? Let’s work together to find the optimal solution for your requirements.
Receive offer
Download data sheet
  • Free advice
  • Individual solutions
  • Quick answer

You might also be interested in

Discover more Industrial PC solutions for various applications

WINDBOX III Ultra

WINDBOX III Ultra

  • Intel® Core™ i5-1335UE
  • Fanless all-rounder PC
  • Up to 4 independent displays
  • 5x USB, 2x COM, 2x LAN
Learn more
BOX J6412

BOX J6412

  • Intel® Celeron® J6412, 4x 2 GHz
  • Industrial PC & Digital Signage
  • Ultra-compact design
  • 2x LAN, 4x USB 3.2, 2x HDMI 2.0
Learn more
KUMO VI

KUMO VI

  • Intel® Core™ i5-11400H, 6x 2.7 GHz
  • Digital signage, virtual reality & AI
  • RTX 3060 GPU, 3840 CUDA cores
  • 5x USB, 2x HDMI, 2x DisplayPort
Learn more

Industrial tablet for the toughest applications

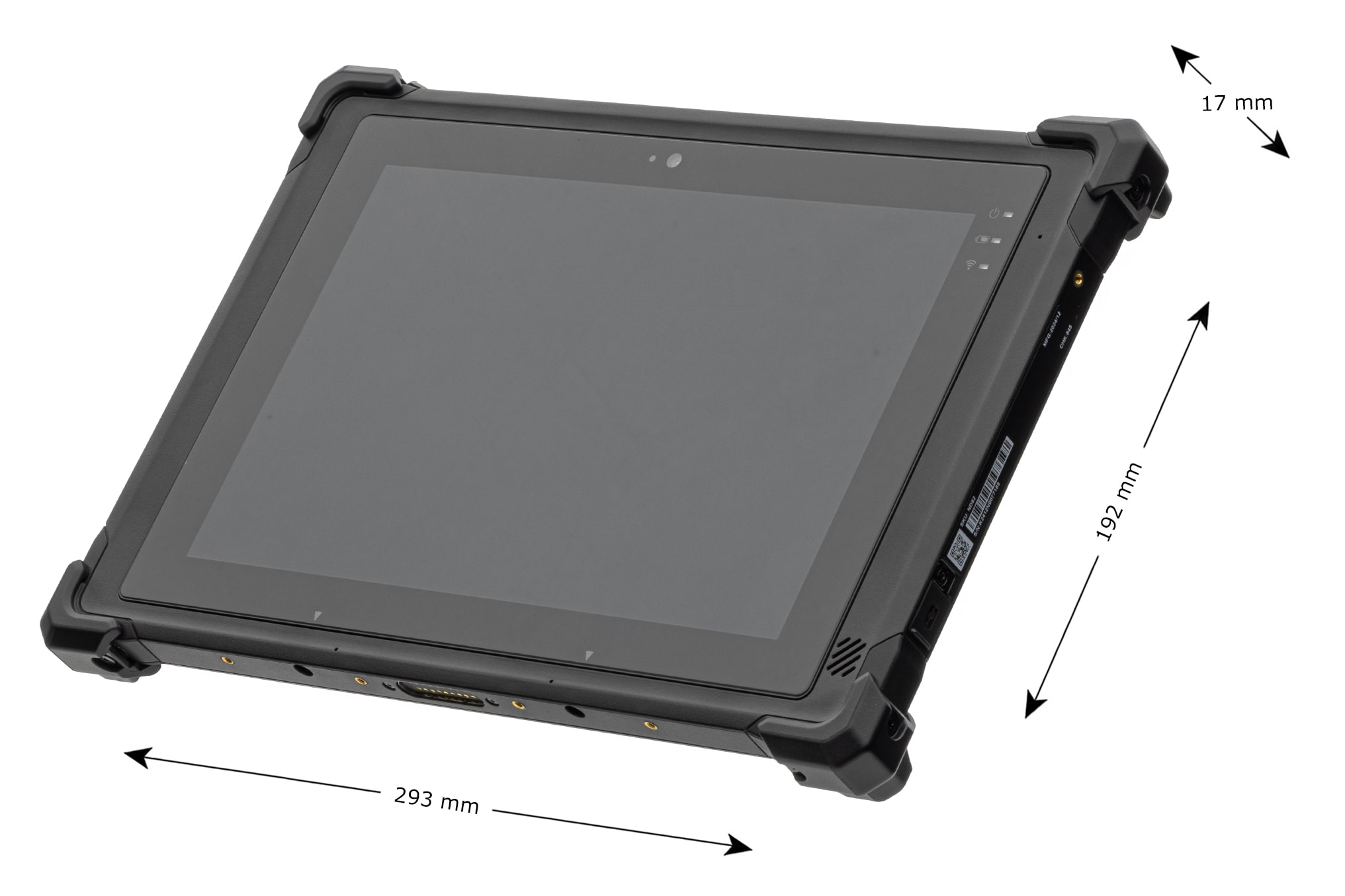

The RUGGED Tab 10 i5 Pro is a powerful industrial tablet specially designed for demanding work environments. Powered by an Intel® Core™ i5-1334U processor with integrated Intel® UHD Graphics 80EU and 16 GB DDR5 RAM, it masters complex industrial applications effortlessly. The WUXGA display (1920×1200) with high brightness ensures optimum readability, even in direct sunlight or in warehouses with low light. With dimensions of 192 x 293 x 17 mm, the RUGGED Tab 10 i5 Pro offers a compact, handy design and sufficient performance for CAD, ERP or visualization software.
-10°C UP TO +50°C
10-POINT TOUCH
TABLET-PC
Maximum connectivity and security are guaranteed thanks to extensive connections such as USB 3.2 Gen2, Gigabit LAN, microSD and USB Alt Mode (16K-capable), optional 4G LTE and the Windows® Hello camera (5 MP). The hot-swappable battery (64 Wh / 8340 mAh) allows for battery replacement without interruption, while MIL-STD-810G and IP65 certification make the tablet shock, dust and water resistant.…
