-20ยฐC UP TO +60ยฐC
FANLESS
RESOLUTION 1200X900

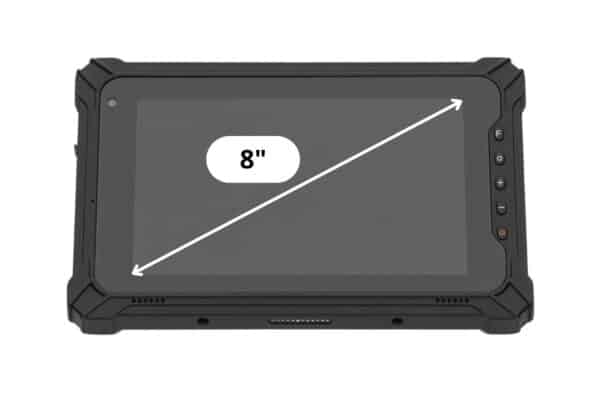

TABLET-PCThe RUGGED Tab 8A Entry is not only equipped with a fixed CPU, RAM and SSD, but also with an Android 12 operating system. In addition to a line-out connection, the tablet has a USB 2.0 port, two SIM card slots and a USB type C for charging and data transfer. The tablet is also equipped with the NFC function.

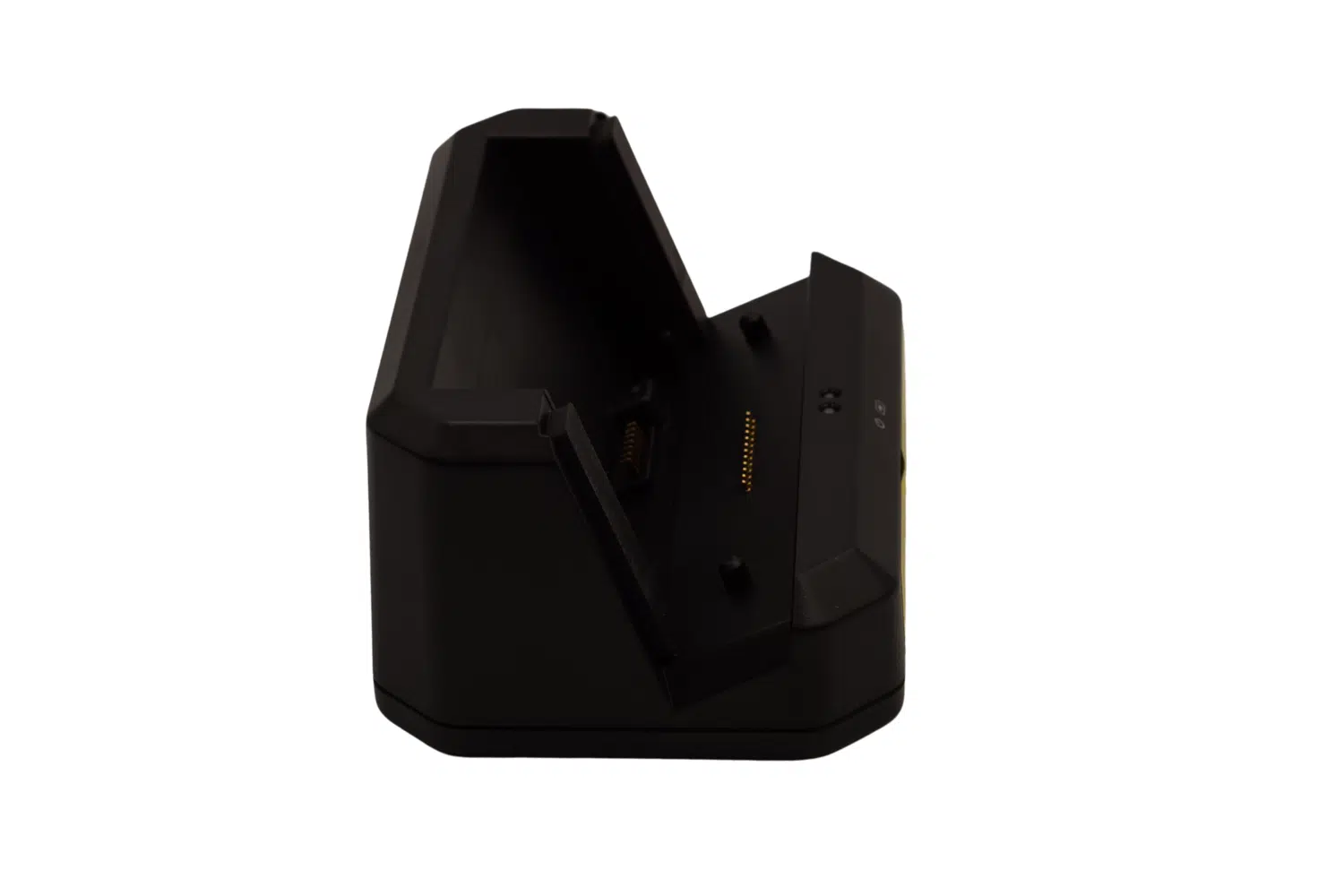

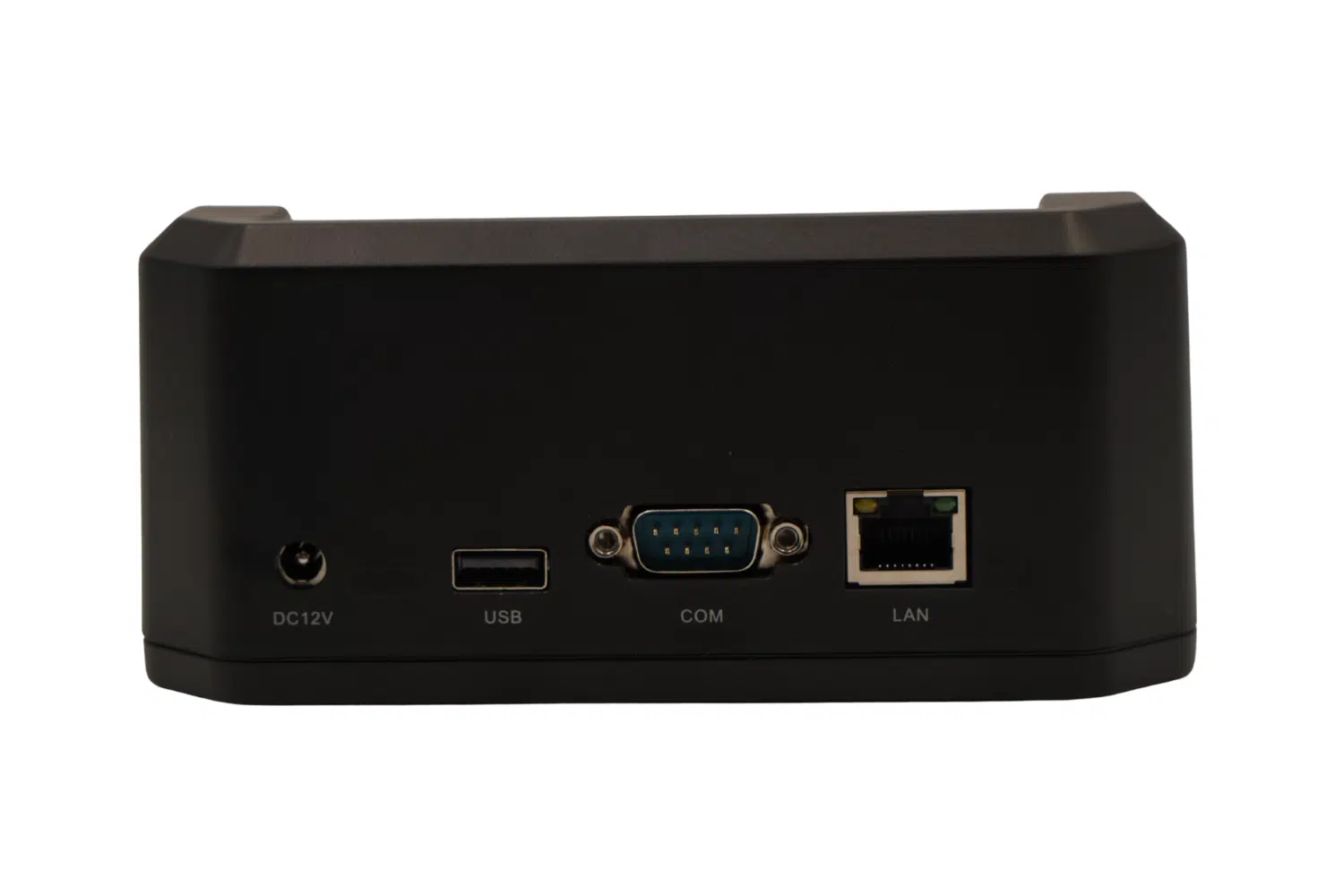

Depending on the application, various accessories can be selected, including a 2D scanner, a backup battery or a docking station.
| System | |
|---|---|
| CPU | MediaTek Helio G99 |
| GPU | ARM Mali-G57 MP2 |
| RAM | Onboard 8GB DDR4 Low Power |
| SSD / HDD | Onboard 128 GB eMMC SSD |
| I/Os | |
|---|---|
| Front | 1 x PowerButton |
| Back | 1 x USB 2.0
1 x USB 2.0 type C (charging / data exchange) 2 x SIM card slot |
| Extensions | |
|---|---|
| WiFi | Intelยฎ Wireless-AC 9461 |
| Bluetooth | Bluetooth 5.2 |
| 4G module | MEIG SLM750 |
| GPS module | uBlox NEO-7M-0-000 |
| NFC | 13.56 MHz, card reading distance: 4cm |
| Environment / Mass | |
|---|---|
| Dimensions (W x D x H) | 155 mm x 236 mm x 20 mm |
| Ambient conditions (operation) | -20ยฐC to +60ยฐC |
| Cooling | passive |
| Idle power consumption in W | 7.2 |
| Display | |
|---|---|
| Size (inch) | 8 |
| Resolution | 1200 x 900 // 16:10 |
| Viewing angle (L,R,H,L) | 85ยฐ / 85ยฐ / 85ยฐ / 85ยฐ |
| Brightness (cd/mยฒ) | 550 |
| Panel type / Backlight | IPS / TFT |
| Further information | 5-point multi-touch |
| Miscellaneous | |
|---|---|
| Operating system | Android 12 |
| Battery capacity | 10000 mAh / 3.8v |
| Power supply | USB type C (9V / 2A) |
| Standards & Certificates | CE, IP65 Waterproof and Dustproof, MIL-STD-810H certified |
| Class A warning | The device is intended for use in industrial environments. Operation of this device may cause radio interference in residential areas. |
| Warning for 802.11a use | If you want to use the WLAN module according to 802.11a in the 5 GHz range: Use in the 5150 MHz โ 5350 MHz frequency range is only permitted indoors! |
