-20ยฐC UP TO +60ยฐC
4G MODULE
FANLESS

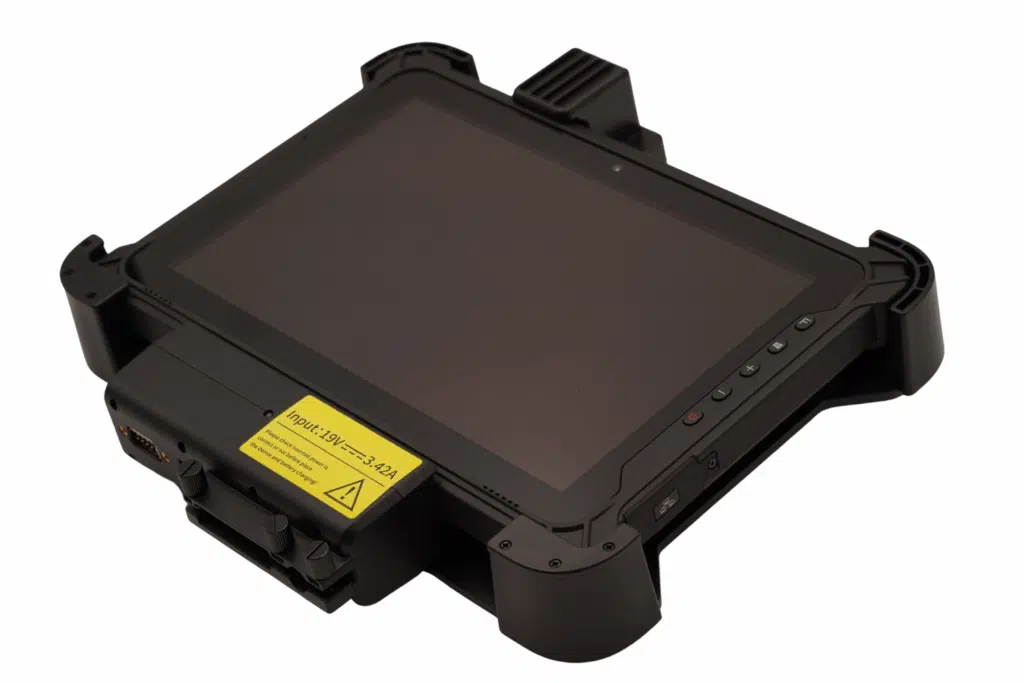

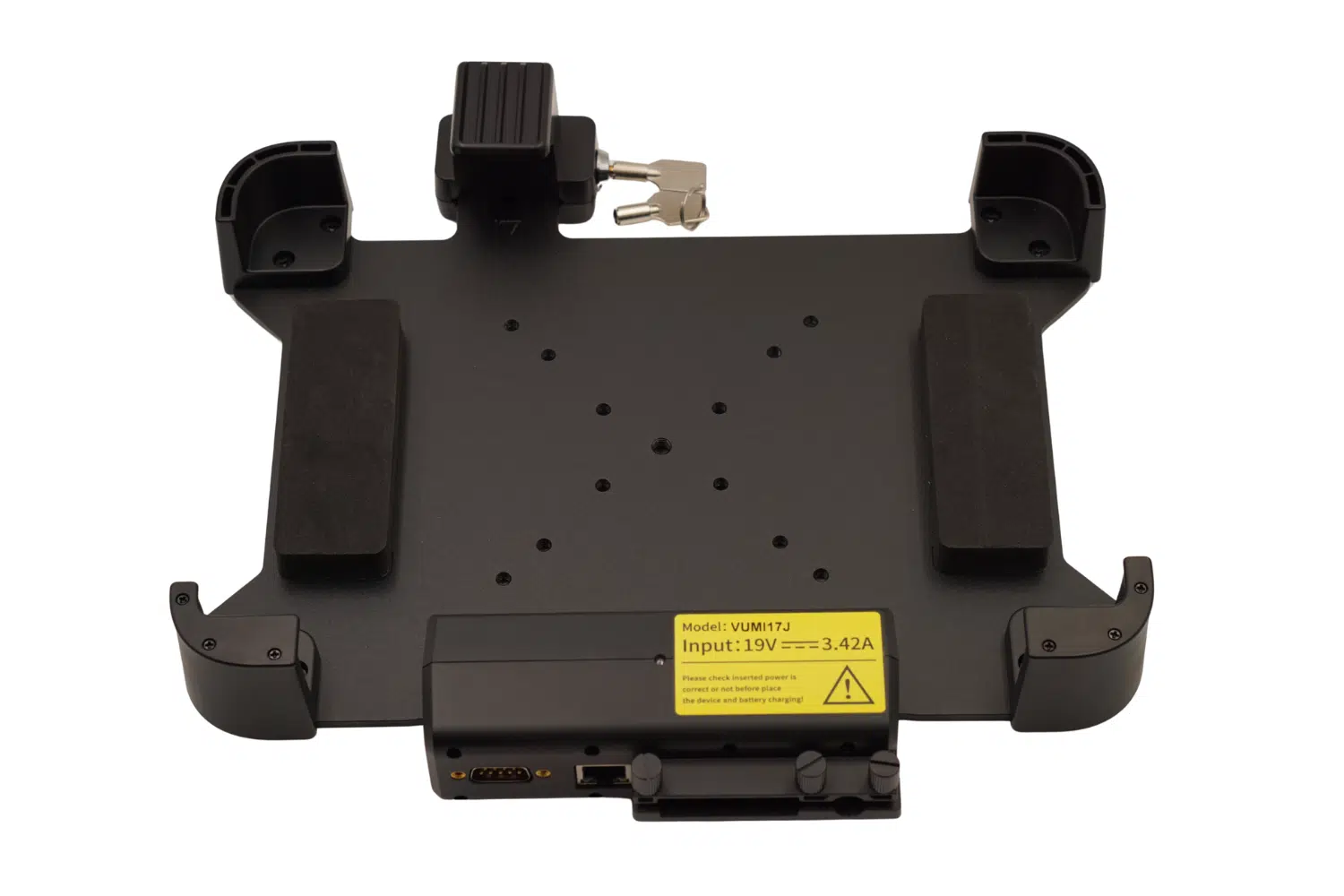

GPS MODULEAn additional backup battery can be purchased for use cases in which the tablet is not near a charging station. An optional 2D barcode scanner is available for retail or logistics. If you use the RUGGED Tab on the move, for example on construction sites or in a forklift truck, you can also purchase a vehicle mount. A docking station is also available as an accessory.

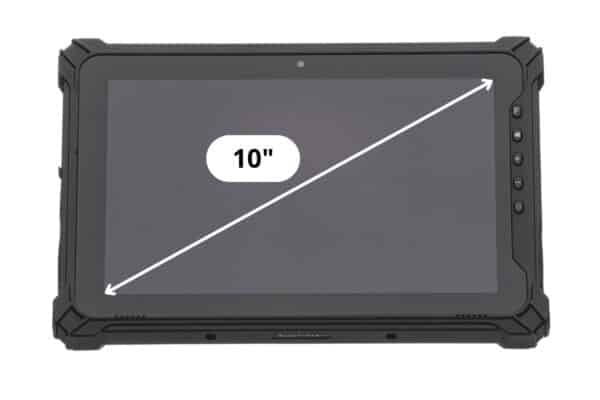

The RUGGED Tab 10 N5100 Entry has two USB ports, as well as an HDMI 1.4a port that can play content in a resolution of 4K. The display has a size of 10.1โณ with a resolution of 1920ร1200 pixels. The tablet has a front camera with 5MP and a rear camera with 8MP.
| System | |
|---|---|
| CPU | Intelยฎ Celeronยฎ N5100 (FCBGA1338, 4 cores) |
| GPU | Intelยฎ UHD Graphics |
| RAM | Onboard 8GB LowPower DDR4X |
| SSD / HDD | Onboard 128 GB eMMC |
| I/Os | |
|---|---|
| Front | 1 x mini HDMI 1.4a
1 x USB 3.1 gen 2ร1 type C 1 x LINE-Out 1 x USB 3.0 |
| Back | 1 x Gigabit LAN
1 x microSD card slot 1 x SIM card slot |
| Environment / Mass | |
|---|---|
| Dimensions (W x D x H) | 274.9 mm x 188.7 mm x 23.1 mm |
| Ambient conditions (operation) | -20ยฐC to +60ยฐC |
| Cooling | passive |
| Idle power consumption in W | 10.3 |
| Extensions | |
|---|---|
| M.2 | KeyM 2280
KeyM 2280 KeyE 2230 |
| WiFi | Intelยฎ Wireless-AC 9461 |
| Bluetooth | Bluetooth 5.1 |
| 4G module | MEIG SLM750 |
| GPS module | uBlox NEO-7M-0-000 |
| Display | |
|---|---|
| Size (inch) | 10.1 |
| Resolution | 1920 x 1200 (WUXGA) // 16:10 |
| Viewing angle (L,R,H,L) | 85ยฐ / 85ยฐ / 85ยฐ / 85ยฐ |
| Brightness (cd/mยฒ) | 400 |
| Panel type / Backlight | IPS/ LCD |
| Further information | 10-point multi-touch |
| Miscellaneous | |
|---|---|
| Operating system | Windows 10 / 11 |
| Battery capacity | 5000 mAh / 7.6V |
| PSU | 19 V / 3.42A (docking station) |
| Standards & certificates | IP65 Waterproof & Dustproof
MIL-STD-810G certified CE |
| Class A warning | The device is intended for use in industrial environments. Operation of this device may cause radio interference in residential areas. |
| Warning for 802.11a use | If you want to use the WLAN module according to 802.11a in the 5 GHz range: Use in the 5150 MHz โ 5350 MHz frequency range is only permitted indoors! |
