-10ยฐC UP TO +50ยฐC
10-POINT TOUCH
TABLET-PCThanks to MIL-STD-810G and IP65 certification, it is optimally protected against shocks, dust and water and can withstand extreme temperatures from -10ยฐC to +50ยฐC. The WUXGA display (1920ร1200) ensures a clear display, while the slim and robust housing (192 x 283 x 15 mm) enables comfortable use in everyday mobile working life.

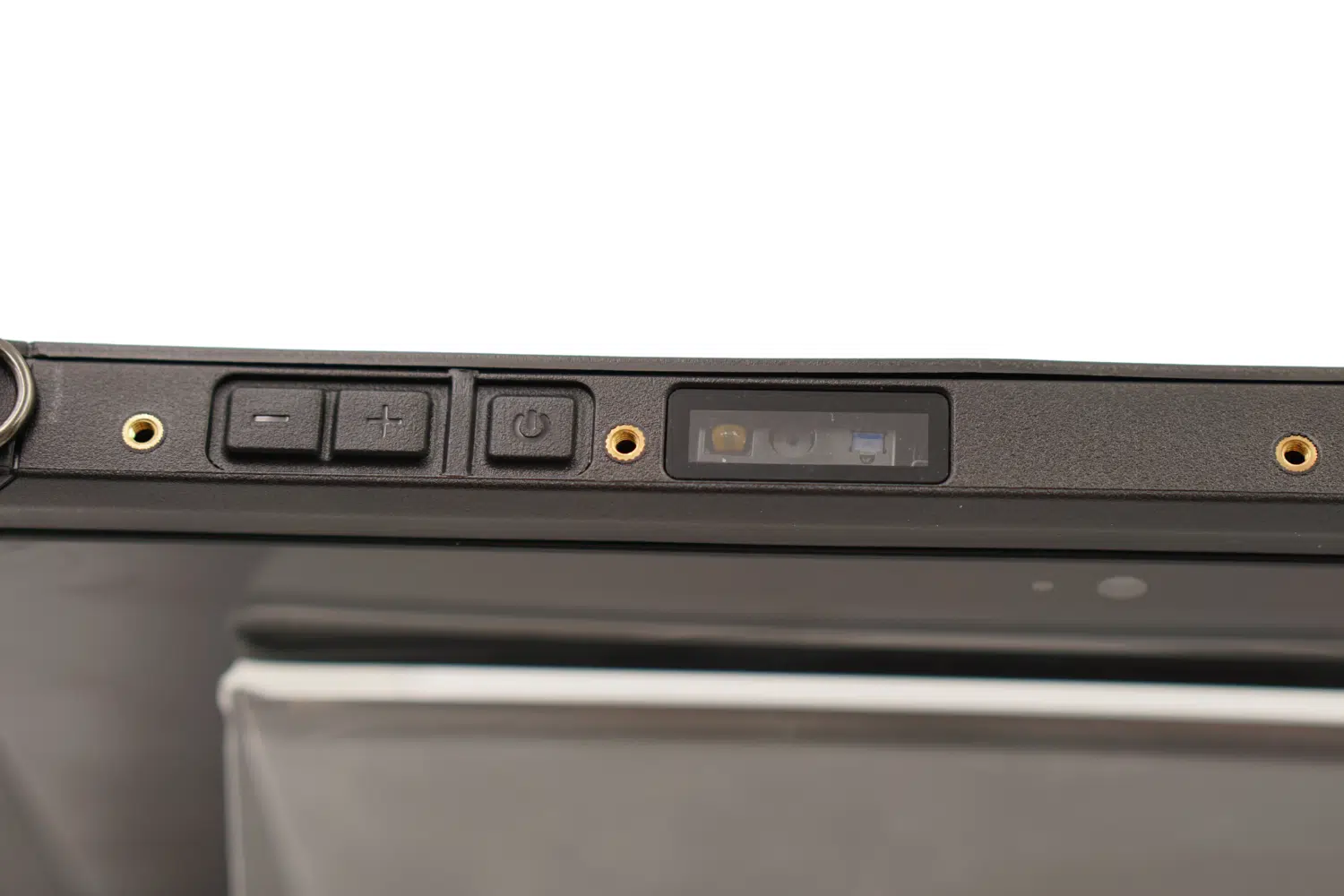

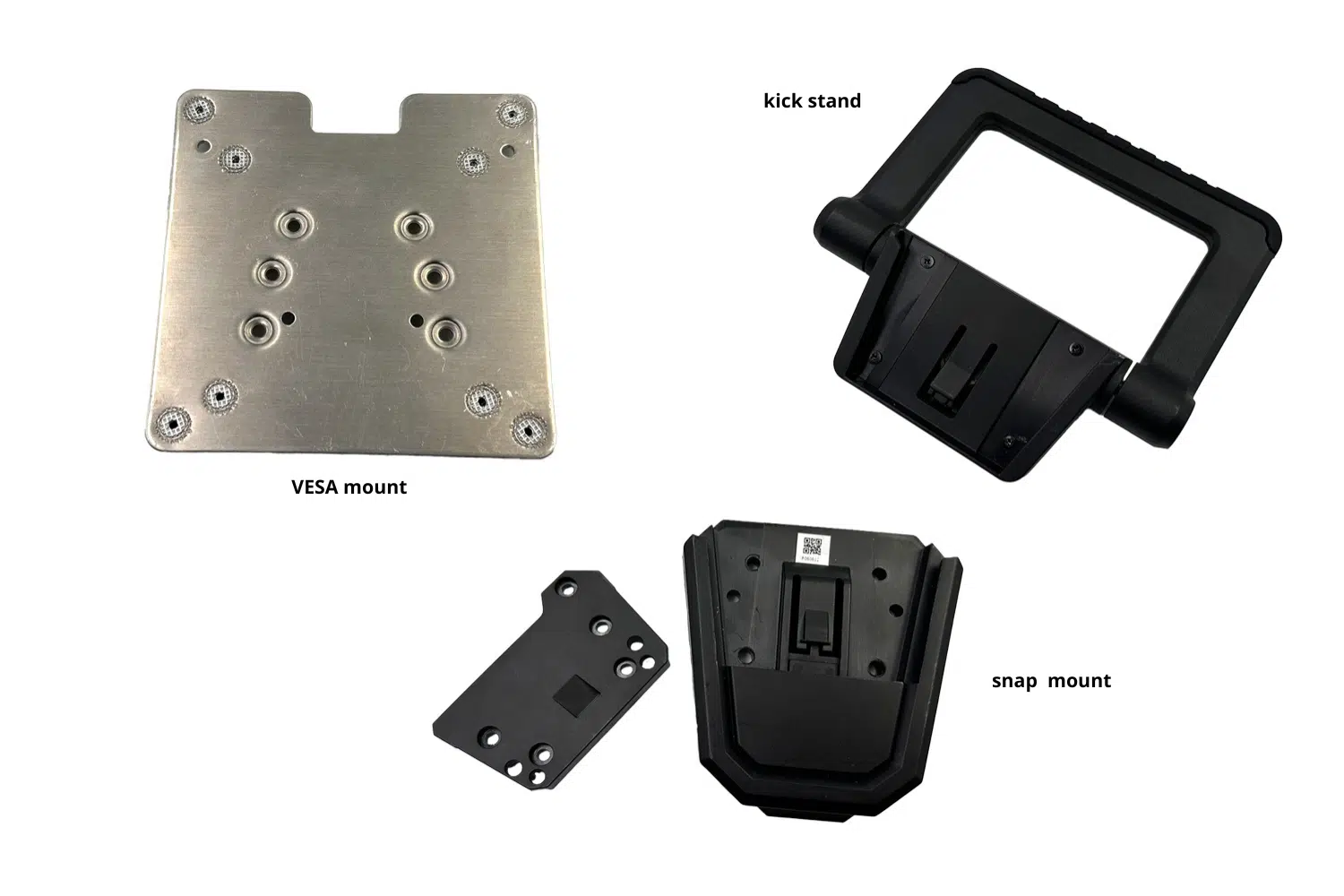

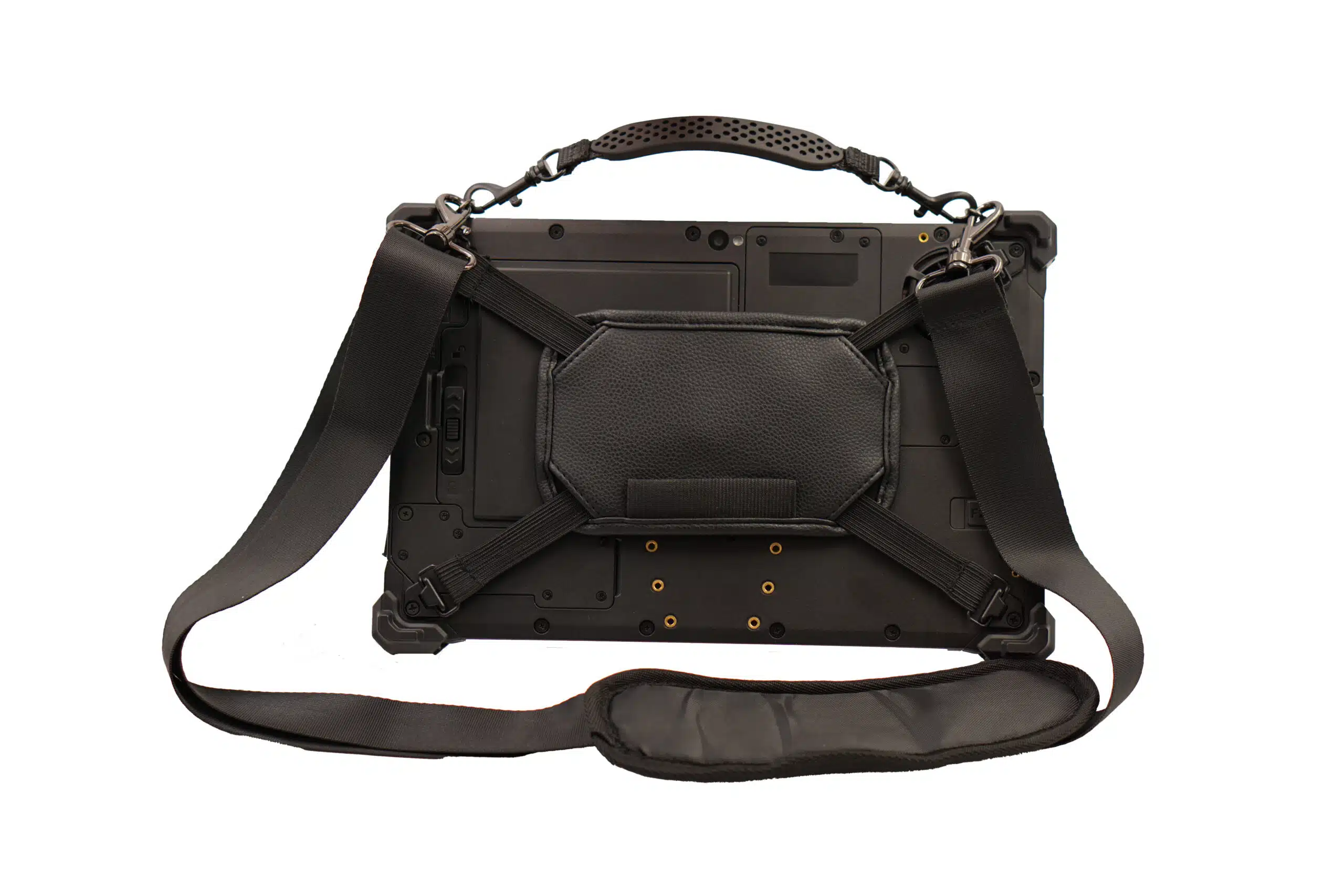

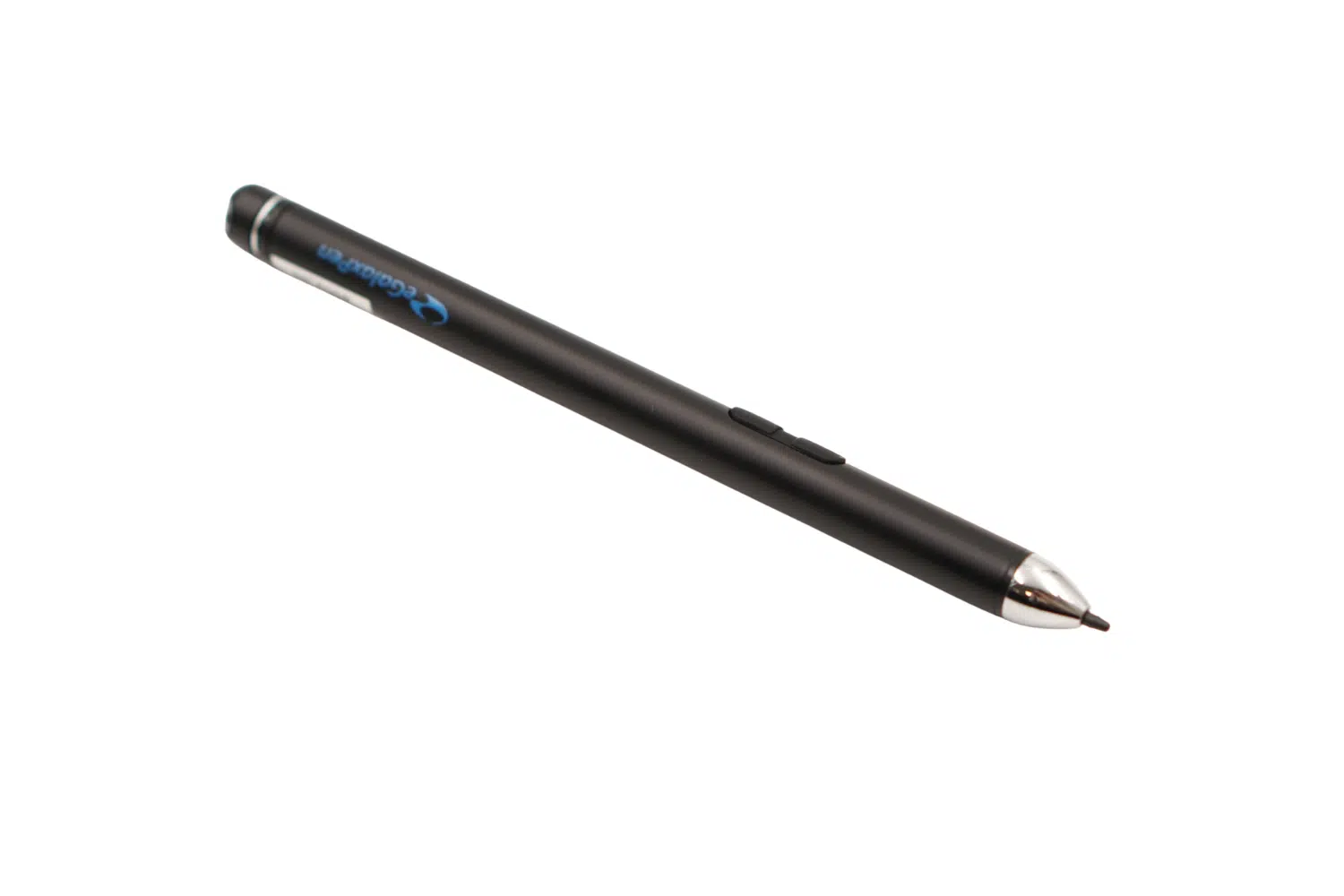

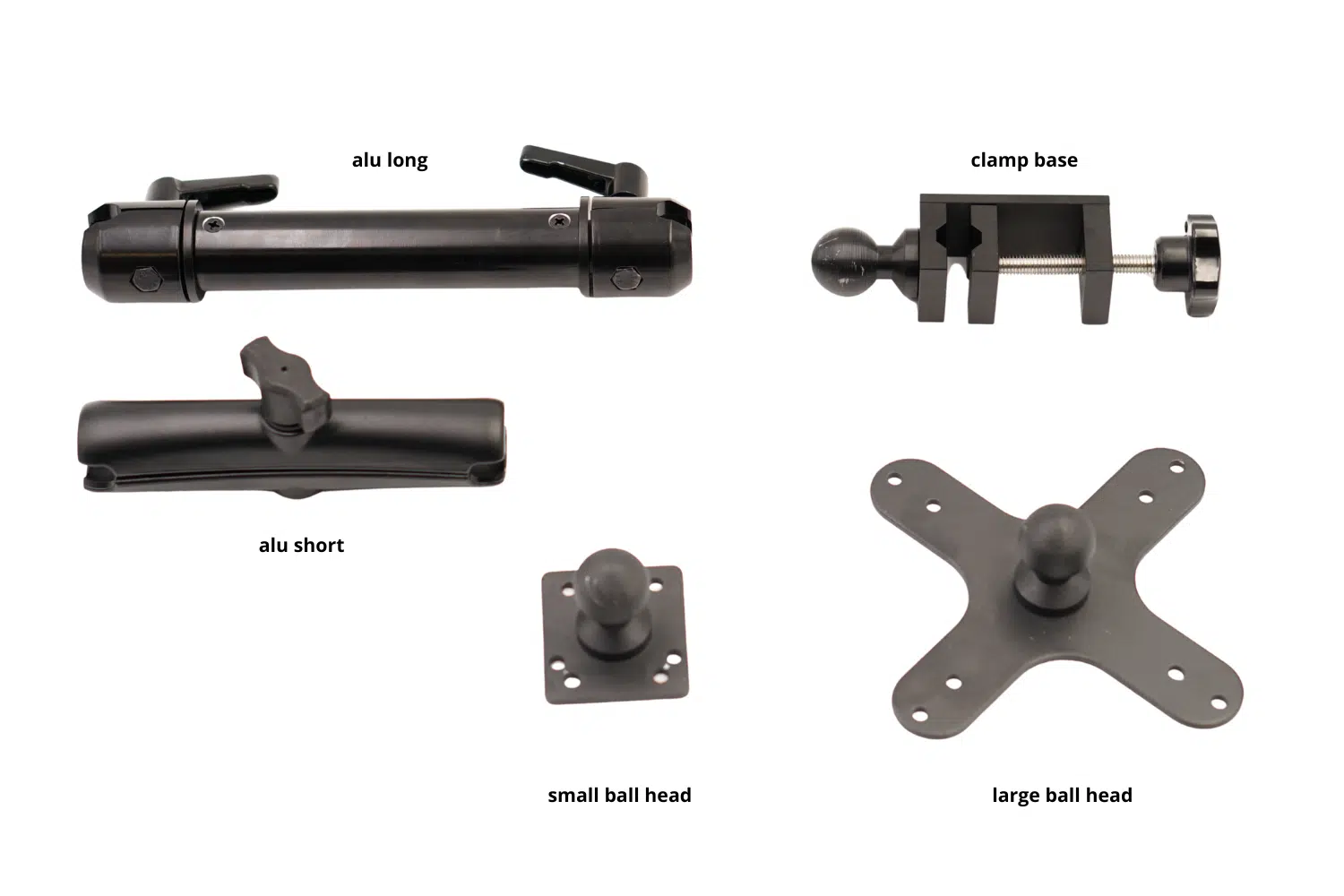

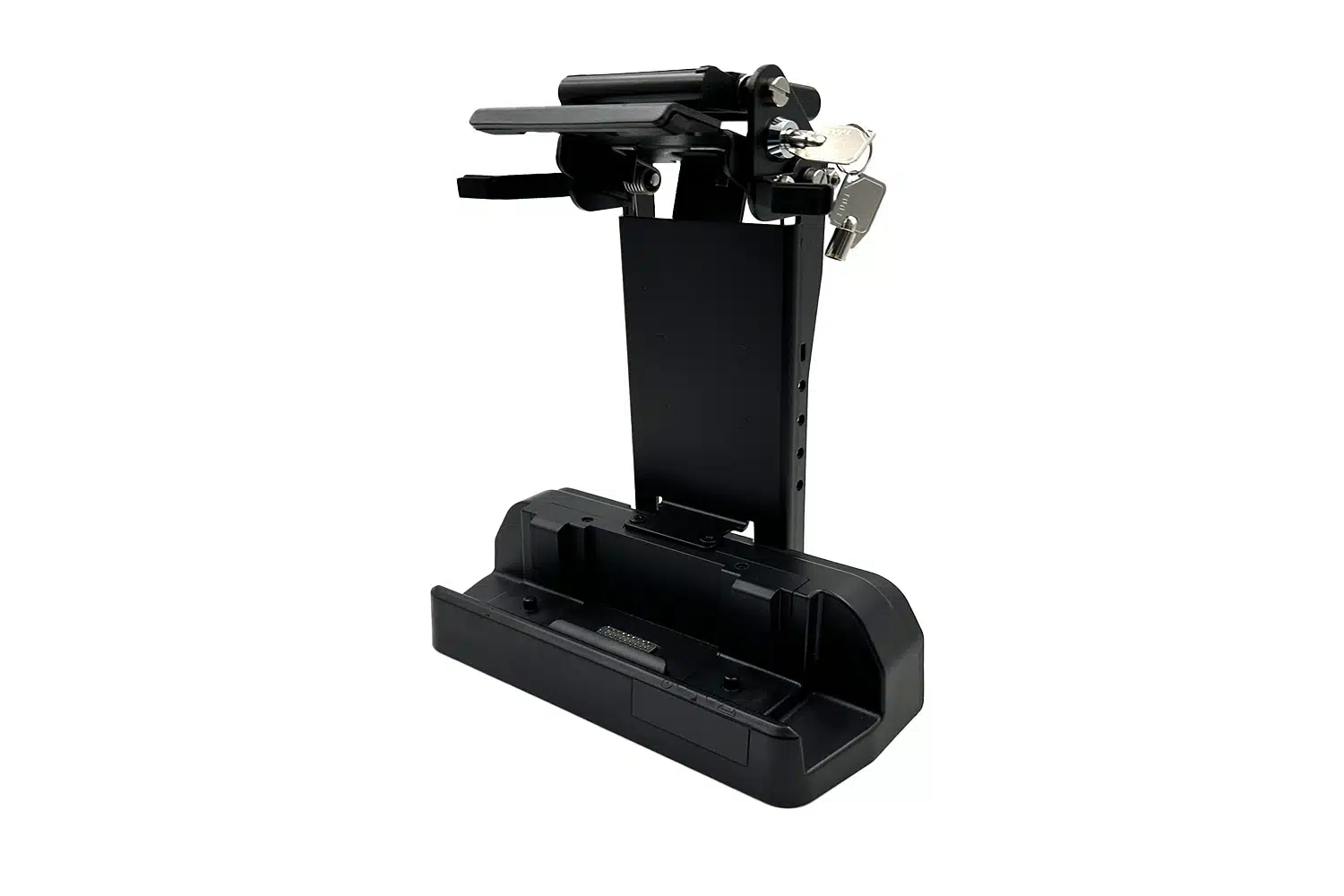

The tablet is compatible with a wide range of accessories to meet the individual requirements of a wide variety of applications. These include vehicle and office docks, stylus pens, carrying handles and an integrated 2D barcode scanner for fast data capture. Whether for logistics, machine control or field service โ the RUGGED Tab 10 N100 Pro impresses with its robustness, high performance and versatility.
| System | |
|---|---|
| CPU | Intelยฎ N100 (4x 0.80 GHz, max. 3.4 GHz) |
| GPU | Intelยฎ UHD Graphics 24EU |
| RAM | Onboard 16GB DDR5 |
| SSD / HDD | 256 GB M.2 NVMe |
| I/Os | |
|---|---|
| Front | 1 x USB 3.2 Gen 2ร1
1 x USB 3.2 Gen 2ร1 Type C |
| Back | 1 x Gigabit LAN
1 x microSD card slot 1 x SIM card slot 1 x Kensington Lock 1 x CTIA jack plug |
| Environment / Mass | |
|---|---|
| Dimensions (W x D x H) | 283 mm x 192 mm x 15 mm |
| Ambient conditions (operation) | -10ยฐC to +50ยฐC |
| Cooling | passive |
| Idle power consumption in W | 9.5 |
| Extensions | |
|---|---|
| M.2 | KeyM 2280 (PCIe Gen4 x4 NVMe)
KeyB 2242 |
| WiFi | Intel Killerโข Wi-Fi 6E AX1675 |
| Display | |
|---|---|

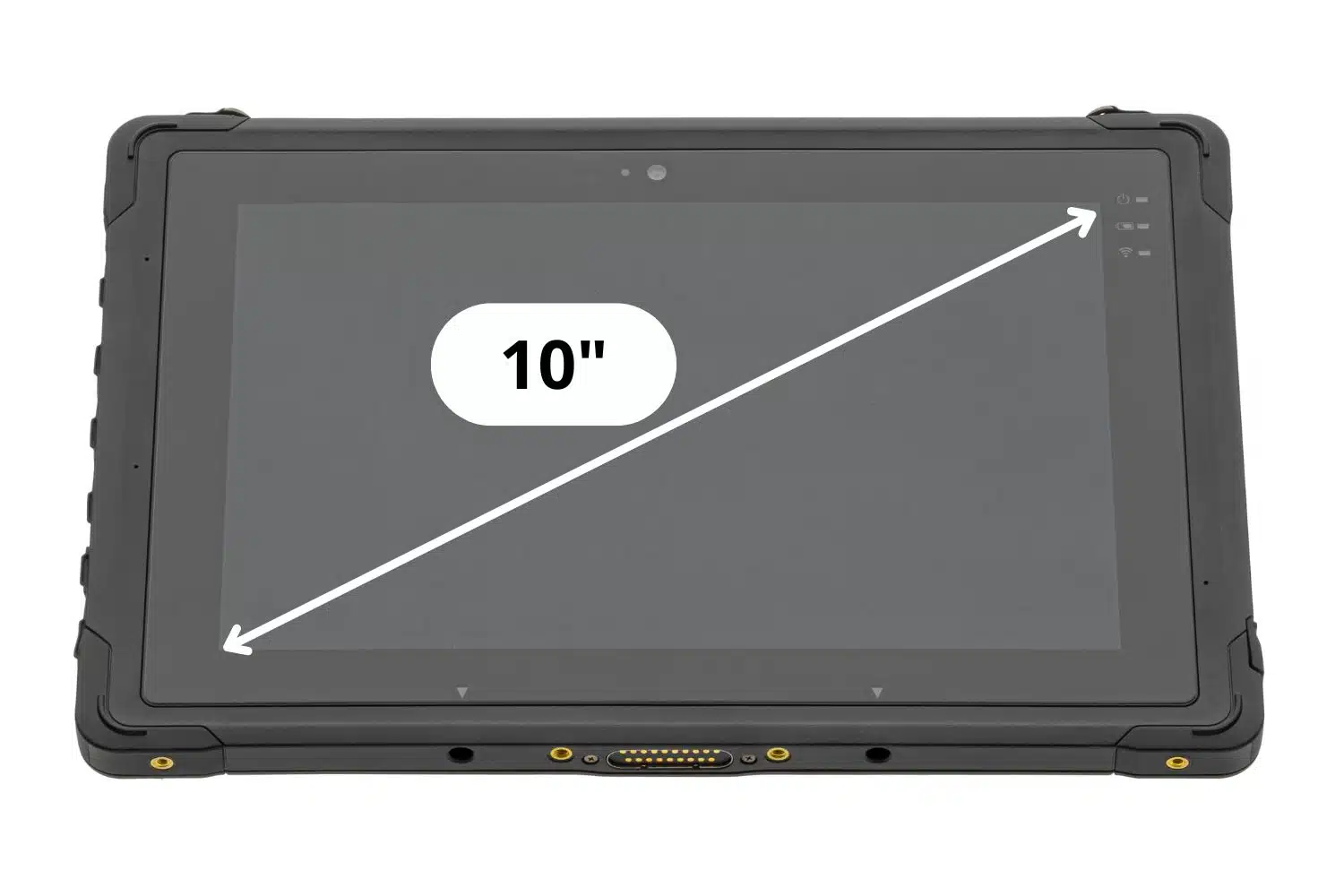

| Size (inch) | 10.1 |
| Resolution | 1920 x 1200 (WUXGA) // 16:10 |
| Viewing angle (L,R,H,L) | 85ยฐ / 85ยฐ / 85ยฐ / 85ยฐ |
| Brightness (cd/mยฒ) | 800 |
| Panel type / Backlight | IPS/ LED |
| Further information | 10-point multi-touch |
| Miscellaneous | |
|---|---|
| Operating system | Windows 10 / 11 / Ubuntu |
| Battery capacity | 4170 mAh / 7.68 V |
| PSU | |
| Standards & certificates | IP65 Waterproof & Dustproof
MIL-STD-810G certified CE |

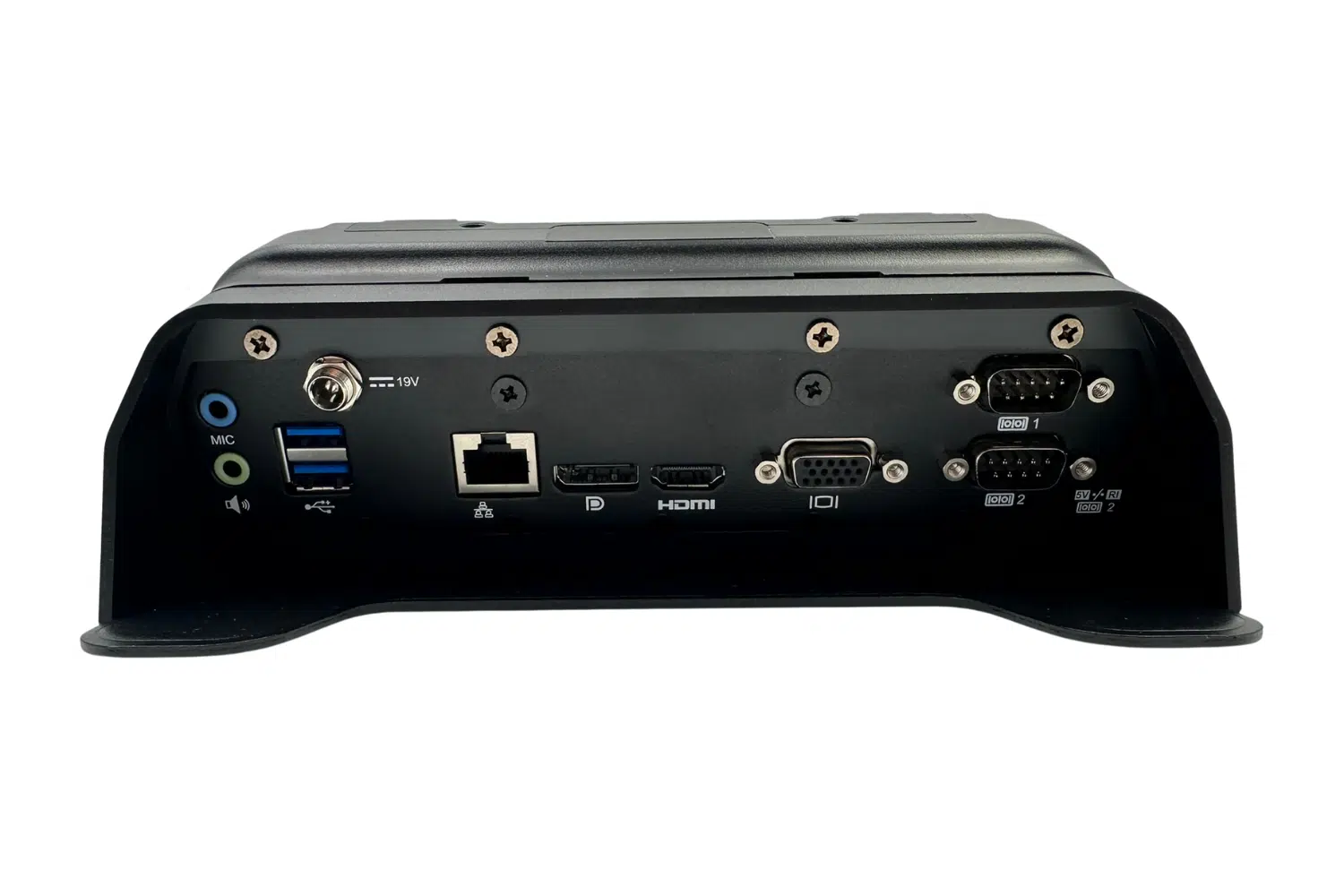

| Docking station & vehicle mount connections | 2x USB, 2x COM, 1x HDMI, 1x VGA, 1x Mic In, 1x Line-Out, 1x LAN, 1x DCin 19V |
| Class A warning | The device is intended for use in industrial environments. Operation of this device may cause radio interference in residential areas. |
| Warning for 802.11a use | If you want to use the WLAN module according to 802.11a in the 5 GHz range: Use in the 5150 MHz โ 5350 MHz frequency range is only permitted indoors! |
