ONE H610 - Affordable digital signage PC

Consulting
Technical data
Configure

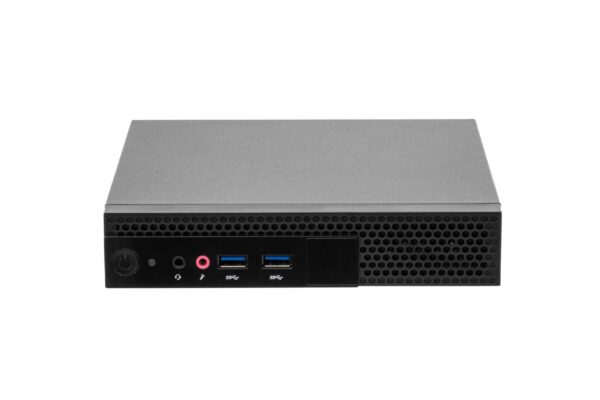

ONE H610 Vorderseite
ONE H610 - Image 2
ONE H610 Rückseite
ONE H610 - Image 4
ONE H610 - Image 5

Powerful entry-level industrial PC

At the heart of the ONE H610 is its Intel® Core™ i3-14100 processor (optionally also i5-14400 or i7-14700), which is combined with 16GB RAM and a 512GB NVMe SSD. The system is the perfect companion in price-sensitive digital signage applications that require high performance.

Your configuration

Testing sample

IPC for Digital Signage & Thin Client

Thanks to its three video outputs (1x DisplayPort, 2x HDMI) and compact dimensions of just 36 x 180 x 180 mm, the ONE H610 is perfect for digital signage applications where space is at a premium. WLAN is also already integrated in this mini PC.

The robust housing offers space for a total of 9 USB ports (4x USB 2.0, 4x USB 3.2, 1x USB 3.2 type C), 1x LAN, a SIM card slot, two audio ports and 1x Kensington lock and can therefore also be used as a thin client.

Technical data

System
CPU Intel® Core i3-14100 (4x 3.5 GHz)

Intel® Core i5-14400 (6x 2.5 GHz & 4x 1.8 GHz)

Intel® Core i7-14700 (8x 2.1 GHz & 16x 1.5 GHz)
GPU Intel® UHD Graphics 730
RAM 16 GB SO-DDR4
SSD / HDD 512 GB M.2 NVMe SSD



I/Os
Front 1 x PowerButton

2 x USB 3.2

1 x Line-Out

1 x Mic-In
Back 1 x Kensington Lock

2 x HDMI 2.0

1 x DisplayPort 1.2

2 x USB 3.2

4 x USB 2.0

1 x Gigabit LAN





Environment / Mass
Dimensions (W x D x H) 180 mm x 180 mm x 36 mm
Ambient conditions (operation) 0°C to +40°C
Cooling active
Idle power consumption in W 22.1



Extensions
M.2 Key M 2280

Key A 2230

Key E 3052



Miscellaneous
Operating system Windows 10 / 11
PSU 12/19V / 90W
Standards & Certificates CE, FCC
Class A warning The device is intended for use in industrial environments. Operation of this device may cause radio interference in residential areas.
Warning for 802.11a use If you want to use the WLAN module according to 802.11a in the 5 GHz range: Use in the 5150 MHz – 5350 MHz frequency range is only permitted indoors!
