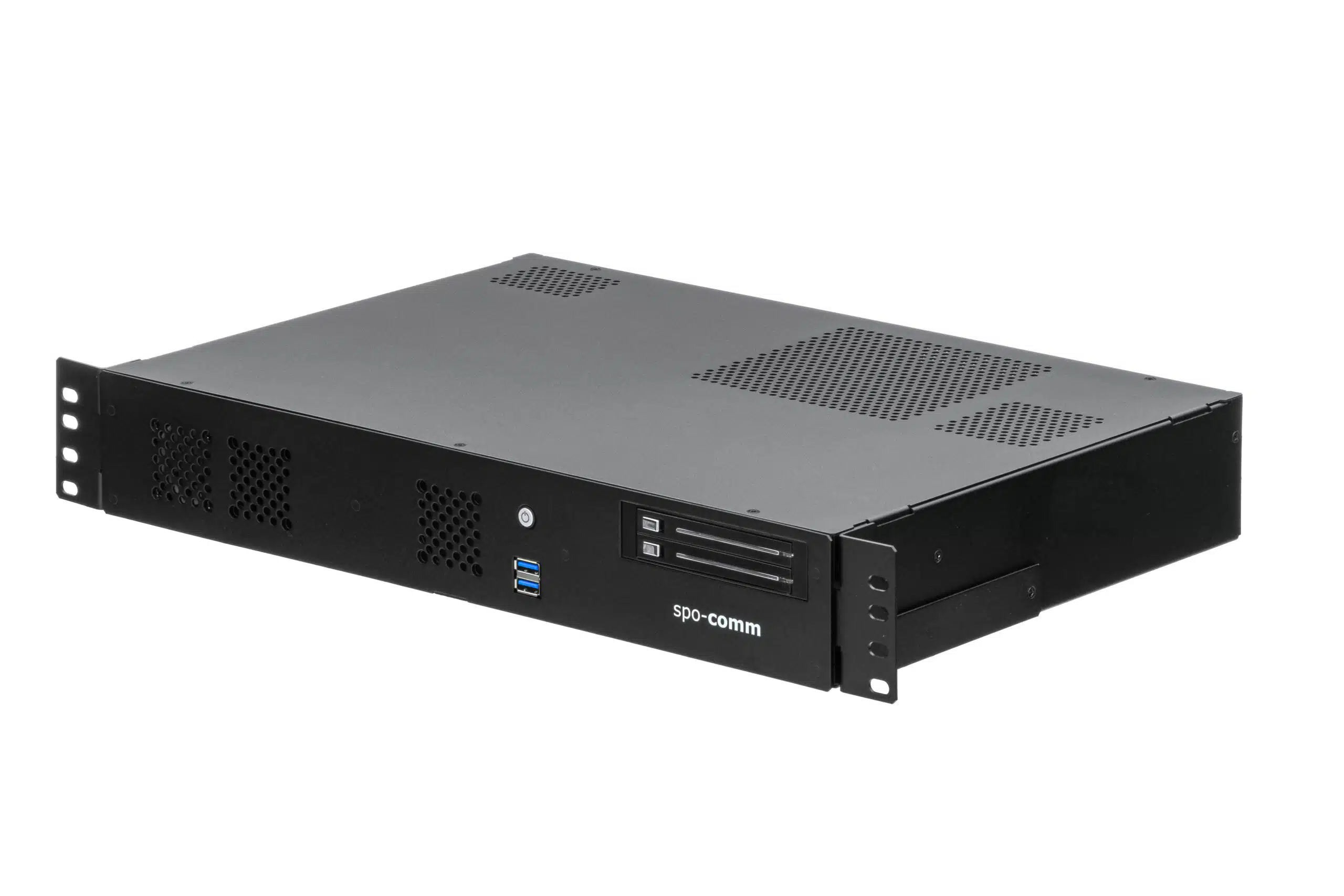

Server PC with optional Nvidia GPU

The NINETEEN Q670E is the perfect PC for server applications and can also be used in areas such as deep learning, industrial monitoring and for AI calculations thanks to its optional Nvidia RTX graphics card. With its extended temperature range from 0°C to +60°C and a height of 1.5 U, the Mini-PC the Mini-PC is perfect for use as a server.

Your configuration

Testing sample

Hot Swap, PCIe, iAMT, Wake on LAN

The NINETEEN Q670E comes with some special features. In addition to the option of installing several SSDs in a RAID array, this also includes a PCIe slot for installing an optional Nvidia graphics card. The system also supports iAMT and Wake on LAN.

The housing of the NINETEEN has space for a wide variety of connections. In addition to a total of ten USB ports (2x USB 2.0, 3x USB 3.2 Gen2, 4x USB 3.2, 1x USB C), there is also a Gigabit LAN port, a 2.5 Gbps LAN port and four DisplayPort 1.4a ports with a maximum resolution of up to 3840×2160 @ 60Hz (4K)

Technical data



System
CPU Intel® Core i5-12500T (FCLGA1700, 6 cores)
CHIPSET Intel® Q670E
GPU Intel® UHD Graphics 770 (integrated),

Nvidia® RTX A2000 (12GB DDR6) (optional)

Nvidia® RTX 2000 (16GB DDR6) (optional)

Nvidia® RTX 4000 (20GB DDR6) (optional)
RAM 16 GB SO-DDR5 (optional up to 64GB)
SSD / HDD 512 GB M.2 PCIe 4.0 NVMe (optional up to 2TB)

2 x 2.5″ SATA3 SSD/HDD



I/Os
Front 1 x power button

2 x USB 3.2 Gen1
Back 2 x audio port (LINE-In, LINE-Out)

1 x Gigabit LAN

1 x 2.5 Gbps LAN

2 x USB 2.0

2 x USB 3.2 Gen1

3 x USB 3.2 Gen2

1 x USB C 3.2 Gen2

4 x DisplayPort 1.4a

1 x COM RS232 (optional)



Environment / Mass
Dimensions (W x D x H) 424 mm x 298 mm x 68 mm
Ambient temperature (operation) 0° to +60°C
Cooling active
Idle power consumption in W 13,5
Wall bracket no



Extensions
M.2 KeyM 2242 (occupied)

KeyE 2230
PCIe 1 x (x16 slot with x16 connection each)



Miscellaneous
Operating system Windows 10 / 11 / Linux
PSU 100V – 240V AC
Standards & Certificates CE, FCC Class A, RCM, BSMI, VCCI, UKCA, IC, IEC 62368: CE(LVD) / BSMI
Special features The temperature range changes with an additional GPU.
Class A warning The device is intended for use in industrial environments. Operation of this device may cause radio interference in residential areas.
