    Ultra-compact, versatile Mini-PC

    The CORE 3 is equipped with a powerful Intelยฎ Coreยฎ i3-N305 CPU with 8 efficiency cores with up to 3.8GHz and can be used in a variety of application areas โ€“ thanks to various connections from DisplayPort to COM and LAN Whether digital signage, industrial control or as a thin client: the CORE 3 is your constant companion.
    15 WATT TDP15 WATT TDP
    3 X 4K VIDEO RESOLUTION3 X 4K VIDEO RESOLUTION
    Digital SignageDigital Signage

    CPU 1 CPU

    Intelยฎ Coreโ„ข i3-N305, 8x 1.8 GHz

    Graphics card 3 Graphics card

    SSD / HDD 4 SSD / HDD

    Expansion 5 Expansion

    Operating system 6 Operating system

    Add-Ons 7 Add-Ons

    Warranty 8 Warranty

    750,00 โ‚ฌplus VAT + plus shipping

    Your configuration

    Testing sample

    A variety of connections in the smallest housing

    Our CORE 3 scores above all with its housing measuring just (H x W x D): 36mm x 147mm x 165mm, which nevertheless provides a wide variety of connections. Up to three DisplayPorts (one of which is optional via USB Type C) allow content to be played back in 4K resolution (3840 x 2160 pixels) โ€“ even with sound thanks to the two audio outputs Mic-in and Line-out. In addition to a total of six USB interfaces, the compact housing of the Mini-PC also features two LAN interfaces and a COM RS232/422/485.

    The heart of the device โ€“ the integrated Intelยฎ Coreยฎ i3-N305 โ€“ also impresses with a power consumption of just 15 watts and is supported by up to 32 GB of RAM and up to 2 TB of mass storage

    Technical data

    System
    CPU Intelยฎ Core i3 N305 (8 cores)
    GPU Intelยฎ UHD Graphics
    RAM 16 GB SO-DDR5
    SSD / HDD 512 GB M.2 NVMe SSD



    I/Os

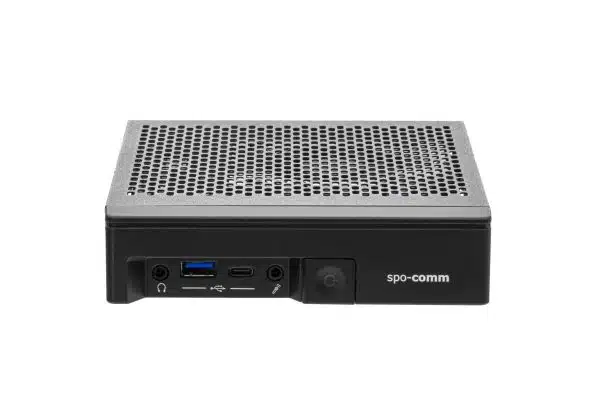

    Front 1 x PowerButton

    1 x USB 3.2

    1 x USB 3.2 Gen1 Type-C

    1 x Line-Out

    1 x Mic-In
    Back 1 x COM RS232 / 422 / 485

    2 x DisplayPort 1.4a

    1 x Gigabit LAN

    1 x 2.5 Gbps LAN

    4 x USB 3.2





    Environment / Mass
    Dimensions (W x D x H) 148 mm x 165 mm x 35 mm
    Ambient conditions (operation) 0ยฐC to +60ยฐC
    Cooling active
    Idle power consumption in W 9.5



    Extensions
    M.2 KeyE 2230

    KeyM 2230/2242/2280



    Miscellaneous
    Operating system Windows 10 / 11
    PSU 19-28V
    Standards & Certificates CE, FCC
    Class A warning The device is intended for use in industrial environments. Operation of this device may cause radio interference in residential areas.
    Warning for 802.11a use If you want to use the WLAN module according to 802.11a in the 5 GHz range: Use in the 5150 MHz โ€“ 5350 MHz frequency range is only permitted indoors!
