BRICK Pro - the compact all-rounder PC

Compact industrial mini PC with a wide range of connections

  • 4x HDMI 2.0 ports for multi-display applications
  • Robust metal housing, IEC 61373 certified
  • Passively cooled housing
  • Wide range power input 12-24V
Configure now
Download data sheet
BRICK Pro
BRICK Pro - Image 2
Control cabinet PCs - BRICK Pro
BRICK Pro - Image 4
BRICK Pro - Image 5
BRICK Pro - Image 6
temperatur

Erw. Temperature range

0°C to +50°C

4K

Screen resolution

4x 4K@60Hz

9V-36V-Stromeingang

Erw. Power input

12V to 24V

Industrie-PC

Industrial applications

Configure your system

Select the components for your individual requirements

Your configuration

Make a price inquiry
Request a test position
  • Auf Lager
  • 1-3 working days

Highlights at a glance

  • Processor

Intel® Core™ i5-1335UE

2 performance cores, 8 efficiency cores

Boost up to 4.5 GHz (performance) / 3.3 GHz (efficiency)

Energy-efficient for continuous operation

  • Memory

Up to 32GB DDR5 SO-DIMM

Up to 2TB M.2 NVMe SSD

Compact design without loss of performance

Fast read/write speeds

  • Network

4x 2.5Gbps Ethernet LAN

Support for VLAN and industrial protocols

High network stability under load

Flexible configuration for IoT & control

  • Graphics & Display

Intel® UHD Graphics integrated

4x HDMI 2.0 for multi-display

Full HD and UHD support

Fluent display for digital signage

  • Connections

4x USB 3.2 Gen 2×1, 4x USB 2.0

4x COM RS232/422/485

4x HDMI 2.0

1x DIO

  • Industry standard

IEC 61373 Anti-Vibration & Shock Proof

Wide range input 12-24V

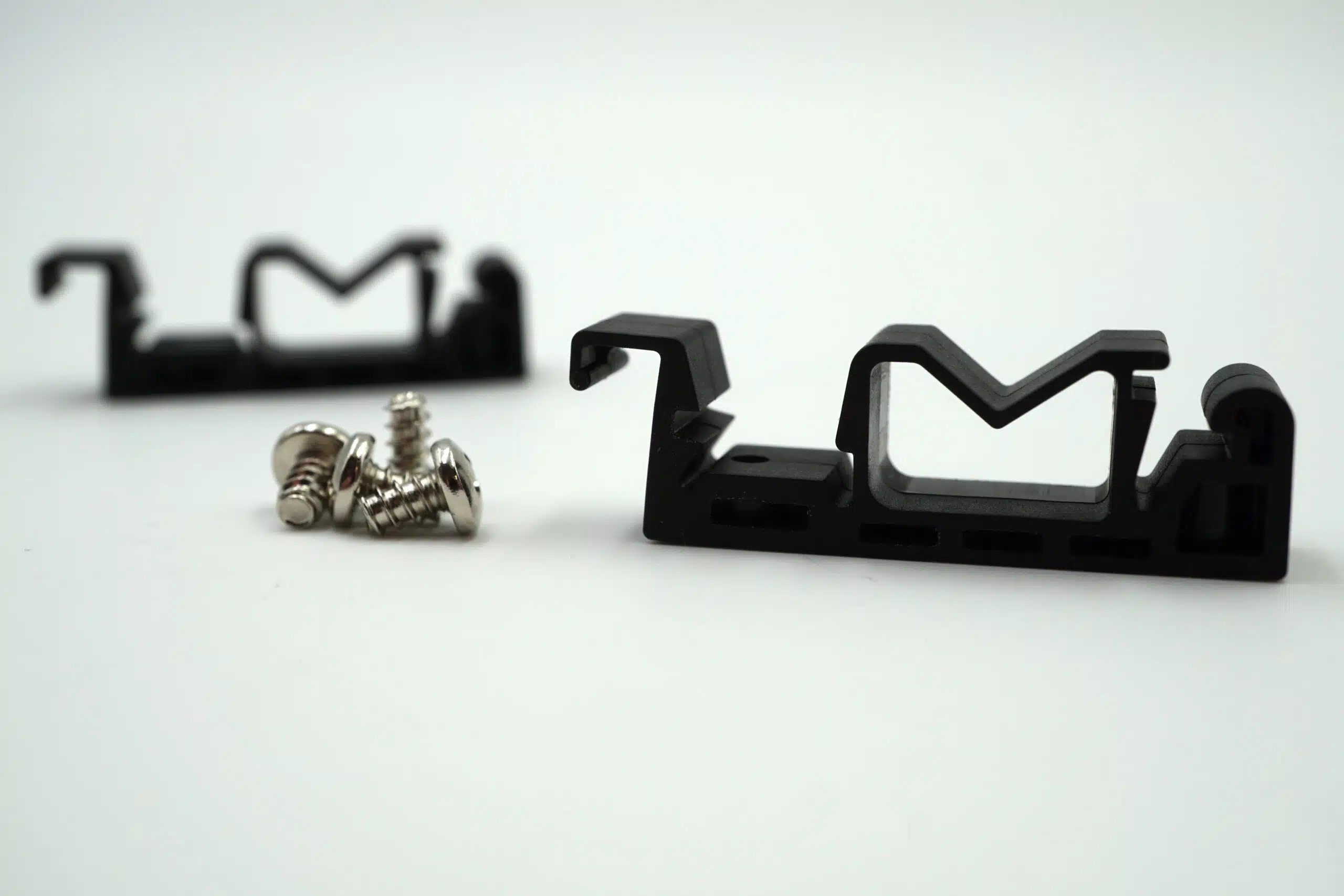

DIN rail mounting option

Operating temperature 0°C – +50°C

Download data sheet

Frequently asked questions

What areas of application does the BRICK Pro cover?

The BRICK Pro is suitable for industrial control applications, digital signage, kiosk systems, IoT and edge computing solutions. Thanks to its wide-range power input, DIN rail mounting and IEC 61373 certification, it works reliably even in harsh environments.


Where does the BRICK Pro stand between BRICK PCs and RUGGED PCs?

The BRICK Pro is the link between the two series: It combines the compact, flexible design of the BRICK series with the robustness and connectivity of the RUGGED PCs, making it ideal for applications that require stability without sacrificing compactness.


Which displays and peripherals can be connected?

Four HDMI 2.0 ports allow up to four Full HD or UHD displays to be operated simultaneously. In addition, eight USB ports, four LAN ports and four COM interfaces are available for a wide range of industrial peripherals.


What are the special features of the CPU and graphics?

The Intel® Core™ i5-1335UE CPU offers 2 performance cores (up to 4.5 GHz) and 8 efficiency cores (up to 3.3 GHz) for maximum energy efficiency and computing power. The integrated Intel® UHD Graphics enables multi-display output with a smooth display.


Discuss project now

Are you planning an industrial, automation or AI project and looking for a reliable industrial PC? Let’s work together to find the optimal solution for your requirements.
Receive offer
Download data sheet
  • Free advice
  • Individual solutions
  • Quick answer

You might also be interested in

Discover more Industrial PC solutions for various applications

QUADRO P1000

QUADRO P1000

  • Intel® Core™ i5-7300U, 2 x 2.6 GHz
  • Digital signage PC
  • 4 independent screens (HDMI)
  • 3x USB, 1x COM, 2x LAN
Learn more
WINDBOX III Ultra

WINDBOX III Ultra

  • Intel® Core™ i5-1335UE
  • Fanless all-rounder PC
  • Up to 4 independent displays
  • 5x USB, 2x COM, 2x LAN
Learn more
BOX J6412

BOX J6412

  • Intel® Celeron® J6412, 4x 2 GHz
  • Industrial PC & Digital Signage
  • Ultra-compact design
  • 2x LAN, 4x USB 3.2, 2x HDMI 2.0
Learn more

BRICK Pro – the perfect balance between flexibility and robustness

The BRICK Pro combines the compact versatility of the BRICK series with the robustness of the RUGGED PCs, making it the ideal all-rounder for industry, digital signage, IoT and more. Despite its passively cooled metal housing with dimensions of 65 x 215 x 155 mm, it offers an impressive variety of connections: four HDMI 2.0 ports, four 2.5 Gbps Ethernet ports, four COM RS232/422/485 interfaces and eight USB ports (4x USB 3.2 Gen 2×1, 4x USB 2.0). This allows several displays to be operated simultaneously, various peripheral devices to be connected and industrial control systems to be implemented efficiently.
0°C UP TO +50°C
4 X 4K@60HZ
INDUSTRY PC
Its robustness makes it particularly reliable: The BRICK Pro operates in the temperature range from 0°C to +50°C, is vibration and shock-tested in accordance with IEC 61373 and supports a wide-voltage power input of 12V-24V. The integrated Intel® Core™ i5-1335UE CPU with 2 performance cores (up to 4.5 GHz) and 8 efficiency cores (up to 3.3 GHz) together with Intel® UHD Graphics enables smooth…
