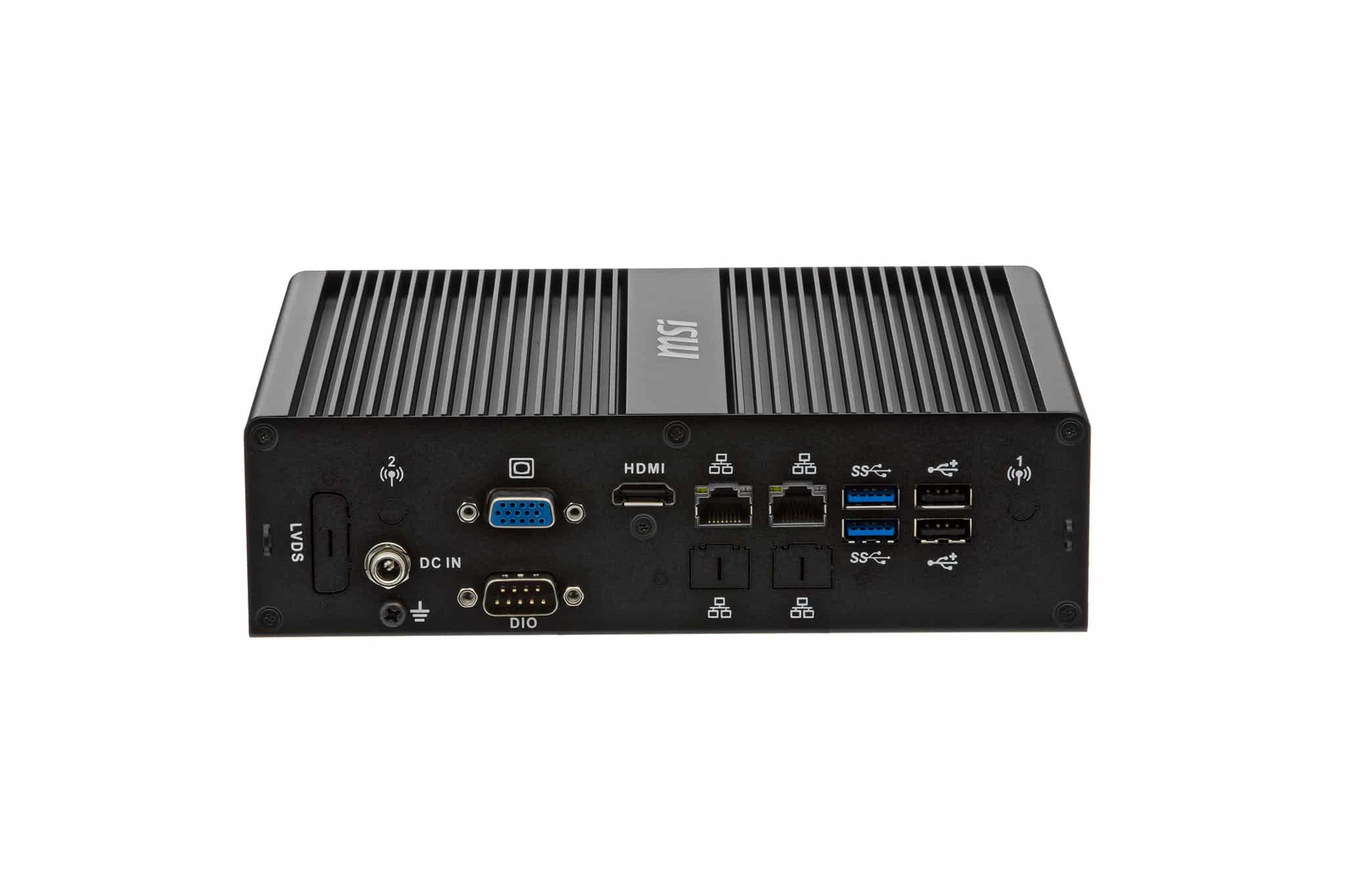

BRICK i3-5010U - Image 2

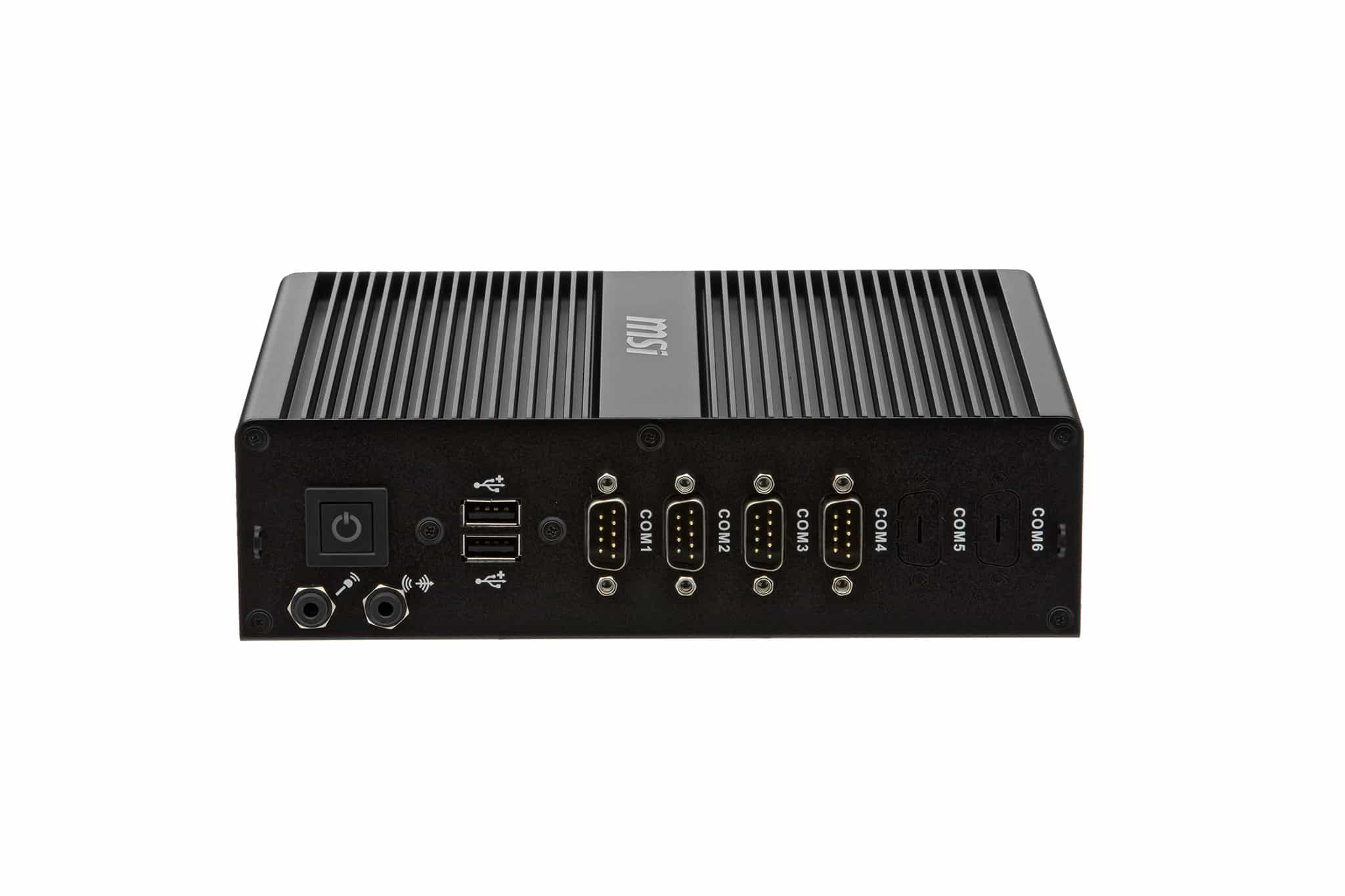

BRICK i3-5010U - Image 3

The industry all-rounder

This compact industrial PC goes by the name of BRICK i3-5010U and satisfies the highest demands in the industrial sector. The robust housing and a variety of interfaces make the BRICK i3 to the ideal partner even for rough conditions..

Your configuration

Testing sample

High-performance and energy-saving

The BRICK i3 is equipped with an Intel® Core i3 5010U CPU with 2 x 2.1 GHz, which is supported by up to 8 GB SO-DDR3 RAM. And all this with an impressively low power consumption of just 15 watts. The industrial PC is housed in a compact, robust metal housing, is cooled without a fan and runs smoothly in the extended temperature range of -10° to +55°C. It feels particularly at home in harsh environments and is the perfect solution for various industrial applications – whether machine control, data measurement or control cabinet.

Technical data

General
CPU Intel® Core i5-5010U
Applications Industrial PC
Idle power consumption in W 15
Ambient conditions -10°C up to +50°C
Cooling passive



Power supply
DC In 19V / 3.42A
Input voltage power supply unit 100 – 240V



Connections
Video output HDMI 1.4, VGA
HDMI 1.4 1
VGA 1
Audio output 1x line-in, 1x line-out
Gigabit LAN 2
USB 2.0 6
USB 3.0 / 3.1 0
COM RS232 3
COM RS232/422/485 1
2.5″ drive 1



Dimensions
Height 55 mm
Width 200 mm
Depth 155 mm
Wall bracket yes
VESA mount 100×100



Graphic
Integrated graphics Intel® HD Graphics
Independent image output 1
Video resolution FHD



Miscellaneous
Operating system Windows 10 IoT Enterprise 2019 LTSC Value
Class A warning The device is intended for use in industrial environments. Operation of this device may cause radio interference in residential areas.
Warning for 802.11a use If you want to use the WLAN module according to 802.11a in the 5 GHz range: Use in the 5150 MHz – 5350 MHz frequency range is only permitted indoors!
