BOX J6412 - Ultra-compact DS player

Compact mini PC for 4K multimedia and industrial use

  • Intel® Celeron® J6412 CPU with up to 2.6 GHz
  • Passively cooled, energy-saving design (8 W TDP)
  • 2x HDMI 2.0 for 4K output on two screens
  • Versatile connections: USB 3.2, COM RS-232, 2x Gigabit LAN
Configure now
Download data sheet
BOX J6412
BOX J6412 - Image 2
BOX J6412 - Image 3
BOX J6412 - Image 4
BOX J6412 - Image 5
4K

4K video resolution

2x 4K @ 60Hz

TDP

Low power consumption

8 Watt TDP

Industrie-PC

Industrial mini PC

Super compact and quiet

luefterlos

Fanless

Passively cooled PC

Configure your system

Select the components for your individual requirements

Your configuration

Make a price inquiry
Request a test position
  • Auf Lager
  • 1-3 working days

Highlights at a glance

  • Processor

Intel® Celeron® J6412 processor
4 cores with up to 2.6 GHz turbo clock frequency
Energy-efficient CPU with 10 watt TDP
Ideal for digital signage and industrial applications

  • Memory

1x SO-DDR4 RAM (max. 32)
1x M.2 PCIe 3.0 x2 SSD or M.2 SATA3 SSD

  • Network

2x Gigabit LAN
Optional WiFi 6

  • Graphics & Display

Integrated Intel® UHD graphics
Max. Resolution up to 4K @ 60Hz
Support for 2 displays simultaneously
Ideal for digital signage

  • Connections

4x USB 3.2 Gen 2×1
1x COM RS232 for industrial peripherals
2x HDMI 2.0 (4K @ 60Hz)
Further I/O: 1x Line-Out

  • Industry standard

Passively cooled metal housing

Temperature range: 0°C to +50°C

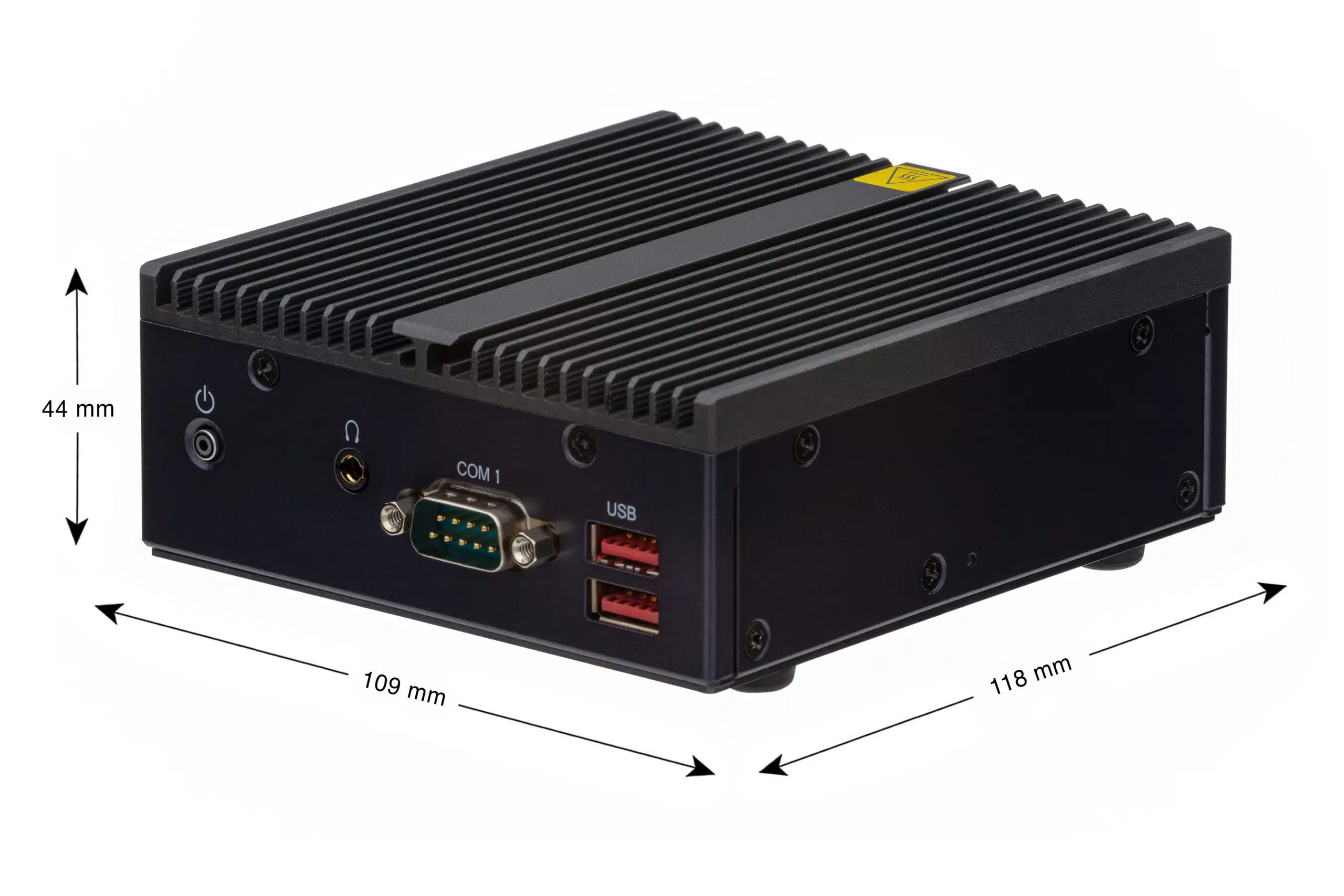

Compact design (44 x 118 x 109 mm)

Energy-efficient for cost-sensitive projects

Download data sheet

Frequently asked questions

Why is the BOX J6412 particularly energy-efficient?

The mini PC has a TDP of just 8 watts and is passively cooled. This makes it perfect for applications that require energy-efficient operation, e.g. digital signage or IoT installations in industrial environments.


How many screens can the BOX J6412 operate simultaneously?

Thanks to the two HDMI 2.0 outputs, content can be displayed on two screens simultaneously in 4K resolution (4096×2160 @ 60Hz).


What connection options are available?

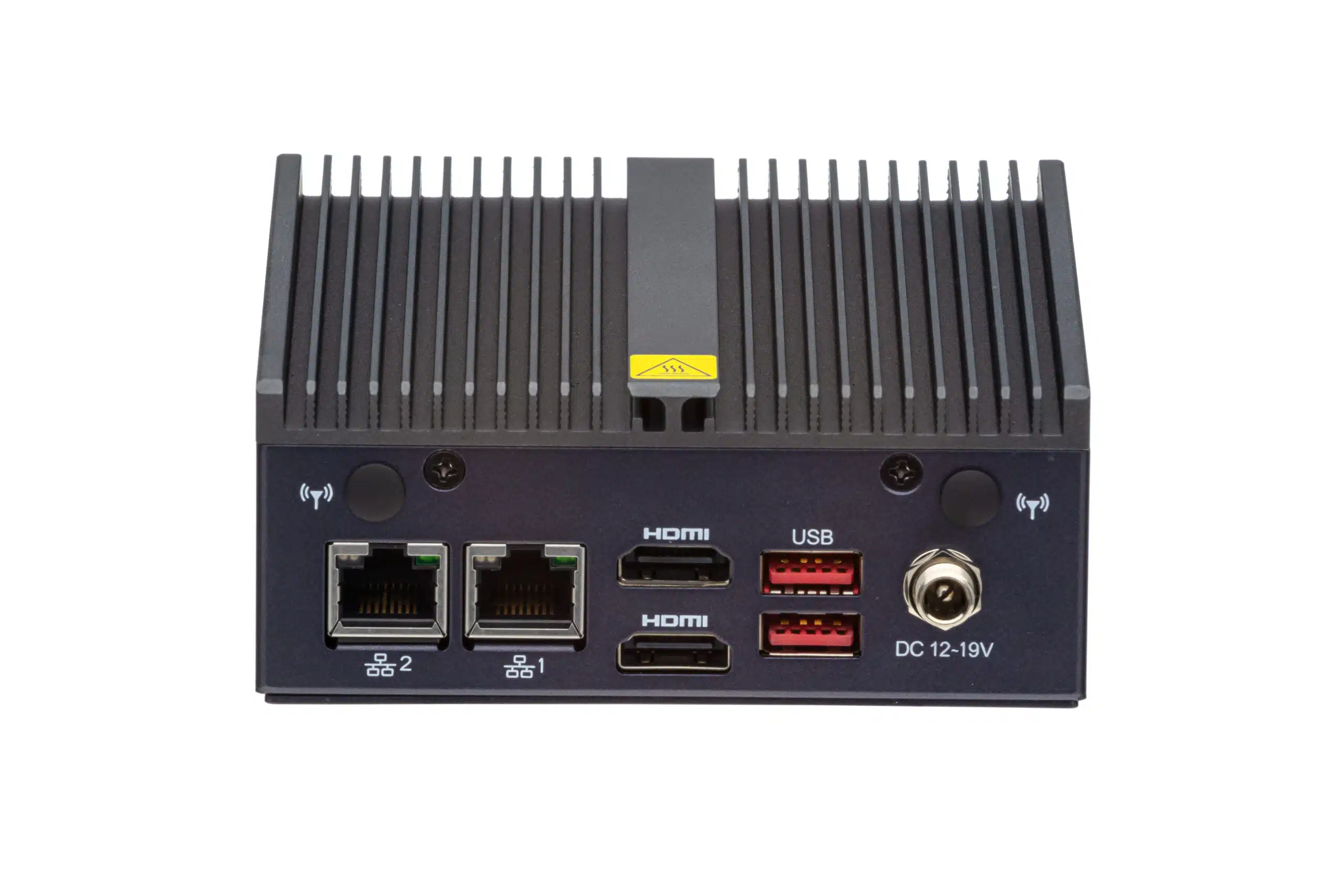

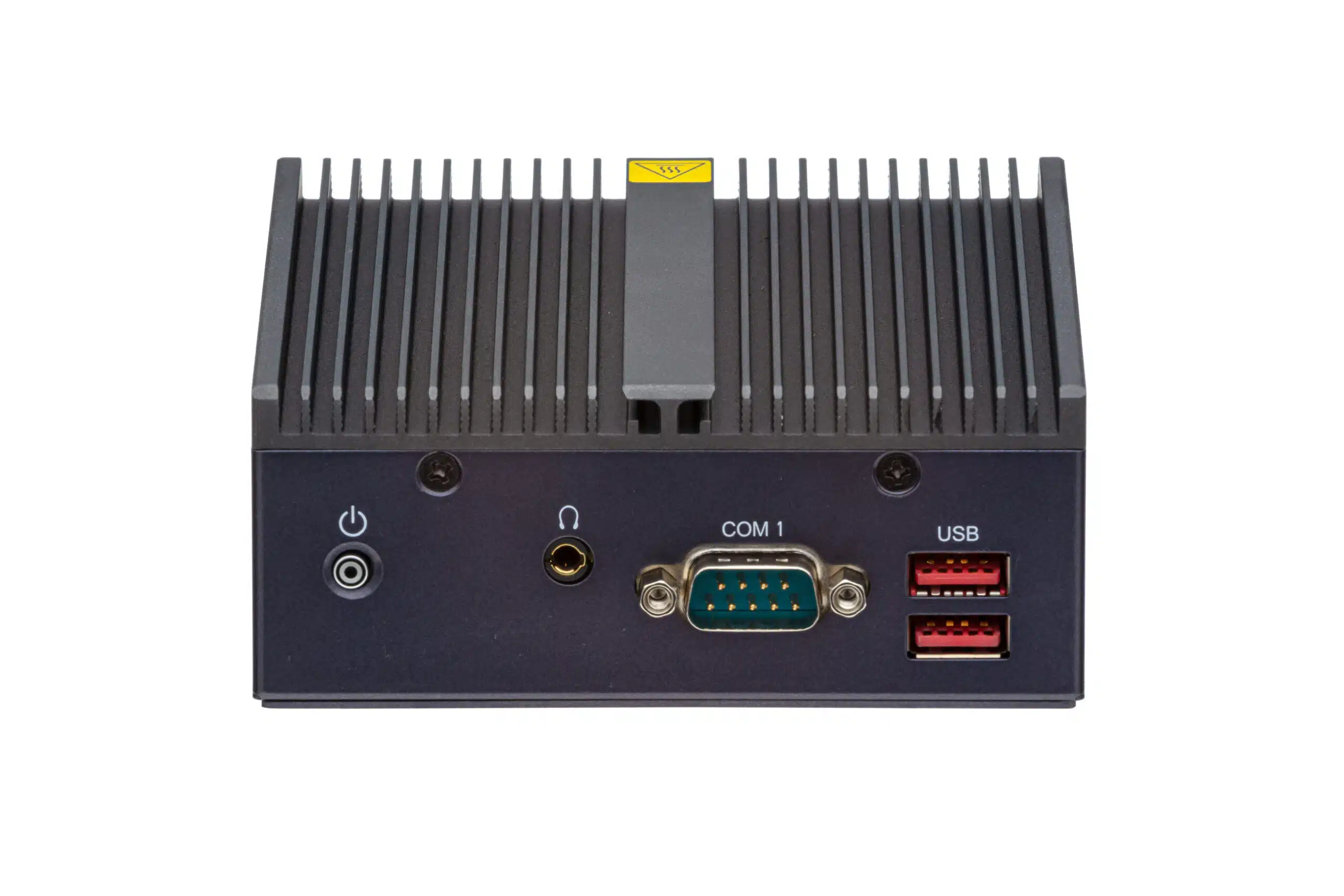

The BOX J6412 offers COM RS-232, 4x USB 3.2 Gen2x1, 2x Gigabit LAN and audio connector, so that it can be used flexibly for industrial, digital signage or HMI applications.


Is the BOX J6412 low-maintenance?

Yes, the passively cooled enclosure requires no fan maintenance, operates silently and is durable, making it ideal for continuous operation in industrial environments.


Discuss project now

Are you planning an industrial, automation or AI project and looking for a reliable industrial PC? Let’s work together to find the optimal solution for your requirements.
Receive offer
Download data sheet
  • Free advice
  • Individual solutions
  • Quick answer

You might also be interested in

Discover more Industrial PC solutions for various applications

QUADRO P1000

QUADRO P1000

  • Intel® Core™ i5-7300U, 2 x 2.6 GHz
  • Digital signage PC
  • 4 independent screens (HDMI)
  • 3x USB, 1x COM, 2x LAN
Learn more
WINDBOX III Ultra

WINDBOX III Ultra

  • Intel® Core™ i5-1335UE
  • Fanless all-rounder PC
  • Up to 4 independent displays
  • 5x USB, 2x COM, 2x LAN
Learn more
KUMO VI

KUMO VI

  • Intel® Core™ i5-11400H, 6x 2.7 GHz
  • Digital signage, virtual reality & AI
  • RTX 3060 GPU, 3840 CUDA cores
  • 5x USB, 2x HDMI, 2x DisplayPort
Learn more

Ultra-compact, energy-saving mini PC for digital signage and industry

The BOX J6412 is an extremely compact and energy-efficient mini PC that is ideal for industrial applications and digital signage. Measuring just 44 x 118 x 109 mm, it fits into any environment, even where space is at a premium. Powered by an Intel® Celeron® J6412 processor with up to 2.6 GHz, supported by Intel® UHD Graphics, it reliably processes content and applications at a TDP of just 8 watts. The passively cooled housing ensures silent operation and minimal maintenance, making the BOX J6412 particularly interesting for industrial installations and energy-efficient projects.
2X 4K VIDEO RESOLUTION
8 WATT TDP
FANLESS
INDUSTRY PC
Thanks to the two HDMI 2.0 outputs, content can be displayed simultaneously on two screens in 4K resolution (4096×2160 @ 60Hz), making it perfect for digital signage or multi-monitor setups. The BOX J6412 also offers numerous connections for versatile applications: COM RS-232 port, four USB 3.2 Gen2x1 ports, audio connector and two Gigabit LAN interfaces. This combination of compactness,…
