BOX C475 - Ultra-compact industrial PC

Compact & reliable for any environment

  • Fanless & low-maintenance – ideal for continuous operation
  • Intel® N100 for efficient performance
  • Dual 4K display via 2x HDMI 2.0
  • Modern connectivity with WiFi 6 & USB 3.2
Configure now
Download data sheet

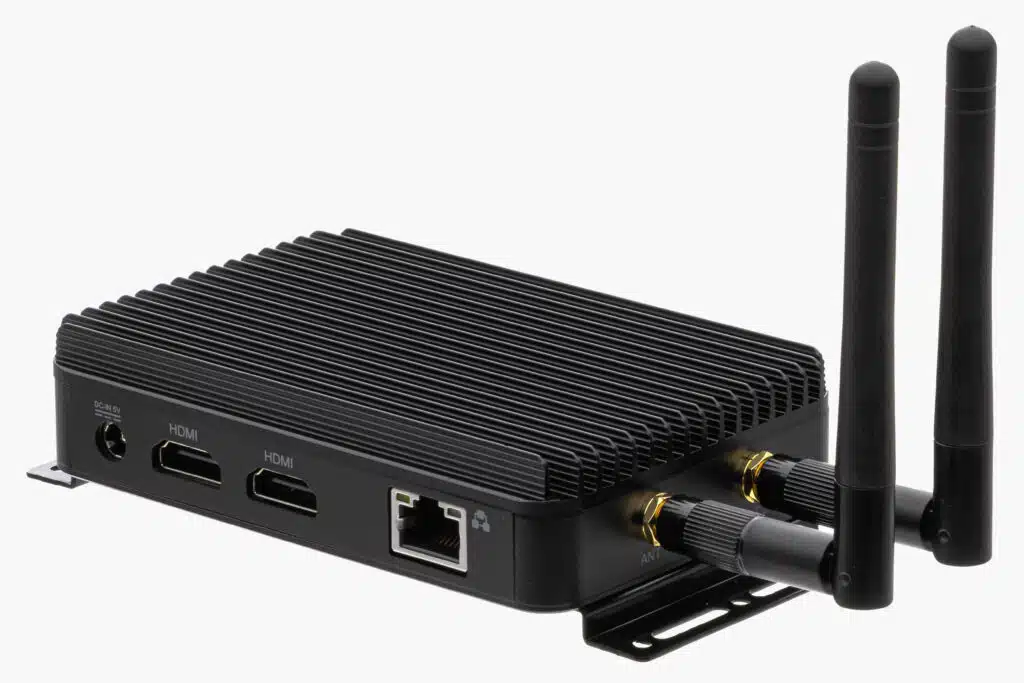

BOX C475
BOX C475 - Image 2
BOX C475 - Image 3
BOX C475 - Image 4
BOX C475 - Image 5
BOX C475 - Image 6
Industrie-PC

Industrial applications

temperatur

Erw. Temperature range

0°C to +40°C

Digital-Signage

Digital signage applications

luefterlos

Fanless PC

Passive cooling

Configure your system

Select the components for your individual requirements

Your configuration

Make a price inquiry
Request a test position
  • Im Lieferrückstand
  • Not available

Highlights at a glance

  • Processor

Intel® processor N100

4 cores with 3.4 GHz each

Intel® UHD Graphics (integrated)

Low power consumption



  • Memory

Onboard 8 GB LPDDR5/X RAM

128GB M.2 SSD

Fast data processing

Short loading and access times

  • Network

Gigabit LAN for stable connections

Supports WiFi 6

Bluetooth 5.2 for device connectivity

Ideal for IoT applications

  • Graphics & Display

Integrated Intel® UHD Graphics

2x HDMI 2.0

Dual-display operation possible

2x 4K@60Hz

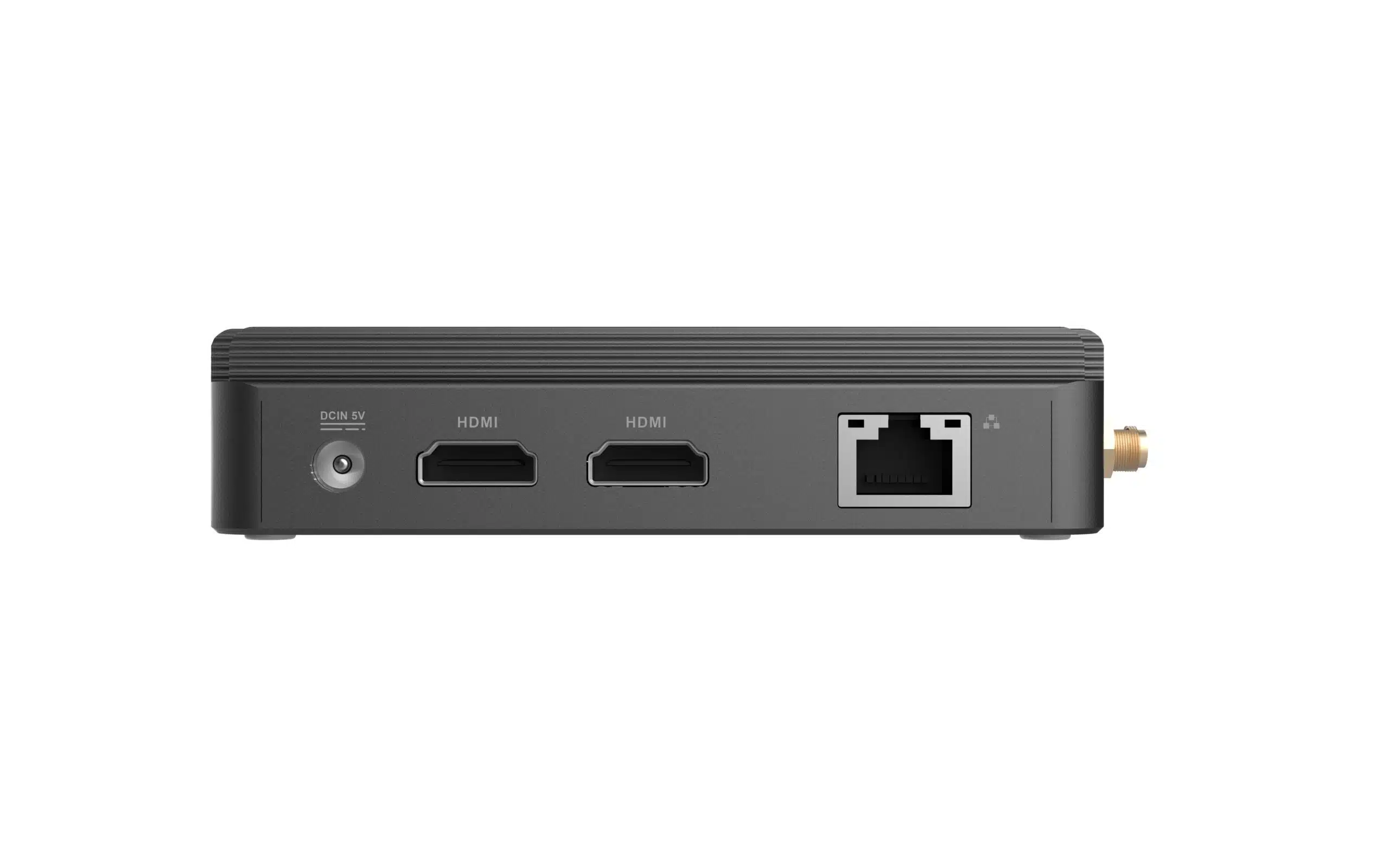

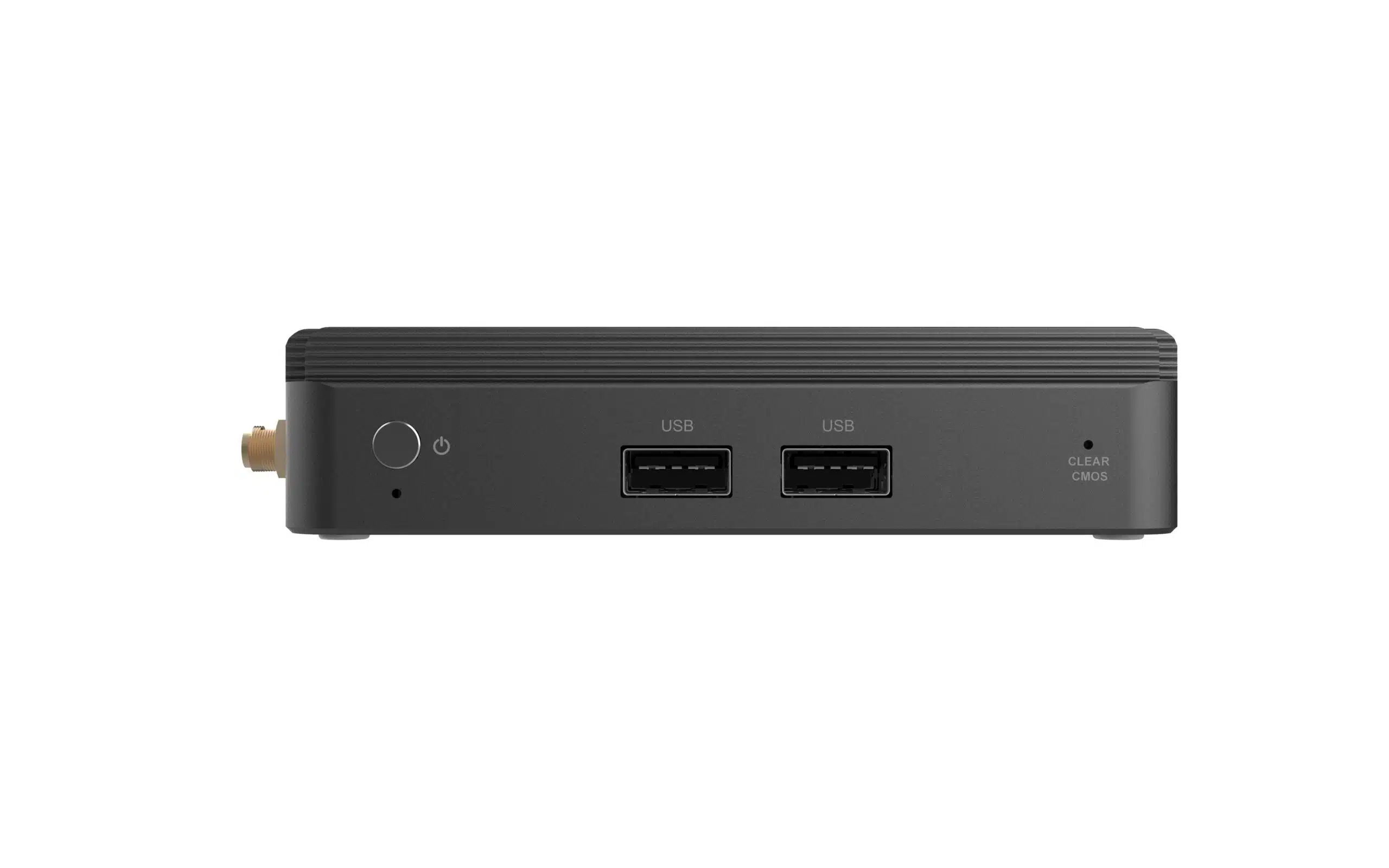

  • Connections

2x USB 3.2 Gen2x1

2x HDMI 2.0

LAN port for network

  • Industry standard

Fanless, robust design

Operation from 0 °C to +40 °C

Suitable for 24/7 use

Low-maintenance & durable

Download data sheet

Frequently asked questions

What is the difference to the BOX J6412?

Compared to the BOX J6412, the BOX C475 with the Intel® N100 offers a more modern processor architecture and better energy efficiency. It also supports newer technologies such as LPDDR5/X RAM, WiFi 6 and Bluetooth 5.2, making it more future-proof.


For which areas of application is the BOX C475 particularly suitable?

The BOX C475 is ideal for digital signage, kiosk systems, IoT gateways and edge computing applications. Its fanless operation makes it particularly suitable for noise-sensitive or difficult-to-access environments.


Does the BOX C475 support multiple displays simultaneously?

Yes, thanks to the two HDMI 2.0 connections, two displays with 4K resolution can be operated simultaneously – ideal for advertising or information systems.


How low-maintenance is the BOX C475?

Thanks to the passive cooling of the BOX C475, there are no moving parts that can wear out. This significantly reduces maintenance costs and also considerably increases the service life.


Discuss project now

Are you planning an industrial, automation or AI project and looking for a reliable industrial PC? Let’s work together to find the optimal solution for your requirements.
Receive offer
Download data sheet
  • Free advice
  • Individual solutions
  • Quick answer

You might also be interested in

Discover more Industrial PC solutions for various applications

QUADRO P1000

QUADRO P1000

  • Intel® Core™ i5-7300U, 2 x 2.6 GHz
  • Digital signage PC
  • 4 independent screens (HDMI)
  • 3x USB, 1x COM, 2x LAN
Learn more
WINDBOX III Ultra

WINDBOX III Ultra

  • Intel® Core™ i5-1335UE
  • Fanless all-rounder PC
  • Up to 4 independent displays
  • 5x USB, 2x COM, 2x LAN
Learn more
BOX J6412

BOX J6412

  • Intel® Celeron® J6412, 4x 2 GHz
  • Industrial PC & Digital Signage
  • Ultra-compact design
  • 2x LAN, 4x USB 3.2, 2x HDMI 2.0
Learn more

Compact mini PC for digital signage, IoT & industrial applications

The BOX C475 impresses as an ultra-compact, fanless mini PC that has been specially developed for reliable continuous operation. Thanks to passive cooling, the system operates silently and requires little maintenance – ideal for sensitive environments such as sales areas, kiosk systems or industrial control systems. The temperature range of 0 °C to +40 °C ensures stable performance even under changing conditions. Thanks to its robust design, the BOX C475 is ideally suited for use in professional environments where reliability is crucial.

FANLESS
INDUSTRY PC
Powered by the efficient Intel® N100 processor, the BOX C475 offers a balanced combination of performance and energy efficiency. With 8 GB LPDDR5/X RAM and support for fast NVMe SSDs, it ensures short loading times and smooth processes. Two HDMI 2.0 ports enable the simultaneous output of 4K content to two displays – perfect for modern digital signage solutions. The system is complemented…
