NEW: BOX J6412 – Ultra-compact PC for industry & digital signage

Power-saving industrial PC with 10 watt TDP

The BOX J6412 is equipped with a powerful Intel® Celeron® J6412 processor with up to 2.6 GHz on 4 cores. With support for up to 32GB RAM and an NVMe SSD of up to 2TB, even demanding applications can be mastered. Despite its high performance, the Mini-PC is extremely energy-efficient and has a TDP of just 10 watts. Thanks to the fanless housing and a temperature range of 0°C to +50°C, the system can also be used in dusty, damp or hot environments, such as production halls or in industry in general.

4K digital signage player

The Intel® Celeron® CPU comes with an integrated Intel® UHD graphics unit, which also enables digital signage applications. The two HDMI 2.0 ports on the back of the housing allow content to be played on up to two screens simultaneously. Naturally in a resolution of 4096x2160 @ 60Hz (4K).

Small housing, large variety of connections

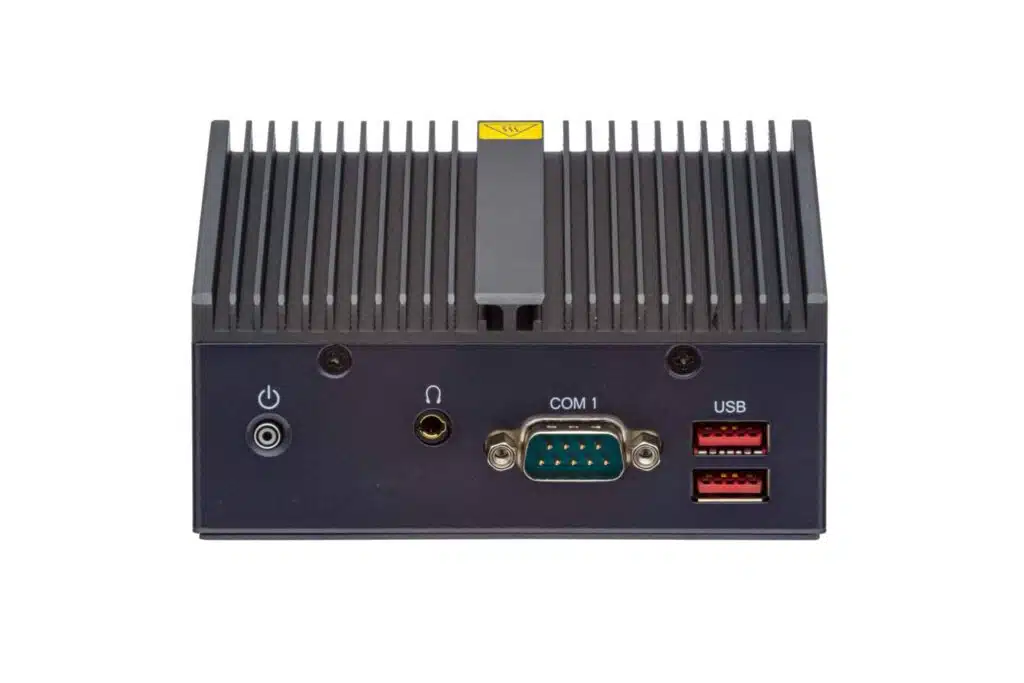

The main criterion for being allowed to call yourself a "BOX" is to have very small dimensions. With dimensions of just 118 x 109 x 44 mm (W x D x H) - which corresponds to a volume of just 0.9 liters - the BOX J6412 certainly meets this requirement.  Nevertheless, the housing has enough space for the most important interfaces. The power button, the audio connection (line-out), the COM RS232 and two of the four USB 3.2 Gen 2x1 ports are located on the front. The other two USB 3.2 ports, two Gigabit LAN ports and the two HDMI 2.0 ports are located on the back panel. Switching from the predecessor J4125 to the latest model is also child's play thanks to exactly the same dimensions.

Optional operating system and WiFi

The BOX J6412 has not only been upgraded in terms of CPU, but also in terms of the optional operating systems: On the one hand, the system can be equipped with Windows 11. Windows 10 IoT and Linux Ubuntu version 22.04.2 can also be installed. The option to expand the system with WiFi is also available here. There are 2 antenna connections on the housing for this purpose. A wall bracket is already included.

Highlights and technical data at a glance:

•     CPU: Intel® Celeron® J6412, 4x 2 GHz (up to 2.6 GHz)
•     GPU: Intel® UHD graphics
•     RAM: up to 32 GB DDR4
•     1x SSD: up to 2 TB NVMe
•     Max. Resolution: 4096x2160 @ 60Hz (4K) on 2 screens
•     Dimensions (W x D x H): 118 x 109 x 44 mm, including wall bracket
•     Ambient conditions: 0°C to +50°C at 10-90% non-condensing humidity

Connectors:

•     4x USB 3.2 Gen 2x1
•     2x HDMI 2.0
•     1x COM RS232
•     2x Gigabit LAN
•     1x audio connection (LINE-OUT)
•     WiFi optional
